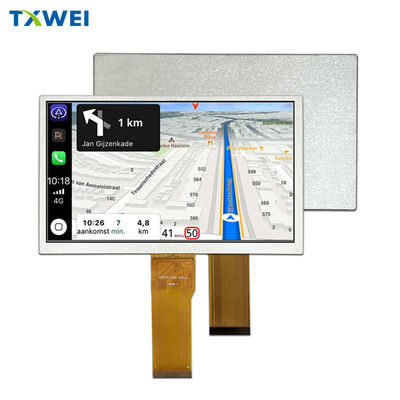

TXW700028N0 is a 7-inch 16:9 ratio full-color TFT LCD display with a resolution of up to 1024 * 600, IPS full view high-definition high brightness display effect, wide temperature range of -30+85 working temperature, and high brightness display of 800cd/m².
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.
This product is widely used in fields such as motorcycle instruments, car navigation, electric vehicle instruments, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, human-machine interface operation panels, etc.
With a brightness of 800cd/m², this TFT LCD Display Panel offers vivid and vibrant colors, providing you with a stunning visual experience.
The TFT LCD Screen is equipped with the advanced HX8282A11 IC/LCM Driver IC, which is known for its efficient power consumption and excellent image processing capabilities. This ensures smooth and high-quality display performance.
The TFT LCD Display Module has a total of 1024*3RGB(H)X600(V) pixels, providing a resolution that is crisp and clear. This means that every detail of your content will be displayed with precision and accuracy, ensuring an immersive viewing experience.
The TFT LCD Screen is a top-of-the-line display panel that offers superior performance and advanced features. With its high backlight current, brightness, advanced driver IC, pixel arrangement, and number of pixels, it is the perfect choice for a wide range of applications. Whether you need a TFT LCD Monitor Screen for gaming, multimedia, or industrial use, this product will meet all your display needs and exceed your expectations.
| ITEM | Sandard value | Unit |
| Model Number | TXW700028N0 | |
| size | 7.0 | Inch |
| LCD Type | Normally black | -- |
| Drive element | TFT active matrix | -- |
| Number of pixels | 1024*3RGB(H)X600(V) | Dots |
| Pixel arrangement | RGB stripe | -- |
| Pixel Pitch (W*H) | 0.1506*0.1432 | mm |
| Active area | 154.21(H) * 85.92(V) | mm |
| Mechanical OutlineSize(W*H*T) | 164.9*100*3.5 | mm |
| Viewing direction | ALL O’CLOCK | - |
| LCM Driver IC | HX8282A11 | - |
| LCM interface | RGB 24 Bit Interface | - |
| Lcm pin n count | 50 | |
| Backlight leds | 30 | pcs |
| Backlight current | 200-280 | mA |
| Backligh voltage | 8.9-10 | V |
| operating temperature | -30+85 | ℃ |
| storage temperature | -30+85 | ℃ |
| Lumens degrees | 800 | cd/㎡ |
The TFT LCD Screen from TXWEI is suitable for a variety of applications and can be used in many different industries. Some of the most common application scenes include:
There are many reasons why our TFT LCD Screen stands out from the competition. Here are just a few:
So why wait? Choose TXWEI TFT LCD Screen for your display needs and experience the difference it can make for your product or project. Contact us now to learn more or place your order.
