2.76-inch 480 * 480 RGB Round TFT LCD module with RGB 18 BIT interface

Products

2.76-inch 480 * 480 RGB Round TFT LCD module with RGB 18 BIT interface

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW276001B0-GP

Pixel Pitch (W*H):

0.1461*0.1461

Lumens Degrees:

550cd/m²

Size:

Number Of Pixels:

480*3RGB(H)X480(V)

LCD Type:

Normally Black

Active Area:

70.128

Highlight:

Custom VGA Driver Board

Circular VGA Driver Board

mipi lcd display 2.1 Inch

Product Description

2.76 Inch TFT LCD Display China Manufacturer Supplier, 2.76 Inch Round TFT LCD Module With 550 Nits Brightness

TXW276001B0-GP is a 2.76-inch circular full-color TFT LCD display screen with capacitive touch full fit, resolution 480 * 480, IPS full angle high-definition highlight display effect, wide temperature -30+80 working temperature, supporting customized display brightness, FPC structure, touch and backlight structure, supporting RGB565/666/888 and MIPI interface

Application

This product is widely used in smart appliances, kitchen appliances, instrument displays, security access control, children's education, medical equipment, automotive intelligent interconnection and other products

Product Advantages
1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3.Another verion for 2.76 inch, it can be operated at Wide Temperature of Top of -30℃ to +80℃
4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5.Low-cost solution among the same kinds in the LCD industry.
6.Easy to install and easy to maintain.

Product:	2.76" Inch Round IPS TFT LCD	Resolution:	480x480 Dots
Interface:	RGB 18 BIT	Operating Temp.:	-30℃ To +80℃
Storage Temp.:	-30℃ To +80℃	Viewing Direction:	All Viewing Angles (85/85/85/85)
Touch Screen:	YES	Driver IC:	ST7701S
Pin Number:	40 PINS	Touch screen structure	G+F
Touch Driver IC:	CST830	Touch Interface:	IIC
Lumens degrees:	550cd/m²	Compliance:	CE & FCC & RoHS Compliant

2.76 Inch TFT LCD Display China Manufacturer Supplier, 2.76 Inch Round TFT LCD Module With 550 Nits Brightness Product Drawing

2.76-inch 480 * 480 RGB Round TFT LCD module with RGB 18 BIT interface 0

2.76-inch 480 * 480 RGB Round TFT LCD module with RGB 18 BIT interface 1

Module Function Description

	Symbol	LCM Functional
1	LEDA	Power supply for backlight anode input terminal
2-3	LEDK	Power supply for backlight cathode input terminal.
4	GND	Power Ground
5	VCI 2.8V	Power Supply For LCD.
6	RESET 2.8V	Reset signal input terminal. Active at ‘L’.
7-8	NC	NC
9	SDA	Input/Output signal pin
10	SCLK	Serial clock signal.
11	CS	Chip select signal input pin
12	DCLK	Dot clock signal for RGB interface operation
13	DE	Data enable signal for RGB interface operation.
14	VSYNC	VSYNC Vertical (Frame) synchronizing input signal for RGB interface operation.
15	HSYNC	Horizontal (Line) synchronizing input signal for RGB interface operation.
16-33	DB0-DB17	RGB interface data bus.
34	GND	Power Ground
35	CTP_INT	Touch panel interrupt output
36	CTP_SDA	Touch panel I2C data
37	CTP_SCL	Touch panel I2C clock
38	CTP_RST	Touch panel reset
39	CTP_VCI	Touch panel Power supply 2.8~3.3V
40	GND	Power Ground

Absolute Maximum Rating

Characteristics	Symbol	Min.	Max.	Unit
LCM Operating Temperature	T_OPR	-20	+70	°C
LCM Storage Temperature	T_STG	-30	+80	°C
TP Operating Temperature & Humidity (20% ~ 90%RH)	T_OPR	-20	+70	°C
TP SStorage Temperature & Humidity (20% ~ 90%RH)	T_STG	-30	+80	°C
Humidity	RH	-	90	%

Back-Light Unit Characeristics

Characteristics	Symbol	Min.	Type	Max.	Unit	Notes
Forward Voltage	V_F	5.4	--	6.6	V	-
Forward current	I_F	--	80	-	mA	-
Luminance(With LCD+CTP)	Lv		TBD	--	cd/m²	-
LED life time	N/A	----	30,000	--	Hr	Note 1

Reliability Test Item

1	High Temp. Storage	+80°C / 96H	1. Functional test isOK. Missing Segment,short, unclear segment non-display, display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow.
2	Low Temp. Storage	-30°C / 96H
3	High Tempe. Operating	+70°C / 96H
4	Low Tempe. Operating	-20°C / 96H
5	High Temperature /Humidity storage	60°C x 90%RH / 96H
6	Thermal and cold shock	Static state, -20℃(30min) ~70℃ (30min),10 cycles

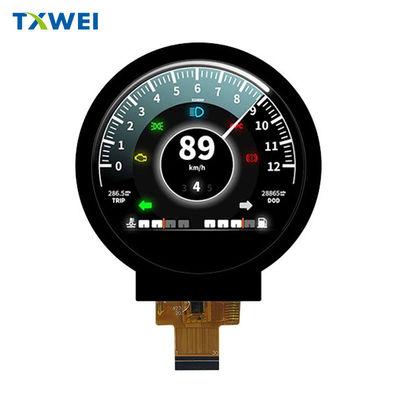

2.76 Inch TFT LCD Module With 550 Nits Brightness Product Image

2.76-inch 480 * 480 RGB Round TFT LCD module with RGB 18 BIT interface 2

2.76-inch 480 * 480 RGB Round TFT LCD module with RGB 18 BIT interface 3

Key Features

customizable Capacitive Touch Display: This touch panel uses capacitive technology to provide a highly responsive and accurate touch experience.
High Resolution: With a resolution of 480*3RGB(H)X480(V), this touch panel delivers clear and sharp images.
Multi-Touch Function: The panel supports multi-touch gestures for a more intuitive and efficient touch experience.
Widely Compatible: The touch panel is compatible with various operating systems, making it suitable for a variety of devices.
User-friendly Design: The panel is designed with the user in mind, with easy-to-use controls and intuitive interface.
Easy Installation: The touch panel can be easily installed and integrated into different devices and systems.
Durable Material: Made with high-quality materials, this touch panel is built to last and withstand frequent use.

Search keyword: tft 2.76, tft 2.76", 2.76 tft lcd, 2.76" tft lcd, 2.76 inch tft lcd, tft lcd 2.76, 2.76 tft display, 2.76" tft display, 2.76 inch tft display, tft display 2.76, tft display 2.76", 2.76 inch tft screen, 2.76" tft screen, 2.76 inch tft screen, tft screen 2.76 TFT screen 2.76 inch, TFT screen 2.76", 2.76 inch tft, 2.76" inch TFT lcd, 2.76" inch tft lcd screen, 2.76" tft screen, 2.76” inch tft lcd display, tft lcd display 2.76”
