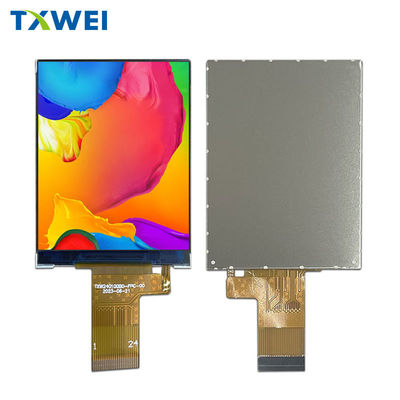

2.4 inch outdoor sunlight viewable LCD display

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW240100B0
Lcm Pin N Count:
24
Pixel Pitch (W*H):
42.72*58.65*2.35
Operating temperature:
-20+70
Pixel Arrangement:
RGB Stripe
Drive Element:
TFT Active Matrix
LCD Type:
Normally Black
Viewing Direction:
ALL O’CLOCK
Brightness:
600cd/m²
Highlight:

2.4 inch LCD display

,

Outdoor Sunlight Viewable LCD display

,

outdoor sunlight viewable LCD display

Product Description



TFT LCD Monitor Screen Overview
  1. TXW240100B0 is a 2.4-inch full-color TFT LCD display screen with a resolution of 240 * 320, IPS full angle high-definition and high brightness display effect, wide temperature -20+70 working temperature, and brightness of 600cd/m².
  2. This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, and a delivery yield rate of 99.7%, with professional after-sales service guarantee.
  3. This product is widely used in driving recorders, Bluetooth earphones, smart speakers, two wheeled vehicle dashboards, smart robots, medical instruments, automotive intelligent interconnection, handheld PDAs, household appliances and other products.

Features:

  • Product Name: TFT LCD Screen
  • Viewing direction: ALL O’CLOCK
  • Lcm pin n count: 24
  • Pixel arrangement: RGB Stripe
  • Operating temperature: -20+70
  • Brightness: 600cd/m²
  • TFT LCD Screen is a type of LCD TFT Display Panel with a viewing direction of ALL O’CLOCK and 24 Lcm pin n count.
  • The pixel arrangement is in RGB Stripe format, providing vibrant and accurate color display.
  • It has a wide operating temperature range of -20+70, making it suitable for various environments.
  • The screen has a high brightness level of 600cd/m², ensuring clear and sharp images even in well-lit areas.
  • TFT LCD Screen is the perfect choice for a reliable and high-quality LCD display, whether for industrial use or as a TFT LCD Monitor Screen for personal use.

Technical Parameters:

LCD TFT Display Panel TFT Screen Display
TFT Screen Display Panel TFT LCD Display
Pixel arrangement RGB Stripe
Brightness 600cd/m²
Operating temperature -20°C to +70°C
Number of pixels 240*320
Backlight current 80
Viewing direction ALL O’CLOCK
IC/LCM Driver IC ST7789V
Pixel Pitch (W*H) 42.72*58.65*2.35

Active area

36.72*48.96

LCM interface

MCU 8 BIT Interface


Applications:

The TFT LCD Screen by TXWEI is a high-quality display panel designed for various applications. It is commonly used in monitors, industrial equipment, and other electronic devices that require a clear and vibrant display. With its advanced technology and customizable features, it is the perfect choice for businesses and individuals looking for a reliable and high-performance LCD screen.



Key Features
  • TFT LCD Monitor Screen
  • TFT LCD Display Module
  • TFT LCD Panel
  • Color LCD Screen
  • Touch Screen
  • High Resolution Screen
  • Wide Viewing Angle
  • High Brightness
  • Energy Saving
  • Fast Response Time
  • Durable
  • Customizable



Product Specifications
  • Brand Name: TXWEI
  • Model Number: TXW240100B0
  • Place of Origin: Guangdong, China
  • Certification: CE, ROHS, FCC
  • Minimum Order Quantity: Negotiable
  • Price: Negotiable
  • Packaging Details: Cardboard
  • Delivery Time: 16 days
  • Payment Terms: L/C, TT, D/P
  • Supply Ability: 10000pcs
  • Operating Temperature: -20+70
  • Lcm Pin N Count: 24
  • LCD Type: Normally Black
  • Viewing Direction: ALL O’CLOCK
  • Pixel Arrangement: RGB Stripe



Certification: CE ROHS FCC
With the CE, ROHS, and FCC certifications, this TFT LCD Module is guaranteed to be safe, reliable, and environmentally friendly. These certifications also make it suitable for use in various countries and regions.
Minimum Order Quantity: Negotiate
As a customer-oriented company, TXWEI offers flexible minimum order quantities to cater to the needs of different clients. Whether you need a small or large quantity, we can negotiate and find a solution that works for you.
Price: Negotiate
The price of the TFT LCD Module is negotiable, depending on the quantity and other factors. We strive to provide competitive pricing without compromising on quality, making it a cost-effective solution for your business.
