| MOQ: | negotiate |
| Price: | negotiate |
| Standard Packaging: | cardboard |
| Delivery Period: | 16 |
| Payment Method: | L/C TT D/P |
| Supply Capacity: | 10000pcs |

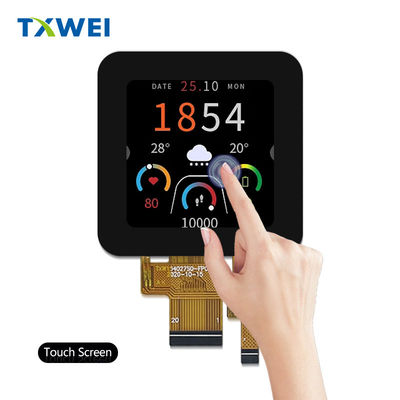

TXW154027S0-XH is a 1.54-inch square color TFT LCD display screen with capacitive touch full fit display, resolution of 240 * 240, IPS full view high-definition and high brightness display effect, wide temperature -20+70 working temperature, brightness of 400cd/m ².
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, and professional after-sales service guarantee.
This product is widely used in smart small household appliances, smart remote control, children's education, medical equipment, automotive intelligent interconnection and other products.
Overall, square TFT displays are a first-class display solution that provides high-quality performance and versatility. With its square and thin film display panels, it is very suitable for various applications, such as smart small home appliances, smart remote control, children's education, medical instruments, automotive intelligent interconnection and other products
Get your Square TFT Display today and experience the difference in display quality and performance!
The Square TFT Display by TXWEI is a high-quality display panel designed for a wide range of applications. With its brand name, model
number, and place of origin, this display offers reliability and superior performance. It has also been certified by CE, ROHS, and FCC,
ensuring that it meets international quality standards.
| ITEM | Sandard value | Unit |
| Model Number | TXW154027S0-XH | |
| size | 1.54 | Inch |
| LCD Type | Normally black | -- |
| Drive element | TFT active matrix | -- |
| Number of pixels | 240*3RGB(H)X240(V) | Dots |
| Pixel arrangement | RGB stripe | -- |
| Pixel Pitch (W*H) | 0.1155*0.1155 | mm |
| Active area | 27.72*27.72 | mm |
| Mechanical OutlineSize(W*H*T) | 38.12*38.12*2.46 | mm |
| Viewing direction | ALL O’CLOCK | - |
| LCM Driver IC | ST7789 | - |
| LCM interface | MCU 8 BIT Interface | - |
| Cover material | Asahi Glass Tempered Glass | |
| Touch screen structure | G+F | |
| Touch Driver IC | FT6236 | - |
| Touch Interface | IIC | |
| Laminating process | OCA full fit | |
| Lcm pin n count | 20 | |
| Backlight leds | 3 | pcs |
| Backlight current | 60 | mA |
| Backligh voltage | 2.8-3.3 | V |
| operating temperature | -20+70 | ℃ |
| storage temperature | -30+80 | ℃ |
| Lumens degrees | 400 | cd/㎡ |
At TXWEI, we understand that every customer has unique needs and requirements. That's why we offer a wide range of customization options for our Square LCD Display, Square Thin Film Display Panel, and Square TFT-LCD Monitor. Our experienced engineers will work closely with you to ensure that the final product meets your specifications and exceeds your expectations.
With over 10 years of experience in the display industry, TXWEI is a trusted name in the market. Our commitment to quality, innovation, and customer satisfaction sets us apart from the competition. We use only the highest quality materials and state-of-the-art technology to ensure that our products meet the highest standards.
Furthermore, our customization services allow us to tailor our products to fit your exact needs, giving you a unique and personalized display solution.
Thank you for considering TXWEI for your Square TFT Display needs. Contact us today to learn more about our customization services and how we can help you create the perfect display for your business.
