PRODUCTS DETAILS

Home > Products >

4.6 inch bar touch display 320 * 960 resolution 500nits LCD screen

Products

4.6 inch bar touch display 320 * 960 resolution 500nits LCD screen

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW460005A0-GP

Size:

Viewing Direction:

ALL O’CLOCK

LCM Interface:

MIPI 2 LANE BIT Interface

Lumens Degrees:

500cd/m²

Pixel Arrangement:

RGB Stripe

ITEM:

Sandard Value

Number Of Pixels:

320*960

Highlight:

320 * 960 Bar Touch Display

500nits Bar Touch Display

4.6 inch Bar Touch Display

Product Description

Bar Type TFT Product Overview

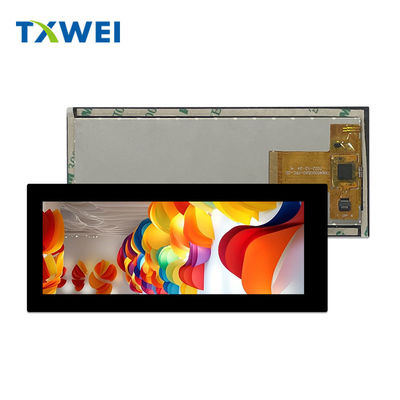

TXW460005A0-GP is a 4.58-inch full-color TFT strip capacitive touch LCD display screen with a resolution of 320 * 960, IPS full angle high-definition display effect, wide temperature range of -20+70 working temperatures, and brightness of 500cd/m ².

This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, and a delivery yield rate of 99.7%, with professional after-sales service guarantee.

This product is widely used in home appliance display panels, smart instrument product displays, medical infusion pump displays, energy storage power supply displays, smart audio displays, kitchen appliance displays, and more.

Features:

Product Name: Bar Type TFT
Pixel arrangement: RGB Stripe
LCD Type: TFT Active Matrix
LCM interface: MIPI 2 LANE BIT Interface
Pixel Pitch (W*H): 0.114.9*0.114.9
Lumens degrees: 500cd/m²
Hd Display
MIPI 2 LANE BIT Interface
Tft Lcd
Lcd Highlight Display
Lcd Highlight Display

Technical Parameters:

Technical Parameter	Value
Mechanical Outline Size (WHT)	50.49126.43.75
Pixel arrangement	RGB Stripe
Number of pixels	320*960
LCM interface	MIPI 2 LANE BIT Interface
LCD Type	TFT Active Matrix
Lumens degrees	500cd/m²
Active area	36.77*110.3
Mechanical OutlineSize(WHT)	50.49126.43.75
Viewing direction	ALL O’CLOCK
Size	4.58

High Brightness Liquid Crystal Display (LCD Highlight Display) with MIPI Interface

Customization:

Customized Service for Bar Type TFT - TXWEI

Brand Name: TXWEI

Model Number: TXW460005A0-GP

Place of Origin: Guangdong, China

Certification: CE, ROHS, FCC

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Cardboard

Delivery Time: 16 days

Payment Terms: L/C, TT, D/P

Supply Ability: 10000pcs

LCM interface: MIPI 2 LANE BIT Interface

Lumens degrees: 500cd/m²

Number of pixels: 320*960

Pixel arrangement: RGB Stripe

Viewing direction: ALL O'CLOCK

Product Features:

ITEM: Standard Value

Pixel arrangement: RGB Stripe

LCD Type: TFT Active Matrix

Mechanical OutlineSize(W*H*T): 50.49*126.4*3.75

Number of pixels: 320*960

Lcd Highlight Display: Provides a clear and bright display, perfect for showcasing images and videos.

Hd Display Mipi Interface Tft Lcd: Offers a high-definition display with a MIPI interface for a seamless connection.

High-brightness Lcd Display: With a high brightness level, this LCD display is perfect for outdoor use or in brightly-lit environments.

High Contrast Ratio: Produces vivid and sharp images with a high contrast ratio, making it ideal for multimedia and gaming.

Ultra-thin Design: With a thickness of only 3.75mm, this TFT LCD display can be easily integrated into various devices without adding

bulk.

High-resolution Display: The 320*960 pixel resolution ensures a clear and detailed display for all your content.

Easy Installation: With a simple and straightforward installation process, this bar type TFT display can be set up quickly and easily.

Wide Viewing Angle: The TFT active matrix technology allows for a wide viewing angle, ensuring that the display can be seen clearly from different perspectives.

High-definition Display: With a high-definition display, this TFT LCD is perfect for showcasing high-quality images and videos.
