| MOQ: | negotiate |
| Price: | negotiate |
| Standard Packaging: | cardboard |
| Delivery Period: | 16 days |
| Supply Capacity: | 10000pcs |

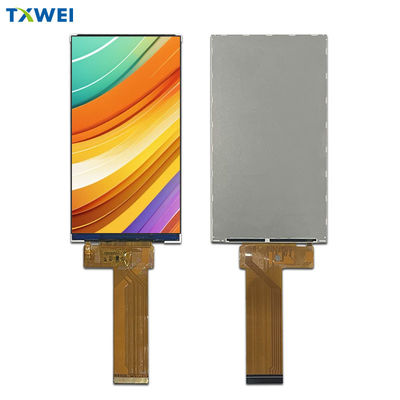

TXW500182B0 is a 5.0 inch 16:9 ratio full-color TFT LCD display screen with a resolution of up to 720*1280, IPS full angle high-definition and high brightness display effect, with a wide temperature range of -20+70 working temperatures. The high brightness display is 350cd/m²
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.
This product is widely used in payment devices, children's monitors, monitoring device displays, access control attendance devices, security devices, handheld devices, children's education display panels, etc.
Product Description:
Team Source Display model 5.0 inch TXW500182B0 is a high quality color TFT LCD panel with capacitive touch screen. This 5.0 inch
IPS LCD module was compose of LCD, backlight, driver circuit and FPC. The resolution of this 5.0 inch LCD panel is 720*1280, and
support connect by MIPI BIT interface and drive by JD9365DA driver IC.
The outline size of this TXW500182B0 is 65.4*119.3*1.8mm and the active area size is 62.1*110.4mm We support to custom the size
Product parameters:
| Type | 5.0 Inch TFT LCD Display |
| Model Number |
TXW500182B0 |
| resolution ratio |
720*1280 |
| Outline mm |
65.4*119.3*1.8mm |
| AA mm |
62.1*110.4mm |
| Interface |
MIPI BIT Interface |
| Luminance | 350cd/m² |
| Driver IC |
JD9365DA |
| Viewing Direction | All O'clock |
| TP/Lens | CTP |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Original Place | Dongguan, CN |
| Brand Name | TXWEI |
| Supply Ability | 1500000 per month |
| Customized | FPC, CTP/RTP, logo, color , size etc |
| Payment | T/T Paypal, WU, CC etc. |
| Color Depth | 16.7M |
| Size | 5 inch |
|
Lcm pin n count |
40 pin |
Company Profile:
Brand: Tianxianwei was founded in 2014, specializing in the research, development, manufacturing, production, and sales of matching solutions for 0.96-32-inch LCD TFT full-color LCD screens, capacitive touch screens. The factory is located in Shenzhen, China, with a factory area of over 3000 square meters.
Pre-sales service:
1.Our team design and make solutions based on different requirements from different customers.
2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.
After-sales services:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We have professional engineer customer to keep fastly reply.
Our Certificates:
The Tianxianwei factory has passed certifications such as ISO9001, ISO14001, IATF16949, etc. Please feel free to contact us for more certifications
Product Applications:
Our TFT liquid crystal displays are mainly used in communication equipment, consumer electronics, industrial applications, office automation, smart applications, automobiles, IT products, medical applications and other fields. Wherever there is a demand for LCD, our products can be used.
The TFT LCD Module is a customizable product, allowing users to adjust various display parameters according to their specific needs. This makes it a popular choice for custom tft display designs. The product also offers high brightness and contrast, making it suitable for use in both indoor and outdoor environments.
TXWEI, as one of the leading tft display manufacturers, ensures that their products are of the highest quality. They have a minimum order quantity requirement that can be negotiated, and the price can also be discussed depending on the order quantity. The packaging details include a sturdy cardboard box, ensuring safe transportation of the product.
