| MOQ: | negotiate |
| Price: | negotiate |
| Standard Packaging: | cardboard |
| Delivery Period: | 16 |
| Payment Method: | L/C TT D/P |
| Supply Capacity: | 10000pcs |
10.1 inch MIPI TFT Display Module Description
TXW100047N0-TC is a 10.1-inch 16:9 ratio full-color TFT touch LCD display screen with a resolution of up to 1200 * 1920, IPS full view high-definition high brightness display effect, wide temperature range of -20+70 working temperature, and high brightness display of 350cd/m ².
The touch screen structure of the 10.1 Inch LCD Display Module is G+G, which provides a responsive and accurate touch experience. The touch screen is durable and can withstand frequent use without losing its sensitivity. This makes it ideal for applications that require frequent user interaction such as gaming consoles, ATMs, and point-of-sale systems.
The 10.1 Inch LCD Display Module operates at a voltage of 24V, which makes it compatible with a wide range of electronic devices. The display is easy to install and can be integrated into existing systems with ease. It is also energy-efficient, which helps to reduce power consumption and lower operating costs.
The 10.1 Inch LCD Display Module has a storage temperature of -20+70 degrees, which makes it suitable for use in harsh environments. The display can withstand extreme temperatures and is resistant to damage from exposure to the elements. This makes it ideal for use in outdoor applications such as digital signage and kiosks.
The Lumens degrees of the 10.1 Inch LCD Display Module are 350cd/m², which provides a bright and clear image. The display has a high contrast ratio and a wide viewing angle, which ensures that the image is visible from all angles. This makes it ideal for use in applications such as medical devices, aviation displays, and industrial control systems.
| Product Name: | 10.1 Inch TFT LCD Display Module |
| Model Number: | TXW100047N0-TC |
| Cover Glass Dimension: | ODM Customizable |
| Mechanical Outline Size(W*H*T): | 151.70(W) x 247.60(H) x 4.21(T) mm |
| LCD Interface: | MIPI Interface |
| Touch Screen Structure: | G+G |
| Active Area: | 135.36(H) x 216.58(V) mm |
| Voltage: | 24V |
| Luminance: | 350 cd/m² |
| Operating Temperature: | -10°C to +60°C |
| Storage Temperature: | -20°C to +70°C |
This product is widely used in industrial control panels, payment products, security access control, instrumentation, medical equipment, smart homes, robots and other fields.
TFT features:
Structure:TFT PANNEL+IC +FPC+BL+CTP
ALL Viewing Type LCD
1200 dot-segment and 1920 dot-common outputs
16.7M Color can be selected by software
White LED back light
4lane MIPI interface
10.1 inch LVDS TFT Display Module Drawing
Absolute Maximum Rating

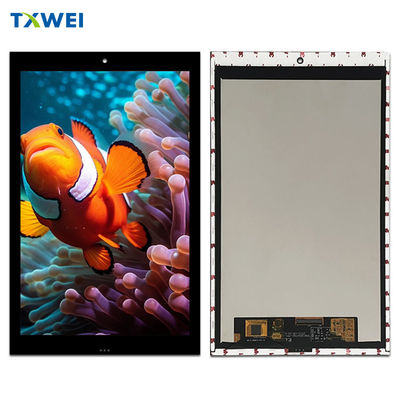

10.1 inch MIPI TFT Display Module Real Product photos
Search keyword: tft 10.1", 10.1 tft lcd, 10.1" tft lcd,10.1 inch tft lcd, tft lcd 10.1, 10.1 tft display, 10.1" tft display, 10.1 inch tft display, tft display 10.1 inch, tft display 10.1", 10.1 inch tft lcd display
