| MOQ: | negotiate |
| Price: | negotiate |
| Standard Packaging: | cardboard |
| Delivery Period: | 16 |
| Payment Method: | L/C TT D/P |
| Supply Capacity: | 10000pcs |

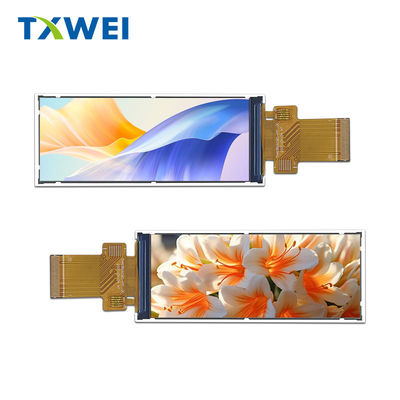

TXW286001B0 is a 2.86-inch full-color TFT LCD display screen with a resolution of 376 * 960, IPS full view high-definition display effect, wide temperature range of -20+70 working temperature, and brightness of 350cd/m ².
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.
This product is widely used in reading pens, smart musical instruments, water purifiers, coffee makers, ovens, speakers, handheld devices, and other products
| ITEM | Sandard value | Unit |
| Model Number | TXW286001B0 | |
| size | 2.86 | Inch |
| LCD Type | Normally black | -- |
| Drive element | TFT active matrix | -- |
| Number of pixels | 480*3RGB(H)X640(V) | Dots |
| Pixel arrangement | RGB stripe | -- |
| Pixel Pitch (W*H) | 0.0235*0.0705 | mm |
| Active area | 26.508*67.68 | mm |
| Mechanical OutlineSize(W*H*T) | 31.2*76.2*2.05 | mm |
| Viewing direction | ALL O’CLOCK | - |
| LCM Driver IC | ST7701S | - |
| LCM interface | MIPI BIT Interface | - |
| Lcm pin n count | 30 | |
| Backlight leds | 4 | pcs |
| Backlight current | 80 | mA |
| Backligh voltage | 2.8-3.3 | V |
| operating temperature | -20+70 | ℃ |
| storage temperature | -30+80 | ℃ |
| Lumens degrees | 350 | cd/㎡ |
The TXWEI TFT LCD Screen is the perfect display solution for a wide range of applications and scenarios. Its superior technology and advanced features make it ideal for:
With its top-of-the-line specifications and wide range of applications, the TXWEI TFT LCD Screen is the ultimate display solution for all your needs. So why wait? Get your hands on this cutting-edge technology and experience the best display performance today!
|
|
