| MOQ: | negotiate |
| Price: | negotiate |
| Standard Packaging: | cardboard |
| Delivery Period: | 16 |
| Payment Method: | L/C TT D/P |
| Supply Capacity: | 10000pcs |

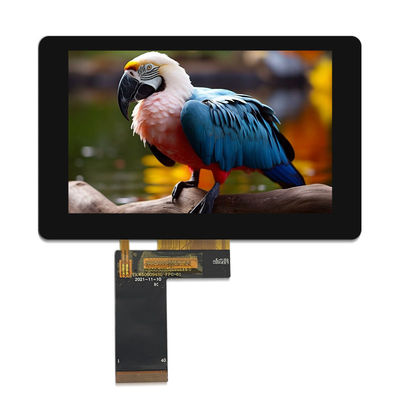

TXW500094S0 is a 5.0-inch 16:9 ratio full-color TFT LCD display with a resolution of up to 800 * 480, IPS full view high-definition high brightness display effect, wide temperature range of -30+85 working temperature, vibration experiment of 10G, high brightness display of 1500cd/m².
The TFT LCD Module is designed with the latest technology, making it a normally black display. This means that the display remains black when there is no power supply, providing a sleek and modern appearance.
The TFT LCD Module boasts a high resolution of 800*3RGB (H)X480 (V) pixels, providing sharp and clear images. With this high pixel density, it offers a vibrant and immersive viewing experience.
The TFT LCD Module is designed to be compact and versatile, with a size of 5.0 inches. This makes it perfect for a wide range of applications, from handheld devices to large display screens.
The TFT LCD Module utilizes the TFT Active Matrix technology, which offers fast response times and exceptional image quality. This advanced technology ensures that the display remains stable and consistent, even in demanding environments.
This product is widely used in outdoor high brightness equipment display, electric vehicle dashboard, motorcycle dashboard display, refrigeration monitoring equipment display, etc.
At TFT LCD Module, we understand that every project has unique requirements. That's why we offer customizable options for our TFT displays, including different sizes, resolutions, and interfaces. Our team of experts will work closely with you to create a custom TFT display that meets your specific needs.
In summary, the TFT LCD Module is a cutting-edge display solution that offers superior performance, advanced technology, and customizable options. With its sleek design and exceptional visual experience, it is the perfect choice for a wide range of applications. Choose TFT LCD Module for your display needs and experience the difference it can make.
| ITEM | Sandard value | Unit |
| Model Number | TXW500094S0 | |
| size | 5.0 | Inch |
| LCD Type | Normally black | -- |
| Drive element | TFT active matrix | -- |
| Number of pixels | 800*3RGB(H)X480(V) | Dots |
| Pixel arrangement | RGB stripe | -- |
| Pixel Pitch (W*H) | 0.135*0.135 | mm |
| Active area | 108(H) * 64.8(V) | mm |
| Mechanical OutlineSize(W*H*T) | 120.7*75.8*2.8 | mm |
| Viewing direction | ALL O’CLOCK | - |
| LCM Driver IC | ST7262 | - |
| LCM interface | RGB 24 BIT Interface | - |
| Lcm pin n count | 40 | |
| Backlight leds | 18 | pcs |
| Backlight current | 120 | mA |
| Backligh voltage | 16.8 | V |
| operating temperature | -30+85 | ℃ |
| storage temperature | -30+85 | ℃ |
| Lumens degrees | 1500 | cd/㎡ |
TXWEI TFT LCD Module is a high-quality, reliable and versatile display solution for a wide range of applications. With its advanced technology and superior performance, it has become a popular choice among customers worldwide.
The TXWEI TFT LCD Module is suitable for various applications, including:
Video
Video
Video
Video
|
|
