| MOQ: | 1 |
| Standard Packaging: | cardboard |
| Delivery Period: | 16 |
| Supply Capacity: | 10000pcs |

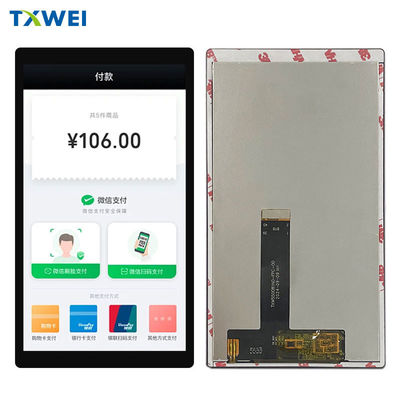

TXW550076N0-CTP is a 5.5-inch 16:9 ratio full-color TFT LCD display screen with a resolution of up to 1080 * 1920, IPS full view high-definition high brightness display effect, wide temperature range of -20+60 working temperature, and high brightness display of 1100cd/m².
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.
This product is widely used in gaming consoles, outdoor handheld PDAs, photography equipment, instruments, unmanned aerial vehicle flight control and other fields.
The TFT LCD Display is a versatile and high-performance display screen that offers superior image quality and efficient performance. Its compact size, high pixel pitch, and use of advanced IC/LCM driver IC make it a popular choice for various applications. With its model number TXW550076N0-CTP, it is easy to identify and order, making it a preferred choice for manufacturers and developers.
| ITEM | Sandard value | Unit |
| Model Number |
TXW550076N0-CTP |
|
| size | 5.5 | Inch |
| LCD Type | Normally black | -- |
| Drive element | TFT active matrix | -- |
| Number of pixels | 1080*3RGB(H)X1920(V) | Dots |
| Pixel arrangement | RGB stripe | -- |
| Pixel Pitch (W*H) |
0.06345(H) *0.06345(V) |
mm |
| Active area | 68.04(H) * 120.96(V) | mm |
| Mechanical OutlineSize(W*H*T) |
72.52(W) ×132.90(H) ×2.56(T) |
mm |
| Viewing direction | ALL O’CLOCK | - |
| LCM Driver IC |
HX83112-A |
- |
| LCM interface | MIPI Interface | - |
| Cover material | Asahi Glass Tempered Glass | |
| Touch screen structure |
Incell |
|
| Touch Interface | IIC | |
| Laminating process | OCA full fit | |
| Lcm pin n count | 40 | |
| Backlight leds | 16 | pcs |
| Backlight current | 80 | mA |
| Backligh voltage |
11.2-12.8 |
V |
| operating temperature | -20+60 | ℃ |
| storage temperature | -30+70 | ℃ |
| Lumens degrees | 700 | cd/㎡ |
The TXWEI TFT LCD Display boasts a high brightness screen that ensures clear and vivid images even in bright environments. This makes it the perfect choice for outdoor applications, such as digital signage, advertising displays, and interactive kiosks.
With its Arduino compatibility, the TXW550076N0-CTP can easily be integrated into your projects. Its plug-and-play design makes it convenient to use, saving you time and effort in setting up your display.
Featuring a 5.5 inch TFT LCD display screen, the TXWEI display offers a large and clear viewing area. Its high resolution of 1080*3RGB(H)X1920(V) ensures sharp and detailed images, making it suitable for a wide range of applications.
The TXW550076N0-CTP comes with a touch screen feature, allowing for easy navigation and interaction with your display. With its responsive touch technology, you can create engaging and interactive displays for your projects.
Not only does the TXWEI TFT LCD Display offer touch screen capabilities, but it also boasts a TFT LCD touch screen display. This combination provides users with a seamless and intuitive user experience
At TXWEI, we prioritize quality and performance. That's why our TXW550076N0-CTPTFT LCD Display is CE, ROHS, and FCC certified. This ensures that our product meets the highest standards of safety, quality, and performance.
With a minimum order quantity of just 1, the TXWEI TFT LCD Display is suitable for both small and large projects. Its packaging in cardboard ensures safe and secure delivery, while its short delivery time of just 16 days ensures that you get your product in a timely manner.
Whether you're a hobbyist, engineer or business owner, the TXWEI TFT LCD Display is the perfect solution for your display needs. With its high brightness, touch screen, and compatibility with Arduino, it offers endless possibilities for your projects. Upgrade your display today and experience the superior quality and performance of TXWEI products.
