| MOQ: | negotiate |
| Price: | negotiate |
| Standard Packaging: | cardboard |
| Delivery Period: | 16 |
| Payment Method: | L/C TT D/P |
| Supply Capacity: | 10000pcs |

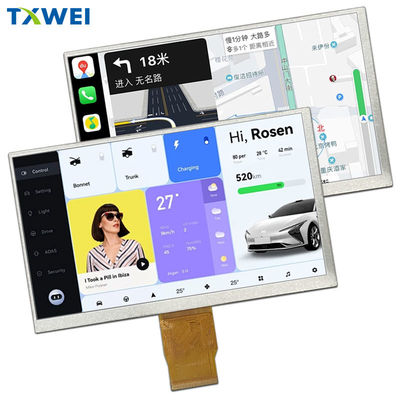

TXW700076N0 is a 7-inch 16:9 ratio full-color TFT LCD display with a resolution of up to 1024 * 600, IPS full view high-definition high brightness display effect, wide temperature range of -30+85 working temperature, and high brightness display of 450cd/m².
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.
This product is widely used in fields such as motorcycle instruments, car navigation, electric vehicle instruments, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, human-machine interface operation panels, etc.
The TFT LCD Screen is equipped with a Normally Black LCD type, which is a type of liquid crystal display where the pixels are normally in a dark state when no voltage is applied. This ensures a high contrast ratio and allows for a wider range of colors to be displayed. The operating temperature range for this screen is -30 to +85 degrees Celsius, making it suitable for use in various environments.
One of the main features of the TFT LCD Screen is its wide viewing angle. The screen has an ALL O’CLOCK viewing direction, meaning it can be viewed from any angle without any distortion or loss of image quality. This is made possible by the use of In-Plane Switching (IPS) technology, which provides a wider range of viewing angles compared to traditional LCD screens.
The LCM interface for the TFT LCD Screen is a RGB 24 Bit Interface, which allows for the display of 16.7 million colors. This interface is widely used in electronic devices and provides a high-speed data transfer rate, ensuring smooth and seamless display performance.
In conclusion, the TFT LCD Screen is a top-of-the-line display technology that offers high resolution, full color display, wide viewing angle, and a wide operating temperature range. Its use of IPS technology and RGB 24 Bit Interface makes it a popular choice for electronic devices that require a high-quality display. With its advanced features and superior performance, the TFT LCD Screen is a must-have for any modern electronic device.
| Product Attribute | Technical Parameter |
|---|---|
| TFT LCD Monitor Screen | TFT Screen Display |
| Pixel Arrangement | RGB Stripe |
| Viewing Direction | ALL O'CLOCK |
| Number of Pixels | 1024*3RGB(H)X600(V) |
| Lcm Pin N Count | 50 |
| IC/LCM Driver IC | HX8282A11 |
| Pixel Pitch (W*H) | 0.1506*0.1432 |
| LCD Type | Normally Black |
| Brightness | 450cd/m² |
| Backlight Current | 200mA |
| Operating Temperature | -20+70 |
The TFT LCD Screen by TXWEI is a high-quality display module that is perfect for a variety of applications. With its advanced technology and superior design, this product is suitable for use in a wide range of industries and scenarios.
The TXWEI TFT LCD Screen offers a high-resolution display with 1024*3RGB(H)X600(V) pixels, providing clear and sharp images. Its TFT Active Matrix drive element ensures fast response times and smooth graphics, making it ideal for applications that require quick and dynamic displays.
With a viewing direction of ALL O’CLOCK, this TFT LCD Screen offers a wide viewing angle, making it suitable for group presentations and shared viewing experiences. The pixel pitch of 0.1506*0.1432 also ensures that images and text appear crisp and legible.
The TXWEI TFT LCD Screen is not only technologically advanced, but it is also durable and reliable. It is certified with CE, ROHS, and FCC, ensuring its compliance with international standards. The product is also designed to have a long lifespan and can withstand various environmental conditions.
Whether you are looking for a display module for your computer, industrial equipment, or home entertainment system, the TXWEI TFT LCD Screen is a versatile and high-quality choice. With its superior technology, advanced features, and reliable performance, it is the perfect solution for all your display needs.
Video
Video
Video
Video
Video
Video
Video
Video
Video
Video
|
|
