| MOQ: | negotiate |
| Price: | negotiate |
| Standard Packaging: | cardboard |
| Delivery Period: | 16 |
| Payment Method: | L/C TT D/P |
| Supply Capacity: | 10000pcs |

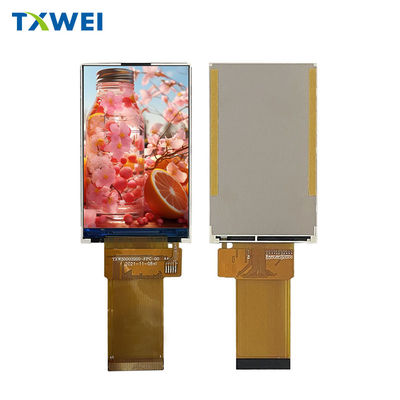

TXW300039S0 is a 3.0-inch full-color TFT LCD display screen with a resolution of 240 * 400, EWV ultra wide viewing angle high-definition display effect, wide temperature range of -20+70 working temperature, and brightness of 300cd/m².
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.
This product is widely used in medical displays, home appliance displays, car displays, industrial control displays, handheld device displays, and other products.
The 3 Inch LCD Panel is a high-quality display screen that offers excellent visual performance. Its compact size and advanced features make it suitable for a wide range of applications, including smartphones, handheld devices, and medical equipment.
The active area of the 3 Inch LCD Panel is 38.88*64.8mm, providing a compact yet spacious display that is perfect for small devices. This allows for a high resolution and a clear display of images and videos, making it suitable for various applications.
In summary, the 3 Inch LCD Panel is a top-quality display screen that offers advanced features and superior performance. Its TFT Active Matrix drive element, RGB Stripe pixel arrangement, and Normally White LCD type make it a versatile and efficient choice for a wide range of applications. With its model number TXW300039S0 and active area of 38.88*64.8mm, this LCD panel is a reliable and compact solution for your display needs.
| ITEM | Sandard value | Unit |
| Model Number | TXW300039S0 | |
| size | 3.0 | Inch |
| LCD Type | Normally black | -- |
| Drive element | TFT active matrix | -- |
| Number of pixels | 240*3RGB(H)X400(V) | Dots |
| Pixel arrangement | RGB stripe | -- |
| Pixel Pitch (W*H) | 0.162*0.162 | mm |
| Active area | 38.88*64.8 | mm |
| Mechanical OutlineSize(W*H*T) | 45.04*77*2.54 | mm |
| Viewing direction | ALL O’CLOCK | - |
| LCM Driver IC | ILI9327 | - |
| LCM interface | SPI3/4 BIT OR MCU8/9/16/18 BIT Interface | - |
| Lcm pin n count | 40 | |
| Backlight leds | 4 | pcs |
| Backlight current | 80 | mA |
| Backligh voltage | 2.8-3.3 | V |
| operating temperature | -20+70 | ℃ |
| storage temperature | -30+80 | ℃ |
| Lumens degrees | 300 | cd/㎡ |
With a brightness of 300 Cd/m², the TXWEI 3 Inch LCD is suitable for both indoor and outdoor use. Whether it's in a brightly lit room or under direct sunlight, this LCD screen will provide clear and crisp images, making it ideal for various applications.
The TXWEI 3 Inch LCD comes with a pixel arrangement of RGB Stripe, providing a wider color gamut and better color accuracy. This allows for more versatility in displaying different types of content, such as photos, videos, and graphics. Additionally, with a size of 3.0 inches, this LCD screen can easily be integrated into various devices and systems.
As a trusted brand in the market, TXWEI takes pride in providing high-quality products. The 3 Inch LCD carries certifications such as CE, ROHS, and FCC, ensuring that it meets international standards for safety and quality.
TXWEI offers flexible terms for ordering and delivery. The Minimum Order Quantity can be negotiated, and prices can also be discussed. The packaging for the 3 Inch LCD is done using cardboard, ensuring its safety during transportation. With a supply ability of 10000pcs, rest assured that your orders will be fulfilled in a timely manner.
The TXWEI 3 Inch LCD is a top-of-the-line product that offers high-quality, durability, and versatility. With its advanced features and certifications, it is the perfect solution for your display needs. So whether you need a 3 Inch LCD Screen, 3 Inch LCD Touchscreen, or 3 Inch LCD Module, choose TXWEI for a reliable and exceptional experience.
