2.1-inch 480*480 intelligent knob switch touch screen RGB interface

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW210001B0-CTP
Pixel Arrangement:
RGB Stripe
Active Area:
0.108
Operating temperature:
-20+70
Drive Element:
TFT Active Matrix
LCD Type:
Normally Black
Number Of Pixels:
480*3RGB(H)X480(V)
Lumens Degrees:
400Cd/m²
Highlight:

2.1 Inch lcd display module

,

454 X 454 lcd display module

,

AMOLED LCD Ultra thin Display

Product Description

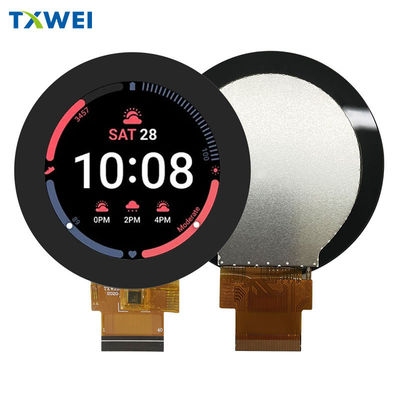

TFT LCD Module - TXW210001B0-CTP
  • TXW210001B0-CTP is a 2.1-inch circular full-color TFT LCD display screen with capacitive touch full lamination, resolution of 480 * 480, IPS full view high-definition high brightness display effect, wide temperature range of -20+70 working temperature, brightness of 400cd/m².



  • This product is independently designed, developed and produced by Shenzhen Tianxianwei Technology Co., Ltd., providing professional full process technical support services, first-class production quality control, and professional after-sales service guarantee.



  • This product is widely used in smart home appliances, smart remote controls, smart rotary switches, children's education, medical equipment, automotive intelligent interconnection and other products.



  • The TFT LCD Module TXW210001B0-CTP is a cutting-edge display panel that offers high-quality visuals and advanced features. It is the perfect choice for a wide range of applications, including consumer electronics, industrial equipment, and automotive displays.



  • The TXW210001B0-CTP measures 2.1 inches in size, making it compact yet functional for various devices. Its compact size makes it suitable for space-constrained applications while still delivering excellent performance.



  • The TFT LCD Module features an RGB Stripe pixel arrangement, which ensures a high level of color accuracy and clarity. This technology allows for a wider color gamut and better color reproduction, resulting in vibrant and lifelike images.



  • The TXW210001B0-CTP has a luminance of 400Cd/m², which means it is capable of producing bright and clear images even in well-lit environments. This makes it suitable for outdoor use and other high-ambient light conditions.
  • High-resolution display
  • Wide viewing angle
  • Excellent color performance
  • Fast response time
  • Low power consumption
  • Durable and reliable



Applications
  • smart home appliances
  • smart remote controls
  • smart rotary switches
  • children's education
  • medical equipment
  • automotive intelligent interconnection
  • and other products



About TFT LCD Modul

1.TFT LCD Module, also known as TFT LCD display or TFT LCD display module, is a type of LCD panel that uses thin-film transistor (TFT)
technology to improve image quality and performance. It is widely used in electronic devices that require high-resolution, fast response
time, and excellent color reproduction.

2.With its compact size, advanced features, and wide range of applications, the TXW210001B0-CTP is a reliable and versatile TFT LCD
Module that can enhance the user experience in various devices.

Customization:

TXWEI TFT LCD Module Customization Service

Brand Name: TXWEI
Model Number: TXW210001B0-CTP
Place of Origin: Guangdong, China
Certification: CE, ROHS, FCC
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: cardboard
Delivery Time: 16 days
Payment Terms: L/C, TT, D/P
Supply Ability: 10000pcs
Active Area: 0.111*0.111
Lumens Degrees: 400Cd/m²
Number of Pixels: 480*3RGB(H)X480(V)
Size: 2.1 inches

Key Words: TFT display, custom TFT display, TFT touch display, TFT LCD module, industrial TFT display


ITEMSandard valueUnit
Model NumberTXW210001B0-CTP
size2.1Inch
LCD TypeNormally black--
驱Drive elementTFT active matrix--
Number of pixels480*3RGB(H)X480(V)Dots
Pixel arrangementRGB stripe--
Pixel Pitch (W*H)0.111*0.111mm
Active areaΦ53.28mm
Mechanical OutlineSize(W*H*T)71.8*71.8*3.58
Mechanical OutlineSize(W*H*T)56.18*59.71*2.2mm
Viewing directionALL O’CLOCK-
LCM Driver ICST7701S-
LCM interfaceRGB 18 BIT Interface-
Cover materialAsahi Glass Tempered Glass
Touch screen structureG+F
Touch Driver ICCST830-
Touch InterfaceIIC
Laminating processOCA full fit
Lcm pin n count40
Backlight leds4pcs
Backlight current80mA
Backligh voltage2.8-3.3v
operating temperature-20+70℃
storage temperature-30+80℃
Lumens degrees400cd/㎡



  1. We offer various shipping options to accommodate our customers' needs. Our standard shipping method is through trusted carriers such as UPS, FedEx, and DHL. We also offer expedited shipping for urgent orders.
  2. For international orders, we take extra care in packaging and shipping to ensure safe delivery and compliance with customs regulations.
  3. Customers can track their shipment using the provided tracking number and can contact our customer service team for any assistance or inquiries regarding their delivery.
  4. At TFT LCD Module, we strive to provide efficient and reliable packaging and shipping services to ensure our customers receive their products in perfect condition and on time.
