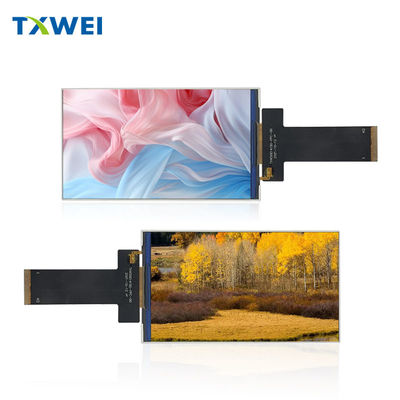

5-inch MIPI 480*854 TFT display screen 400-800nits industrial endoscope display panel

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW500141S0
Model Number:
TXW500141S0
Drive Element:
TFT Active Matrix
LCM Interface:
MIPI BIT Interface
Brightness:
400cd/m²
Lcm Pin N Count:
40
Number Of Pixels:
480*854
LCM Driver IC:
ILI9806E
Active Area:
61.63(H) *109.65(V)
Highlight:

High Resolution TFT LCD Screen

,

TFT LCD Screen 480 X 800

,

5 inch tft display ROHS

Product Description





1.TXW500141S0 is a 5.0-inch 16:9 ratio full-color TFT LCD display with a resolution of up to 480 * 854. It has IPS full angle high-definition and high brightness display effects, with a wide temperature range of -20+70 working temperature and a high brightness display of 400-800cd/m².



2.This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co. Ltd.

It provides professional full process technical support services, first-class production quality control, and a

delivery yield rate of 99.7%, with professional after-sales service guarantee.



3.This product is widely used in industrial endoscopes, children's monitors, monitoring device displays, access

control and attendance devices, security devices, handheld devices, children's education, refrigerator display

panels, coffee machine and range hood display panels, etc.

Features:

  • Product Name: TFT LCD Screen
  • Backlight current: 12
  • Pixel Pitch (W*H): 0.108
  • Viewing direction: ALL O’CLOCK
  • LCD Type: Normally Black
  • Drive element: TFT Active Matrix
  • High-definition display
  • Thin and lightweight design
  • Wide viewing angle
  • Sharp and vibrant colors
  • Energy-efficient backlight
  • Easy to use and install
  • Compatible with various devices
  • Durable and long-lasting
  • Enhanced visual experience
  • Ideal for multimedia and gaming

Technical Parameters:

ITEM Sandard value Unit
Model Number TXW500141S0
size 5.0 Inch
LCD Type Normally black --
Drive element TFT active matrix --
Number of pixels 480*3RGB(H)X800(V) Dots
Pixel arrangement RGB stripe --
Pixel Pitch (W*H) 0.1284*0.1284 mm
Active area 61.63(H) *109.65(V) mm
Mechanical OutlineSize(W*H*T) 66.4*120.05*2.05 mm
Viewing direction ALL O’CLOCK -
LCM Driver IC ILI9806E -
LCM interface MIPI BIT Interface -
Lcm pin n count 40
Backlight leds 12 pcs
Backlight current 40 mA
Backligh voltage 18 V
operating temperature -20+70 ℃
storage temperature -30+80 ℃
Lumens degrees 400 cd/㎡





  • Consumer Electronics: Our TFT LCD panel is widely used in smartphones, tablets, laptops, and other handheld devices, providing a high-resolution display for a better viewing experience.
  • Automotive Industry: Our TFT touch display is perfect for infotainment systems, dashboard displays, and rear-seat entertainment systems, providing a clear and intuitive interface for drivers and passengers.
  • Industrial Applications: Our TFT LCD Module is also suitable for industrial applications such as control panels, measurement devices, and industrial computers, providing a reliable and durable display solution for harsh environments.
  • Medical Devices: Our TFT display is widely used in medical devices, such as patient monitoring systems, ultrasound machines, and medical imaging devices, providing accurate and high-resolution images for medical professionals.
  • With its wide range of applications, our TFT LCD Module is the perfect display solution for various industries and scenarios. Its advanced technology and high-quality performance make it a top choice for electronic devices.

5-inch MIPI 480*854 TFT display screen 400-800nits industrial endoscope display panel 0



Why Choose TXWEI TFT LCD Screen?

There are many reasons why TXWEI TFT LCD Screen is the preferred choice for many businesses and individuals:

  • High quality and reliable product
  • Competitive pricing and flexible negotiation options
  • Efficient and timely delivery
  • Excellent customer service and technical support
  • Compliant with international standards and certifications
  • Continuous research and development for innovative solutions
  • Customizable options to meet specific requirements



Experience the superior display performance and advanced technology of TXWEI TFT LCD Screen. Contact us now to discuss your needs and get a quote.
