5.5-inch 1080 * 1920 TFT LCD display 550nits outdoor handheld PDA

Products

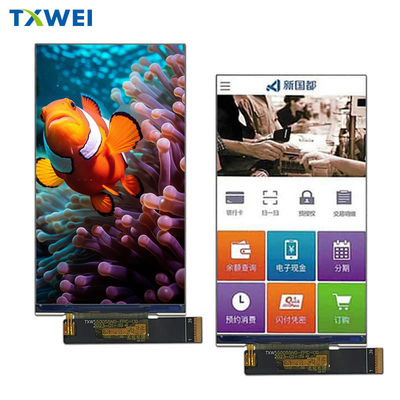

5.5-inch 1080 * 1920 TFT LCD display 550nits outdoor handheld PDA

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW550055N0

Operating temperature:

-20+70

Number Of Pixels:

1080*3RGB(H)X1920(V)

Drive Element:

TFT Active Matrix

Pixel Arrangement:

RGB Stripe

Brightness:

550cd/m²

Pixel Pitch (W*H):

0.021(H) *0.063(V)

Backlight Current:

LCD Type:

Normally Black

Highlight:

1080 x 1920 5.5 inch tft lcd display

5.5 inch tft lcd display 550cd/m2

TFT LCD Module RGB Stripe

Product Description

TXW550055N0 is a 5.5-inch 16:9 ratio full-color LTPS LCD display with a resolution of up to 1080 * 1920, IPS full angle high-definition highlight display effect, wide temperature -20+70 working temperature, and high brightness display of 550cd/m ².

This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, and a delivery yield rate of 99.7%, with professional after-sales service guarantee.

This product is widely used in outdoor handheld PDAs, photography equipment, instruments, surveyors, drone remote control handle panels, and other fields.

Customization:

TXWEI TFT LCD Screen Customization Service

Brand Name: TXWEI

Model Number: TXW550055N0

Place of Origin: Guangdong, China

Certification: CE ROHS FCC

Minimum Order Quantity: negotiate

Price: negotiate

Packaging Details: cardboard

Delivery Time: 16

Payment Terms: L/C, TT, D/P

Supply Ability: 10000pcs

Brightness: 550cd/m²

IC/LCM Driver IC: MIPI Interface

Drive Element: TFT Active Matrix

Operating Temperature: -20°C to +70°C

Viewing Direction: ALL O'CLOCK

Key Words: LCD TFT Display Panel, TFT Screen Display, TFT LCD Screen

Technical Parameters:

Technical Parameters	Value
Product Name	TFT LCD Screen
Mechanical OutlineSize(WHT)	70.04128.291.68
Active area	68.04(H) * 120.96(V)
Drive Element	TFT Active Matrix
Operating Temperature	-20°C to +70°C
Brightness	550cd/m²
Lcm Pin n Count	39
IC/LCM Driver IC	MIPI Interface
LCM Driver IC	HX8399C
Number of Pixels	1080*3RGB(H)X1920(V)
Pixel Arrangement	RGB Stripe

Consumer Electronics: Our TFT LCD panel is widely used in smartphones, tablets, laptops, and other handheld devices, providing a high-resolution display for a better viewing experience.
Automotive Industry: Our TFT touch display is perfect for infotainment systems, dashboard displays, and rear-seat entertainment systems, providing a clear and intuitive interface for drivers and passengers.
Industrial Applications: Our TFT LCD Module is also suitable for industrial applications such as control panels, measurement devices, and industrial computers, providing a reliable and durable display solution for harsh environments.
Medical Devices: Our TFT display is widely used in medical devices, such as patient monitoring systems, ultrasound machines, and medical imaging devices, providing accurate and high-resolution images for medical professionals.
With its wide range of applications, our TFT LCD Module is the perfect display solution for various industries and scenarios. Its advanced technology and high-quality performance make it a top choice for electronic devices.
