TFT LCD screen 2.0" inch 240x320 IPS type Full Viewing Angle With SPI+MCU interface and ST7789V IC TFT LCD screen

Products

TFT LCD screen 2.0" inch 240x320 IPS type Full Viewing Angle With SPI+MCU interface and ST7789V IC TFT LCD screen

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW200069S0

Operating temperature:

-20+70

LCD Type:

Normally Black

Drive Element:

TFT Active Matrix

Lumens Degrees:

400Cd/m²

Size:

Number Of Pixels:

240*3RGB(H)X320(V)

Pixel Arrangement:

RGB Stripe

Highlight:

240x320 TFT LCD screen

2.0” inch TFT LCD screen

Product Description

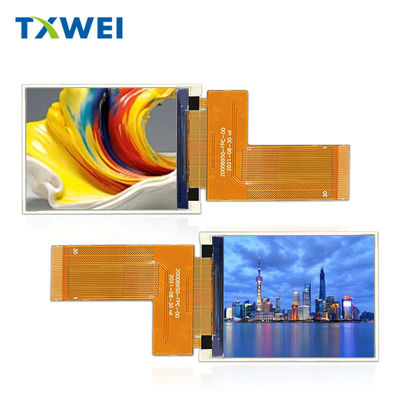

Tianxianwei TXW200069S0 is a circular IPS type TFT LCD display with a diagonal size of 2.0 inches and a resolution of 240x320 pixels.

Product Quick Details:

1. LCD Size: 2.0” inch TFT

2. Resolution: 240x320 dots

3. Viewing Angle: All

4. Outline Dimension: 35.7*51.2*2.33mm

5. Driver IC: ST7789V

6. Interface Type: SPI+MCU

7. Touch Panel: Without Touch Panel (Customizable)

8. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C

Product:	2.0" TFT LCD	Touch Screen:	Without Touch Screen(Customizable)
Resolution:	240x320 Dots	Viewing Direction:	ALL
Interface:	SPI+MCU Interface	Pin Number:	30 Pins
Connection:	FPC Type Connection	Surface Luminance:	400 Cd/m2
Operating Temp.:	-20℃ To +70℃	Compliance:	CE&FCC & RoHS Compliant

Application program

This 2.0-inch TFT LCD module is widely used in electric vehicle instruments, handheld PDAs, medical equipment, automotive electronics, home appliances, driving recorders, children's cameras, sports DV, and more.

Product Advantages

1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.

2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.

3.High quality level for industrial and medical applications.

4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.

5.Price competitive solution with good quality among the same kinds in the LCD industry.

6.Easy to install and easy to maintain.

2" INCH TOUCH LCD MODULE DRAWING

TFT LCD screen 2.0" inch 240x320 IPS type Full Viewing Angle With SPI+MCU interface and ST7789V IC TFT LCD screen 0

TFT LCD screen 2.0" inch 240x320 IPS type Full Viewing Angle With SPI+MCU interface and ST7789V IC TFT LCD screen 1

Module Function Description

Pin No.	Symbol	Functional
1	GND	Power Ground
2	VCI	power supply for DC/DC circuit(2.8~3.3V)
3-4	IM2-IM1
5	RESET	Reset signal input terminal. Active at ‘L’.
6	CS	Chip select signal input pin
7	RS	Display data/command selection pin
8	WR	Write enable in MCU parallel interface.
9	RD	Read data at the rising edge.
10	SDA	Serial data input/output pin.
11	DB0	MCU parallel interface data cable.
12	DB1	MCU parallel interface data cable.
13	DB2	MCU parallel interface data cable.
14	DB3	MCU parallel interface data cable.
15	DB4	MCU parallel interface data cable.
16	DB5	MCU parallel interface data cable.
17	DB6	MCU parallel interface data cable.
18	DB7	MCU parallel interface data cable.
19	SDO	Serial data output pin.
20	LEDA	Power supply for backlight anode input terminal.
21	LEDK1	Power supply for backlight cathode input terminal.
22	LEDK2	Power supply for backlight cathode input terminal.
23	LEDK3	Power supply for backlight cathode input terminal.
24	LEDK4	Power supply for backlight cathode input terminal.
25	GND	Power Ground
26	CTP-RST(NC)	Not connected
27	CTP-SCL(NC)	Not connected
28	CTP-SDA(NC)	Not connected
29	CTP-INT(NC)	Not connected
30	GND	Power Ground

Absolute Maximum Rating

Characteristics	Symbol	Min.	Max.	Unit
LCM Operating Temperature	T_OPR	-20	+70	°C
LCM Storage Temperature	T_STG	-30	+80	°C
Humidity	RH	10	90	%

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 4 white LEDs. The characteristics of the back-light are shown in the following tables.

Characteristics	Symbol	Min.	Type	Max.	Unit	Notes
Forward Voltage	V_F	2.8	--	3.2	V	--
Forward current	I_F	--	80	--	mA	--
Luminance(With LCD)	Lv	--	400	--	cd/m²	--
LED life time	N/A	--	30,000	--	Hr	Note 1

Note:

The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED

2.0" INCH TOUCH LCD MODULE REAL PRODUCT DEMOSTRATION
