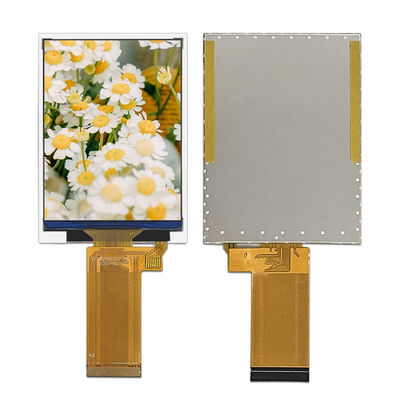

3.2 inch full-color TFT touch LCD display screen

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW320027S0
Pixel Pitch (W*H):
55.04*77.7*2.8
Pixel Arrangement:
RGB Stripe
LCD Type:
Normally Black
Brightness:
350cd/m²
IC/LCM Driver IC:
ST7789T3
Lcm Pin N Count:
40
Viewing Direction:
ALL O’CLOCK
Number Of Pixels:
240*320
Highlight:

3.2 inch TFT LCD display screen

,

3.2 inch TFT LCD Display Screen

,

3.2 inch TFT LCD Touch Screen

Product Description



TFT LCD Screen Product Overview

TFT LCD Screen is a high-quality, energy efficient display screen that utilizes Thin Film Transistor (TFT) technology to provide a superior viewing experience. This state-of-the-art LCD display is perfect for a wide range of applications, from consumer electronics to industrial use.



Product Specifications
  • Lcm pin n count: 40
  • Pixel Pitch (W*H): 55.04*77.7*2.8
  • Viewing direction: ALL O’CLOCK
  • Brightness: 350cd/m²
  • LCD Type: Normally Black
  • Product Name: TFT LCD Screen
  • IC/LCM Driver IC: ST7789T3
  • Drive element: TFT Active Matrix
    • TFT LCD Display Module
    • TFT Screen Display
    • LCD TFT Display Panel
    • High Brightness LCD Screen



Key Features
  • Thin Film Transistor (TFT) technology for superior image quality
  • Liquid Crystal Display (LCD) technology for a wide viewing angle
  • High definition display for crisp and clear images
  • Energy efficient design for reduced power consumption
  • Available in a variety of sizes to suit different needs

Experience the Best with TFT LCD Screen

With its advanced technology and impressive features, TFT LCD Screen offers a superior viewing experience for both personal and professional use. Its wide viewing angle, high definition display, and energy efficient design make it the top choice for all your display needs. Upgrade to TFT LCD Screen and see the difference for yourself.

Technical Parameters:

TFT LCD Display Module TFT LCD Monitor Screen
Lcm pin n count 40
Pixel Pitch (W*H)

55.04*77.7*2.8

Active area

48.6*64.8
Number of pixels 240*320
Pixel arrangement RGB Stripe
Viewing direction ALL O’CLOCK
Drive element TFT Active Matrix
LCD Type Normally Black
Brightness 350cd/m²
Operating temperature -20+70
storage temperature

-30+80
Backlight current 120





Product Features
  • HD Resolution: Our TFT LCD Monitor Screen delivers crystal clear images with high definition resolution, making every picture come to life.
  • High Brightness: With a high brightness level, our TFT Screen Display ensures vivid and vibrant colors, even in bright lighting conditions.
  • Wide Viewing Angle: Our TFT LCD Screen offers a wide viewing angle, providing an optimal viewing experience from all angles.
  • Durable and Reliable: Built with high-quality materials, our TFT Screen Display is designed to withstand daily wear and tear, ensuring long-lasting performance.
  • Energy Efficient: Our TFT LCD Monitor Screen is energy efficient, consuming minimal power, making it an environmentally friendly




Place of Origin: Guangdong, China
The TFT LCD Module is proudly made in Guangdong, China, a hub for electronic manufacturing. This ensures that the product is of top-notch quality and adheres to strict industry standards.

Certification: CE ROHS FCC
With the CE, ROHS, and FCC certifications, this TFT LCD Module is guaranteed to be safe, reliable, and environmentally friendly. These certifications also make it suitable for use in various countries and regions.

Minimum Order Quantity: Negotiate
As a customer-oriented company, TXWEI offers flexible minimum order quantities to cater to the needs of different clients. Whether you need a small or large quantity, we can negotiate and find a solution that works for you.

3.2 inch full-color TFT touch LCD display screen 0
