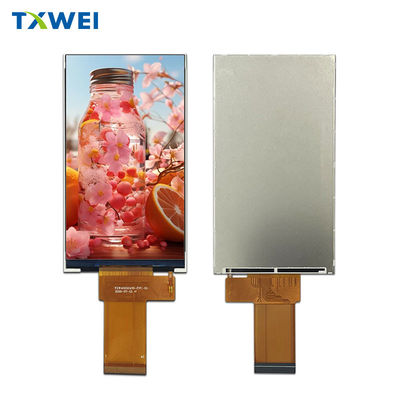

4.5 inch 480*854 IPS 300cd/m² RGB Interface LCD display screen

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW450024S0
Pixel Arrangement:
RGB Stripe
Lumens Degrees:
300Cd/m²
Drive Element:
TFT Active Matrix
Number Of Pixels:
480*854
LCD Type:
Normally Black
Active Area:
56.04(H) * 98.64(V)
Size:
4.5
Highlight:

480 * 854 tft lcd module

,

4.5 inch tft lcd module

,

medical industry tft lcd module

Product Description

TFT LCD Module - Product Overview



TXW450024S0 is a 4.5-inch 16:9 ratio full-color TFT  LCD display screen with a resolution of up to 480 * 854, IPS full view high-definition highlight effect, and a wide temperature range of -20+70 operating temperatures.



This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, and a delivery yield rate of 99.7%, with professional after-sales service guarantee.



This product is widely used in medical monitors/monitors, instrument displays, car displays, access control and security displays, smart home appliance displays, handheld PDA/POS machine displays, and more.



Key Features:
  • High resolution for clear and detailed display
  • Wide viewing angle for optimal visibility
  • High contrast for vivid and lifelike images
  • Energy efficient for cost savings
  • Durable design for long-lasting performance
  • Industry standard specifications for compatibility
  • Versatile for use in various applications



ITEM Sandard value Unit
Model Number TXW4500024S0
size 4.5 Inch
LCD Type Normally black --
Drive element TFT active matrix --
Number of pixels 480*3RGB(H)X854(V) Dots
Pixel arrangement RGB stripe --
Pixel Pitch (W*H) 0.108*0.108 mm
Active area 56.04(H) * 98.64(V) mm
Mechanical OutlineSize(W*H*T) 60*109*1.75 mm
Viewing direction ALL O’CLOCK -
LCM Driver IC ST7701S -
LCM interface RGB 24 BIT Interface -
Lcm pin n count 40
Backlight leds 10 pcs
Backlight current 40 mA
Backligh voltage 15 v
operating temperature -20+70 ℃
 storage temperature -30+80 ℃
Lumens degrees 300 cd/㎡

Features:

  1. Product Name: TFT LCD Module
  2. Active Area: 56.04(H) * 98.64(V)
  3. LCD Type: Normally Black
  4. Lumens Degrees: 300Cd/m²
  5. Key Features:
    1. TFT display
    2. TFT LCD module
    3. TFT LCD display
    4. High resolution: 480*854
    5. Wide viewing angle
    6. Fast response time
    7. Low power consumption
    8. Wide operating temperature range: -20+70
    9. Compact and lightweight design
    10. Easy to integrate into various devices





Customize your TFT LCD display with TXWEI. Our TFT LCD module offers high-quality graphics and touch screen functionality for a



seamless user experience. With our customizable options, you can tailor the display to fit your specific needs and requirements. We are



certified by CE, ROHS, and FCC, ensuring our products meet the highest industry standards. Our minimum order quantity and pricing are



negotiable, and we offer fast delivery in sturdy cardboard packaging. With an operating temperature range of -20°C to +70°C, our TFT LCD



display is suitable for a wide range of environments. The active area of 56.04mm (H) * 98.64mm (V) and pixel arrangement of RGB Stripe



provide clear and vibrant images. Choose TXWEI for your custom TFT LCD display needs.


Tags:

5.0 Inch TFT LCD Module,

TFT LCD Module 300cd/m2,

TFT LCD Module High brightness
