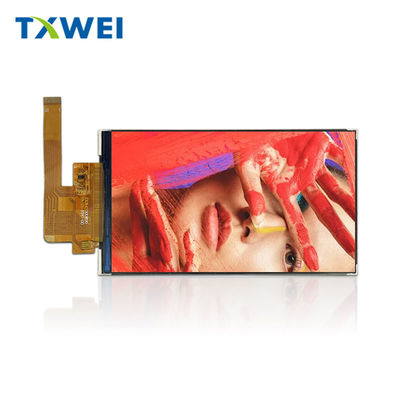

4.7 Inch SPI TFT LCD Display 720*1280 Pixels 25 Pin MIPI Interface JD9365DA Driver IC

Products

4.7 Inch SPI TFT LCD Display 720*1280 Pixels 25 Pin MIPI Interface JD9365DA Driver IC

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW470008B0

Number Of Pixels:

720*1280

IC/LCM Driver IC:

JD9365DA

Lcm Pin N Count:

Pixel Arrangement:

RGB Stripe

LCD Type:

Normally Black

LCM Interface:

MIPI BIT Interface

Pixel Pitch (W*H):

61.4*112.6*1.6

Brightness:

400cd/m²

Highlight:

RGB tft lcd screen

Stripe tft lcd screen

JD9365DA tft lcd screen

Product Description

Product Introduction

The 4.7-inch SPI TFT display screen is a color TFT LCD screen with a 720 * 1280 dot matrix MIPI interface, featuring rich color display and high resolution, providing users with a clear visual experience. Suitable for payment devices, child monitors, monitoring device displays, access control attendance devices, security devices, handheld devices, children's education display panels, etc.

This 4.7-inch MIPI TFT TXW470008B0 module comes with a built-in JD9365DA driver IC; It supports MIPI BIT interface and has a power supply voltage (VDD) of 15V. It can operate within a temperature range of -20 ℃ to+70 ℃ and store within a temperature range of -30 ℃ to+80 ℃.

Based on this 4.7-inch MIPI TFT product, Tianxianwei Technology provides differentiated customized solutions, including but not limited to:

Backlight customization: Adjust the type and brightness of the backlight according to product requirements.

Interface customization: Change the structure and interface of the LCD screen cable to adapt to specific hardware platforms.

Touch screen integration: Optional resistive or capacitive touch screens can enhance user interaction experience.

Features

Product:	4.7" Inch TFT LCD Display
Model number	TXW470008B0
Resolution:	720*1280
Viewing Direction:	12 O'clock
Interface:	MIPI BIT
Outline Dimension:	61.4112.61.6(mm)
Active Area:	58.104(H) *103.296(V)(mm)
Pin Number:	25 Pins
Connection:	FPC Plugging
Surface Luminance:	400 Cd/m2 (nits)
LED Lifetime:	430,000 Hours
Certificate:	ISO9001:2015 / ISO1400:2015
Compliance:	Rohs & CE & FCC Compliant

Outline Drawing

4.7 Inch SPI TFT LCD Display 720*1280 Pixels 25 Pin MIPI Interface JD9365DA Driver IC 0

4.7 Inch SPI TFT LCD Display 720*1280 Pixels 25 Pin MIPI Interface JD9365DA Driver IC 1

Module Function Description

Pin No.	Symbol	Functional
1	GND	Power Ground
2	LEDA	Power supply for backlight anode input terminal.
3	LEDK	Power supply for backlight cathode input terminal.
4	GND	Power Ground
5	VCC 2.8V	Power supply 2.5-3.6V
6	GND	Power Ground
7	VDDIO 1.8V	Power supply 1.65-3.3V
8	RST	Reset signal input terminal. Active at ‘L’.
9	LPTE	Tearing effect signal is used to synchronize MCU to frame memory
10	NC(ID)	NC
11	GND	Power Ground
12	TCN	MIPI-DSI CLOCK differential signal input pins
13	TCP	MIPI-DSI CLOCK differential signal input pins
14	GND	Power Ground
15	TDN0	MIPI-DSI Data differential signal input pins
16	TDP0	MIPI-DSI Data differential signal input pins
17	GND	Power Ground
18	TDN1	MIPI-DSI Data differential signal input pins
19	TDP1	MIPI-DSI Data differential signal input pins
20	GND	Power Ground
21	TDN2	MIPI-DSI Data differential signal input pins
22	TDP2	MIPI-DSI Data differential signal input pins
23	GND	Power Ground
24	TDN3	MIPI-DSI Data differential signal input pins
25	TDP3	MIPI-DSI Data differential signal input pins

Absolute Maximum Rating

Characteristics	Symbol	Min.	Max.	Unit
LCM Operating Temperature	T_OPR	-20	+70	°C
LCM Storage Temperature	T_STG	-30	+80	°C
Humidity	RH	--	90	%

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 10 white LEDs. The characteristics of the back-light are shown in the following tables.

Characteristics	Symbol	Min.	Type	Max.	Unit	Notes
Forward Voltage	V_F	14.5	--	16	V	--
Forward current	I_F	--	40	--	mA	--
Luminance(With LCD)	Lv	--	280	--	cd/m²	--
LED life time	N/A	--	30,000	--	Hr	Note 1

Note:

(1)The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.

Reliability Test Item

No.	Test Item	Test Condition	Notes
1	High Temp. Storage	+80°C / 240H	1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow.
2	Low Temp. Storage	-30°C / 240H
3	High Tempe. Operating	+70°C / 240H
4	Low Tempe. Operating	-20°C / 240H
5	High Temperature /Humidity storage	50+5°C x 90%RH / 48H
6	Thermal and cold shock	Static state, -30℃(1 hour) ~60℃ (1 hour) ~ -30℃(1 hour),packaging, 10 cycles

Product Image

Facilities and Certifications
