Small Circular LCD Display 450nits Round LCD Module MIPI Interface 2.1 Inch

Products

Small Circular LCD Display 450nits Round LCD Module MIPI Interface 2.1 Inch

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW210006B0

Number Of Pixels:

480*480

Mechanical OutlineSize(W*H*T):

56.18*59.71*2.2

IC/LCM Driver IC:

ST7701S

Pixel Pitch (W*H):

0.111*0.111

LCM Interface:

MIPI BIT Interface

Operating temperature:

-20+70

Active Area:

Φ53.28

Lumens Degrees:

450cd/m²

Highlight:

2.1 inch LCD display screen

Rotary Switch LCD display screen

Medical Circular LCD display screen

Product Description

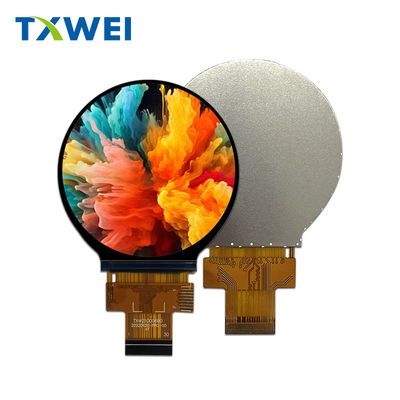

2.1 inch round LCD, round TFT LCD 2.1"

TXW210006B0 is a 2.1-inch diagonal 480 * 480 full-color circular TFT LCD screen display. It supports MIPI interface and is widely used in smart home appliances, smart remote controls, smart rotary switches, children's education, medical instruments, automotive intelligent interconnection and other products.

TXW210006B0 is a circular TFT-LCD with a brightness of 450 nits (typical value). It can operate at temperatures ranging from -20 ° C to+70 ° C, with a storage temperature range of -30 °C to+80 °C.

Product:	2.1 Inch Round(circular) TFT Display	Touch Screen:	Without Touch (with CTP Optional )
Resolution:	480*480 Dots	Cover Glass Dimension:	Customizable
Viewing Direction:	IPS ( All Viewing Angle )	Interface:	MIPI
Pin Number:	30 Pins	Outline Dimension:	56.1859.712.2Mm
LCM Driver IC:	ST7701S	Surface Luminance:	450 Cd/m2(nits)
LED Lifetime:	30,000 Hours	Compliance:	CE&FCC & RoHS Compliant

2.1 inch round LCD, round TFT LCD 2.1" Drawing

Small Circular LCD Display 450nits Round LCD Module MIPI Interface 2.1 Inch 0

Module Function Description

Pin No.	Symbol	Functional
1	LEDA	Power supply for backlight anode input terminal.
2	LEDK	Power supply for backlight cathode input terminal.
3	LEDK	Power supply for backlight cathode input terminal.
4	VCI	Power Supply For LCD.
5	IOVCC	Power Supply For I/O.
6	RESET	Reset signal input terminal. Active at ‘L’.
7	TE	Frame head pulse for tearing effect.
8	PWM	PWM (Pulse Width Modulation) Signal Of LED Driving.
9	GND	Power Ground
10	MIPI_0P	Positive polarity of low voltage differential data 0 signa
11	MIPI_0N	Negative polarity of low voltage differential data 0 signal
12	GND	Power Ground
13	MIPI_1P	Positive polarity of low voltage differential data 1 signa
14	MIPI_1N	Negative polarity of low voltage differential data 1 signal
15	GND	Power Ground
16	CLKP	Positive polarity of low voltage differential clock signal
17	CLKN	Negative polarity of low voltage differential clock signal
18	GND	Power Ground
19	NC	No Connection.
20	NC	No Connection.
21	GND	Power Ground
22	NC	No Connection.
23	NC	No Connection.
24	GND	Power Ground
25	CTP_INT	Touch panel interrupt output
26	CTP_SDA	Touch panel I2C data
27	CTP_SCL	Touch panel I2C clock
28	CTP_RESET	Touch panel reset
29	CTP_VCI	Touch panel Power supply 2.8~3.3V
30	GND	Power Ground

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 4 white LEDs. The characteristics of the back-light are shown in the following tables.

Characteristics	Symbol	Min.	Type	Max.	Unit	Notes
Forward Voltage	V_F	2.8	--	3.2	V	--
Forward current	I_F	--	80	--	mA	--
Luminance(With LCD)	Lv	--	450	--	cd/m²	--
LED life time	N/A	--	30,000	--	Hr	Note 1

Note:

(1)The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.

2.1 inch round LCD, round TFT LCD 2.1" Real Product Image
