4-inch 720*720 circular IPS home appliance medical instrument LCD display screen

4-inch 720*720 circular IPS home appliance medical instrument LCD display screen

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW400003B0
Viewing Direction:
ALL O’CLOCK
IC/LCM Driver IC:
NV3051F
Active Area:
Φ101.52
Pixel Pitch (W*H):
0.047*0.141
Number Of Pixels:
720*720
Lumens Degrees:
450cd/m²
Operating temperature:
-20+70
Highlight:

Instruments LCD display screens

,

IPS LCD display screens

,

Home Appliances LCD display screens

Product Description

Round TFT LCD Product Overview:

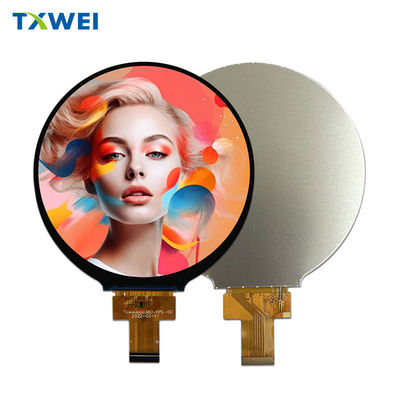

TXW400003B0 is a 4.0-inch circular full-color TFT LCD display screen that can be equipped with capacitive touch full fit, with a resolution of 720 * 720, IPS full angle high-definition highlight display effect, wide temperature -20+70 working temperature, 450cd/m ² brightness, MIPI interface, customizable FPC, touch and backlight structure.



This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, and professional after-sales service guarantee.



This product is widely used in smart home appliances, kitchen appliances, instrument displays, security access control, children's education, medical equipment, automotive intelligent interconnection and other products.




Product Specifications
  • Viewing Direction: All O'clock
  • Pixel Pitch (W*H): 0.047*0.141
  • Number of Pixels: 720*720
  • Active Area: Φ101.52
  • IC/LCM Driver IC: NV3051F
  • Product Name: Round TFT LCD
  • Size: 4.0
  • Lumens Degrees: 450cd/m²
  • Viewing Direction: ALL O’CLOCK
  • Pixel Arrangement: RGB Stripe
  • LCM Interface: MIPI 4 LANE BIT Interface



Key Features
  • Round Liquid Crystal Display
  • Circular TFT LCD
  • Active Matrix Technology
  • Full Color Display
  • High Resolution (720*720 pixels)
  • Wide Viewing Angle (All O'clock)
  • Thin Film Transistor (TFT) Technology
  • High-quality Images and Videos
  • Suitable for Wearable Devices





ITEM Sandard value Unit
Model Number TXW400003B0
size 4.0 Inch
LCD Type Normally black --
Drive element TFT active matrix --
Number of pixels 720*3RGB(H)X720(V) Dots
Pixel arrangement RGB stripe --
Pixel Pitch (W*H) 0.047*0.141 mm
Active area Φ101.52 mm
Mechanical OutlineSize(W*H*T) 105.6*109.87*2.13 mm
Viewing direction ALL O’CLOCK -
LCM Driver IC NV3051F -
LCM interface MIPI 4 LANE BIT Interface -
Lcm pin n count 40
Backlight leds 6 pcs
Backlight current 40 mA
Backligh voltage 18 V
operating temperature -30+80
storage temperature -30+80
Lumens degrees 450 cd/㎡



Technical Parameters:

Round TFT LCD - High Resolution Display for Wearable Devices

Brand Name: TXWEI

Model Number: TXW400003B0

Place of Origin: Guangdong, China

Certification: CE, ROHS, FCC

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Cardboard

Delivery Time: 16 days

Payment Terms: L/C, TT, D/P

Supply Ability: 10000pcs per month

IC/LCM Driver IC: NV3051F

LCD Type: Normally Black

LCM Interface: MIPI 4 LANE BIT Interface

Mechanical Outline Size (W*H*T): 105.6*109.87*2.13

Size: 4.0 inches














Established in Guangdong, China, TXWEI is a trusted brand known for its high-quality products and reliable services. Our Round TFT LCD, model number TXW400003B0, is no exception. It is CE, ROHS, and FCC certified, ensuring safety and compliance with international standards.



We offer flexible Minimum Order Quantity and Negotiable Price options to meet your budget and production needs. Our Round TFT LCD is carefully packaged in cardboard for secure transportation and has a quick delivery time of only 16 days.



With our convenient Payment Terms of L/C, TT, and D/P, you can easily place your order and receive your Round TFT LCD hassle-free. Our Supply Ability of 10000 pieces ensures that we can fulfill your bulk orders efficiently.



The Round TFT LCD features a Pixel Pitch of 0.047*0.141, providing clear and sharp images. It has an Operating Temperature range of -20℃ to +70℃, making it suitable for various environments. The LCD Type is Normally Black, and it has a high number of pixels of 720*720, ensuring a high-resolution display.



products
PRODUCTS DETAILS
4-inch 720*720 circular IPS home appliance medical instrument LCD display screen
MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW400003B0
Viewing Direction:
ALL O’CLOCK
IC/LCM Driver IC:
NV3051F
Active Area:
Φ101.52
Pixel Pitch (W*H):
0.047*0.141
Number Of Pixels:
720*720
Lumens Degrees:
450cd/m²
Operating temperature:
-20+70
Minimum Order Quantity:
negotiate
Price:
negotiate
Packaging Details:
cardboard
Delivery Time:
16
Payment Terms:
L/C TT D/P
Supply Ability:
10000pcs
Highlight

Instruments LCD display screens

,

IPS LCD display screens

,

Home Appliances LCD display screens

Product Description

Round TFT LCD Product Overview:





TXW400003B0 is a 4.0-inch circular full-color TFT LCD display screen that can be equipped with capacitive touch full fit, with a resolution of 720 * 720, IPS full angle high-definition highlight display effect, wide temperature -20+70 working temperature, 450cd/m ² brightness, MIPI interface, customizable FPC, touch and backlight structure.



This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, and professional after-sales service guarantee.



This product is widely used in smart home appliances, kitchen appliances, instrument displays, security access control, children's education, medical equipment, automotive intelligent interconnection and other products.




Product Specifications
  • Viewing Direction: All O'clock
  • Pixel Pitch (W*H): 0.047*0.141
  • Number of Pixels: 720*720
  • Active Area: Φ101.52
  • IC/LCM Driver IC: NV3051F
  • Product Name: Round TFT LCD
  • Size: 4.0
  • Lumens Degrees: 450cd/m²
  • Viewing Direction: ALL O’CLOCK
  • Pixel Arrangement: RGB Stripe
  • LCM Interface: MIPI 4 LANE BIT Interface



Key Features
  • Round Liquid Crystal Display
  • Circular TFT LCD
  • Active Matrix Technology
  • Full Color Display
  • High Resolution (720*720 pixels)
  • Wide Viewing Angle (All O'clock)
  • Thin Film Transistor (TFT) Technology
  • High-quality Images and Videos
  • Suitable for Wearable Devices





ITEM Sandard value Unit
Model Number TXW400003B0
size 4.0 Inch
LCD Type Normally black --
Drive element TFT active matrix --
Number of pixels 720*3RGB(H)X720(V) Dots
Pixel arrangement RGB stripe --
Pixel Pitch (W*H) 0.047*0.141 mm
Active area Φ101.52 mm
Mechanical OutlineSize(W*H*T) 105.6*109.87*2.13 mm
Viewing direction ALL O’CLOCK -
LCM Driver IC NV3051F -
LCM interface MIPI 4 LANE BIT Interface -
Lcm pin n count 40
Backlight leds 6 pcs
Backlight current 40 mA
Backligh voltage 18 V
operating temperature -30+80
storage temperature -30+80
Lumens degrees 450 cd/㎡



Technical Parameters:

Round TFT LCD - High Resolution Display for Wearable Devices

Brand Name: TXWEI

Model Number: TXW400003B0

Place of Origin: Guangdong, China

Certification: CE, ROHS, FCC

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Cardboard

Delivery Time: 16 days

Payment Terms: L/C, TT, D/P

Supply Ability: 10000pcs per month

IC/LCM Driver IC: NV3051F

LCD Type: Normally Black

LCM Interface: MIPI 4 LANE BIT Interface

Mechanical Outline Size (W*H*T): 105.6*109.87*2.13

Size: 4.0 inches














Established in Guangdong, China, TXWEI is a trusted brand known for its high-quality products and reliable services. Our Round TFT LCD, model number TXW400003B0, is no exception. It is CE, ROHS, and FCC certified, ensuring safety and compliance with international standards.



We offer flexible Minimum Order Quantity and Negotiable Price options to meet your budget and production needs. Our Round TFT LCD is carefully packaged in cardboard for secure transportation and has a quick delivery time of only 16 days.



With our convenient Payment Terms of L/C, TT, and D/P, you can easily place your order and receive your Round TFT LCD hassle-free. Our Supply Ability of 10000 pieces ensures that we can fulfill your bulk orders efficiently.



The Round TFT LCD features a Pixel Pitch of 0.047*0.141, providing clear and sharp images. It has an Operating Temperature range of -20℃ to +70℃, making it suitable for various environments. The LCD Type is Normally Black, and it has a high number of pixels of 720*720, ensuring a high-resolution display.
