PRODUCTS DETAILS

Home > Products >

4.58-inch TFT bar 320 * 960 resolution IPS 500nits LCD display screen

Products

4.58-inch TFT bar 320 * 960 resolution IPS 500nits LCD display screen

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW460001A0-GP

Pixel Pitch (W*H):

0.114.9*0.114.9

Viewing Direction:

ALL O’CLOCK

Lumens Degrees:

500cd/m²

ITEM:

Sandard Value

LCM Interface:

RGB BIT Interface

LCD Type:

TFT Active Matrix

Mechanical OutlineSize(W*H*T):

50.19*126.1*4.3

Highlight:

500nits TFT bar

320 * 960 TFT bar

500nits LCD display screen

Product Description

Bar Type TFT LCD Display - Perfectly Designed for Your Display Needs

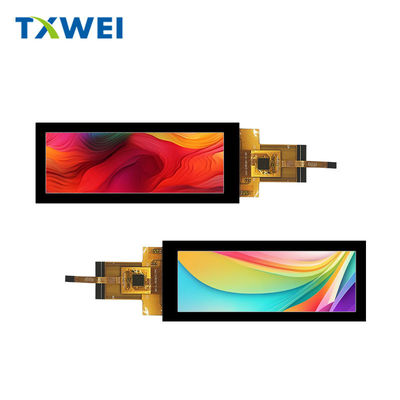

TXW460001A0-GP is a 4.58-inch full-color TFT strip capacitive touch LCD display screen with a resolution of 320 * 960, IPS full angle high-definition display effect, wide temperature range of -20+70 working temperatures, and brightness of 500cd/m ².

This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, and a delivery yield rate of 99.7%, with professional after-sales service guarantee.

This product is widely used in home appliance display panels, smart instrument product displays, medical infusion pump displays, energy storage power supply displays, smart audio displays, kitchen appliance displays, and more.

We understand the importance of user-friendliness in any product, which is why our Bar Type TFT LCD Display is designed for easy operation. With its intuitive interface and simple controls, users can easily navigate and operate the display, making it suitable for a wide range of applications and users.

Experience the difference with our Bar Type TFT LCD Display - the ultimate display solution for all your needs. Contact us today to learn more and get your hands on this premium display product.

Features:

Product Name: Bar Type TFT
ITEM: Sandard Value
LCM interface: RGB BIT Interface
Active area: 36.77*110.3
Pixel arrangement: RGB Stripe
Viewing direction: ALL O’CLOCK
HD Display
RGB BIT Interface
TFT LCD
TFT LCD Display
TFT LCD Display Module

Technical Parameters:

ITEM	Standard Value
Size	4.58 inches
Active Area	36.77mm*110.3mm
LCD Type	TFT Active Matrix
Pixel Arrangement	RGB Stripe
Lumens Degrees	500cd/m²
Pixel Pitch (W*H)	0.114.9mm*0.114.9mm
Viewing Direction	ALL O'CLOCK
LCM Interface	RGB BIT Interface
Number of Pixels	320*960

Hd Display Mipi Interface Tft Lcd, High-brightness Lcd Display, High-brightness Lcd Display

Customization:

Bar Type TFT Customized Service

Brand Name: TXWEI

Model Number: TXW460001A0-GP

Place of Origin: Guangdong, China

Certification: CE ROHS FCC

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Cardboard

Delivery Time: 16 days

Payment Terms: L/C, TT, D/P

Supply Ability: 10000pcs

Mechanical Outline Size(W*H*T): 50.19*126.1*4.3

LCD Type: TFT Active Matrix

Active Area: 36.77*110.3

Viewing Direction: ALL O’CLOCK

Key Features:

LCD Highlight Display
LCD Highlight Display
High-brightness LCD Display

The company has won more than 10 invention patents and multiple utility model patents, and has numerous original products. The company has passed ISO14001/16949 certification/ISO9001 quality management system certification and strictly follows ISO principles for management and operation.

Shenzhen Tianxianwei Technology Co., Ltd. has won the recognition of customers for its thoughtful and enthusiastic service, strong research and development and production capabilities, and excellent product quality. It is constantly praised in the industry. We sincerely welcome friends from all walks of life to visit, guide, and negotiate business. "Selecting Tianxianwei on the screen is reassuring and worry free"!

As a leading manufacturer of TFT LCD panels, TXWEI offers the option for customizing the display according to specific requirements. From size and resolution to touch functionality, our team can tailor the TFT LCD Module to meet your unique needs. This makes it a versatile choice for a variety of applications.

FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is TXWEI.
Q: What is the model number of this product?
A: The model number of this product is TXW460001A0-G.
Q: Where is this product made?
A: This product is made in Guangdong, China.
Q: Is this product certified?
A: Yes, this product is certified with CE, ROHS, and FCC.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is negotiable.
Q: What is the price of this product?
A: The price of this product is negotiable.
Q: How is this product packaged?
A: This product is packaged in cardboard.
Q: How long is the delivery time for this product?
A: The delivery time for this product is 16 days.
Q: What are the payment terms for this product?
A: The payment terms for this product are L/C, TT, and D/P.
Q: What is the supply ability for this product?
A: The supply ability for this product is 10000pcs.
