| MOQ: | negotiate |
| Price: | negotiate |
| Standard Packaging: | cardboard |
| Delivery Period: | 16 days |
| Supply Capacity: | 10000pcs |

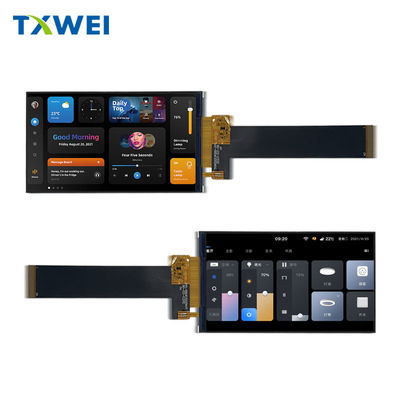

TXW500190B0 is a 5.0 inch 16:9 ratio full-color TFT LCD display screen with a resolution of up to 1200*1920. It has IPS full angle, high color gamut, high-definition, and high brightness display effect, with a wide temperature range of -20+70 working temperatures and a high brightness display of 1200cd/m²
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, and a delivery yield rate of 99.7%, with professional after-sales service guarantee.
This product is widely used in handheld PDAs, security devices, medical display panels, photography equipment, industrial endoscopes, etc.
Product Description:
Team Source Display model 5.0 inch TXW500190B0 is a high quality color TFT LCD panel with capacitive touch screen. This 5.0 inch
IPS LCD module was compose of LCD, backlight, driver circuit and FPC. The resolution of this 5.0 inch LCD panel is 1200*1920, and
support connect by MIPI BIT Interface and drive by HX8399 driver IC.
The outline size of this TXW500190B0 is 64.76*118.7*1.5mm and the active area size is 61.88*110.02mm We support to custom the size
Product parameters:
| Type | 5.0 Inch TFT LCD Display |
| Model Number |
TXW500190B0 |
| resolution ratio |
1200*1920 |
| Outline mm |
64.76*118.7*1.5mm |
| AA mm |
61.88*110.02mm |
| Interface |
MIPI BIT Interface |
| Luminance | 1200cd/m² |
| Driver IC |
HX8399 |
| Viewing Direction | All O'clock |
| TP/Lens | CTP |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Original Place | Dongguan, CN |
| Brand Name | TXWEI |
| Supply Ability | 1500000 per month |
| Customized | FPC, CTP/RTP, logo, color , size etc |
| Payment | T/T Paypal, WU, CC etc. |
| Color Depth | 16.7M |
| Size | 5 inch |
|
Lcm pin n count |
40 pin |
Company Profile:
Brand: Tianxianwei was founded in 2014, specializing in the research, development, manufacturing, production, and sales of matching solutions for 0.96-32-inch LCD TFT full-color LCD screens, capacitive touch screens. The factory is located in Shenzhen, China, with a factory area of over 3000 square meters.
Pre-sales service:
1.Our team design and make solutions based on different requirements from different customers.
2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.
After-sales services:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We have professional engineer customer to keep fastly reply.
Our Certificates:
The Tianxianwei factory has passed certifications such as ISO9001, ISO14001, IATF16949, etc. Please feel free to contact us for more certifications
Product Applications:
Our TFT liquid crystal displays are mainly used in communication equipment, consumer electronics, industrial applications, office automation, smart applications, automobiles, IT products, medical applications and other fields. Wherever there is a demand for LCD, our products can be used.
The company has won more than 10 invention patents and multiple utility model patents, and has numerous original products. The company has passed ISO14001/16949 certification/ISO9001 quality management system certification and strictly follows ISO principles for management and operation.
Shenzhen Tianxianwei Technology Co., Ltd. has won the recognition of customers for its thoughtful and enthusiastic service, strong research and development and production capabilities, and excellent product quality. It is constantly praised in the industry. We sincerely welcome friends from all walks of life to visit, guide, and negotiate business. "Selecting Tianxianwei on the screen is reassuring and worry free"!
