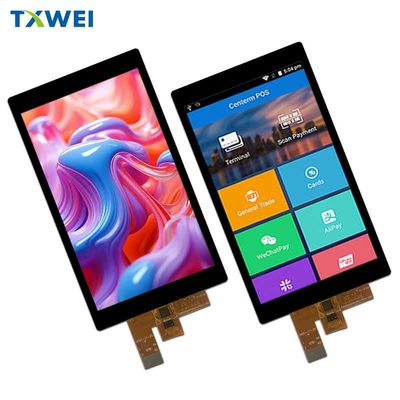

Multi Touch PCAP TFT 5.5 Inch Display MIPI Interface 1080*1920 Pixels Low Price Garrantee

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16 days
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Shenzhen, Guangdong
Brand Name
TXWEI
Certification
ISO9001 IS014001 IATF16949
Model Number
TXW550040N0-CTP
Highlight:

HX8399C IPS TFT LCD display

,

MIPI interface IPS TFT LCD display

,

5.5 inch LCD Display Module

Product Description





5.5 INCH TOUCH PCAP TFT MIPI INTERFACE PRODUCT INTRODUCTION



TFT (Thin Film Transistor) is a liquid crystal display technology that has the characteristics of fast response speed and high color reproducibility. The product TXW550040N0-CTP adopts IPS technology, providing nearly 180 degree panoramic display capability, which can maintain color consistency and accuracy from any angle. On the capacitive touch screen, GT911 is a high-performance capacitive touch screen control chip that supports multi touch and provides users with a smooth interactive experience. Combining touch accuracy and response speed with the GT911 chip, the 5.5-inch TFT display IPS panoramic LCD screen can achieve high-precision touch operation and fast response. Tianxianwei is an expert in IPS products, providing customers with over 500 types of IPS products applied in various industries.

The TXW550040N0-CTP display screen has a high-definition resolution of 1080 * 1920, ensuring the clarity of images and the richness of details. The brightness reaches 1100cd/m ², providing good visibility even in strong light environments. Tianxianwei TXW550040N0-CTP can achieve various brightness levels according to customer needs.

The TXW550040N0-CTP display screen is widely used in outdoor handheld PDAs, photography equipment, instruments, unmanned aerial vehicle remote controllers, and other fields. Its high resolution and multi touch functionality provide users with a rich interactive experience and convenient operation methods.


Features



Item Specification Unit
Screen Size 5.5 inch
Number of Pixel

1080*3RGB(H)X1920(V)

 Pixels
Display area

68.04(H) * 120.96(V)

 mm
Pixel pitch

0.021(H) *0.063(V)

 mm
Outline Dimension

75.8(W) ×139.9(H) ×3.49(T)

 mm
Pixel arrangement RGB Vertical Stripe ―
Display mode Normally Black ―
Viewing Direction(eye) ALL ―
Display Color 262K ―
Luminance(cd/m2) 1100 nits
Contrast Ratio 800:1 ―
Interface MIPI
Back-light LED Side-light type ―
LCM IC

HX8399C


CTP IC GT911
Operation Temperature -20~60 ℃
Storage Temperature -30~70 ℃







Outline Drawing



Multi Touch PCAP TFT 5.5 Inch Display MIPI Interface 1080*1920 Pixels Low Price Garrantee 0





Multi Touch PCAP TFT 5.5 Inch Display MIPI Interface 1080*1920 Pixels Low Price Garrantee 1









Module Function Description



Pin No Symbol Description
1 GND Power Ground
2 GND Power Ground
3 CTP_RST Touch panel reset
4 RESET Reset signal input terminal. Active at ‘L’.
5 CTP_INT Touch panel interrupt output
6 TE Tearing effect signal is used to synchronize MCU to frame memory
7 CTP_SDA Touch panel I2C data
8 LCD_ID Not connected
9 CTP_SCL Touch panel I2C clock
10 GND Power Ground
11 CTP_VCC Touch panel Power supply 2.8~3.3V
12 D0N High speed interface data differential signal input/output pins
13 GND Power Ground
14 D0P High speed interface data differential signal input/output pins
15 LEDA Power supply for backlight anode input terminal.
16 GND Power Ground
17 LEDA Power supply for backlight anode input terminal.
18 D1N High speed interface data differential signal input/output pins
19 GND Power Ground
20 D1P High speed interface data differential signal input/output pins
21 LEDK Power supply for backlight cathode input terminal.
22 GND Power Ground
23 LEDK Power supply for backlight cathode input terminal.
24 CLKN High speed interface clock differential signal input/output pins
25 LEDK Power supply for backlight cathode input terminal.
26 CLKP High speed interface clock differential signal input/output pins
27 GND Power Ground
28 GND Power Ground
29 PWM This pin is connecting with the external LED driver.
30 D2N High speed interface data differential signal input/output pins
31 IOVCC 1.8V Power Supply For I/O.
32 D2P High speed interface data differential signal input/output pins
33 GND Power Ground
34 GND Power Ground
35 VSP External input voltage(4.8V~6V)
36 D3N High speed interface data differential signal input/output pins
37 VSN External input voltage(-4.8V~-6V)
38 D3P High speed interface data differential signal input/output pins
39 GND Power Ground
40 GND Power Ground





Absolute Maximum Rating

Characteristics Symbol Min. Max. Unit
LCM Operating Temperature TOPR -20 +60 °C
LCM Storage Temperature TSTG -30 +70 °C
TP Operating Temperature & Humidity(20% ~ 90%RH) TOPR -20 +60 °C
TP SStorage Temperature & Humidity(20% ~ 90%RH) TSTG -30 +70 °C
Humidity RH - 90 %





TFT DC Characteristics

Characteristics Symbol Min. Typ. Max. Unit Note
Supply Voltage for I/O VDDIO 1.65 1.8 3.3 V
External Input Voltage for(DC/DC) VSP 4.8 -- 6.0 V
External Input Voltage for(DC/DC) VSN -6.0 -- -4.8 V





Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 15 white LEDs. The characteristics of the back-light are shown in the following tables.

Characteristics Symbol Min. Type Max. Unit Notes
Forward Voltage VF 28 -- 32 V -
Forward current IF -- 60 - mA -
Luminance(With LCD+CTP) Lv -- 1200 -- cd/m2 -
LED life time N/A ---- 30,000 -- Hr Note 1



Note:

  • The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.





Reliability Test Item



No. Test Item Test Condition Notes
1 High Temp. Storage +70°C / 96H

1. Functional test isOK.

Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed.

2. No low

temperature bubbles,end seal loose andfall, frame rainbow.
2 Low Temp. Storage -30°C / 96H
3 High Tempe. Operating +60°C / 96H
4 Low Tempe. Operating -20°C / 96H
5 High Temperature /Humidity storage 50°C x 90%RH /96H
6 Thermal and cold shock Static state, -20℃(30min) ~60℃ (30min),10 cycles







Product Image

Multi Touch PCAP TFT 5.5 Inch Display MIPI Interface 1080*1920 Pixels Low Price Garrantee 2



Multi Touch PCAP TFT 5.5 Inch Display MIPI Interface 1080*1920 Pixels Low Price Garrantee 3



Multi Touch PCAP TFT 5.5 Inch Display MIPI Interface 1080*1920 Pixels Low Price Garrantee 4

Facilities and Certificates

Multi Touch PCAP TFT 5.5 Inch Display MIPI Interface 1080*1920 Pixels Low Price Garrantee 5

Multi Touch PCAP TFT 5.5 Inch Display MIPI Interface 1080*1920 Pixels Low Price Garrantee 6
