TFT 5 Inch LCD Touch Screen 720*1280 High resolution LVDS Interface

Lcd modules Manufacturer 720*1280​,LVDS BIT interface IPS 5 inch LCD display screen

Product Description:

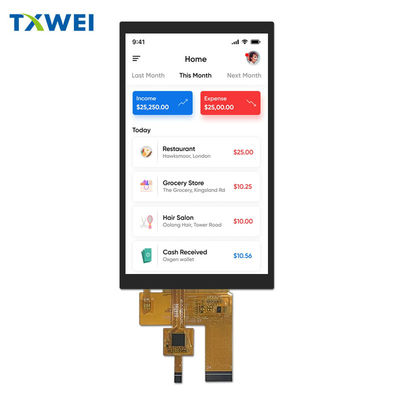

Team Source Display model 5.0 inch TXW500188B0-LM​​ is a high quality color TFT LCD panel with capacitive touch screen. This 5.0 inch

IPS LCD module was compose of LCD, backlight, driver circuit and FPC. The resolution of this 5.0 inch LCD panel is 720*1280, and

support connect by LVDS BIT interface and drive by NV3051F-L driver IC.

The outline size of this TXW500188B0-LM​​ is 68.2*122.78*2.89mm and the active area size is 62.1*110.4mm We support to custom the size

Product parameters:

Company Profile:

Brand: Tianxianwei was founded in 2014, specializing in the research, development, manufacturing, production, and sales of matching solutions for 0.96-32-inch LCD TFT full-color LCD screens, capacitive touch screens. The factory is located in Shenzhen, China, with a factory area of over 3000 square meters.

TXW500188B0-LM is a 5.0-inch 16:9 ratio full-color TFT capacitive touch LCD display screen with a resolution of up to 720 * 1280, IPS full view high-definition high brightness display effect, wide temperature range of -20+70 working temperature, high brightness display of 350cd/m ², LVDS interface.

This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.

This product is widely used in payment devices, monitoring device displays, access control attendance devices, security devices, handheld devices, children's education display panels, etc.

Pre-sales service:

1.Our team design and make solutions based on different requirements from different customers.
2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.

After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We have professional engineer customer to keep fastly reply.

Our Certificates:

The Tianxianwei factory has passed certifications such as ISO9001, ISO14001, IATF16949, etc. Please feel free to contact us for more certifications

Product Applications:

Our TFT liquid crystal displays are mainly used in communication equipment, consumer electronics, industrial applications, office automation, smart applications, automobiles, IT products, medical applications and other fields. Wherever there is a demand for LCD, our products can be used.

FAQ

1. Are you a color TFT LCD display mannufaturer or a trader?

A: We have our own factory in Shenzhen, China, and TXWEI supports OEM/ODM services.

2. What range of TFT LCD display you are provide now?

A: We provide professional customized solutions for 0.96-32 inch TFT LCD screens, LCD TFT full-color LCD screens, capacitive touch screens, and other related products

3. Do you support custom logo on the CTP?

A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
