Lcd modules Manufacturer 1080*1920 , MIPI interface IPS 5.2 inch LCD display screen
Product Description:

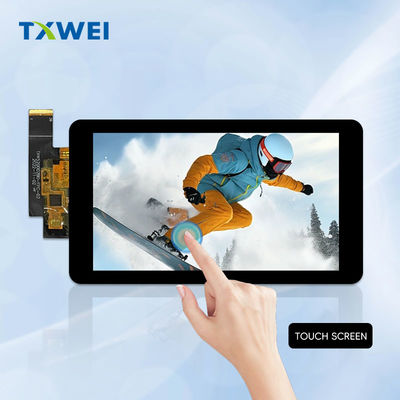

Team Source Display model 5.0 inch TXW520002B0-CTP is a high quality color TFT LCD panel with capacitive touch screen. This 5.0 inch
IPS LCD module was compose of LCD, backlight, driver circuit and FPC. The resolution of this 5.0 inch LCD panel is 1080*1920, and
support connect by MIPI Interface and drive by HX8399C driver IC.
The outline size of this TXW520002B0-CTP is 77.5*137*2.7mm and the active area size is 64.8*115.2mm We support to custom the size
TXW520002B0-CTP is a 5.2-inch 16:9 ratio full-color LTPS capacitive touch LCD display screen with a resolution of up to 1080 * 1920, IPS full view high-definition high brightness display effect, working temperature of -20+70, storage temperature of -30+80, customizable capacitive touch, backlight brightness and structure, FPC output and structure, high brightness display of 1100cd/m².
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.
This product is widely used in outdoor handheld PDA device display, photography equipment display, instrument display, drone remote control handle display, handheld PDA and other fields.
Product parameters:
| Type | 5.0 Inch TFT LCD Display |
| Model Number |
TXW520002B0-CTP |
| resolution ratio |
1080*3RGB(H)X1920(V) |
| Outline mm |
77.5*137*2.7mm |
| AA mm |
64.8(H) * 115.2(V)mm |
| Interface |
MIPI Interface |
| Luminance | 1200cd/m² |
| Driver IC |
HX8399C |
| Viewing Direction | All O'clock |
| TP/Lens | CTP |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Original Place | Dongguan, CN |
| Brand Name | TXWEI |
| Supply Ability | 1500000 per month |
| Customized | FPC, CTP/RTP, logo, color , size etc |
| Payment | T/T Paypal, WU, CC etc. |
| Color Depth | 16.7M |
| Size | 5.2 inch |
|
Lcm pin n count |
39 pin |
Company Profile:
Brand: Tianxianwei was founded in 2014, specializing in the research, development, manufacturing, production, and sales of matching solutions for 0.96-32-inch LCD TFT full-color LCD screens, capacitive touch screens. The factory is located in Shenzhen, China, with a factory area of over 3000 square meters.
Looking for a customizable TFT LCD module for your display needs? Look no further than TXWEI! Our TFT LCD module, also known as a TFT LCD screen or TFT touch display, is the perfect solution for your display requirements.
With our brand name, TXWEI, you can trust in the quality and reliability of our products. Our TFT LCD module is the model number TXW520002B0-CTP, which is manufactured in Guangdong, China.
Rest assured that our product has passed the necessary certifications for quality and safety, including CE, ROHS, and FCC.
Our minimum order quantity and pricing can be negotiated to meet your specific needs. We understand that each customer may have different requirements and we are committed to providing a tailored solution for you.
Our TFT LCD module is packaged in sturdy cardboard for protection during transportation. With a delivery time of just 16 days, you can have your customized TFT LCD module in no time.
We offer flexible payment terms, including L/C, TT, and D/P, to make the ordering process as smooth as possible for our customers.
With a supply ability of 10,000pcs, we can meet the demands of large orders without compromising on quality.
Choose TXWEI for your TFT LCD module needs and experience our top-notch customization service. Contact us now for more information!
