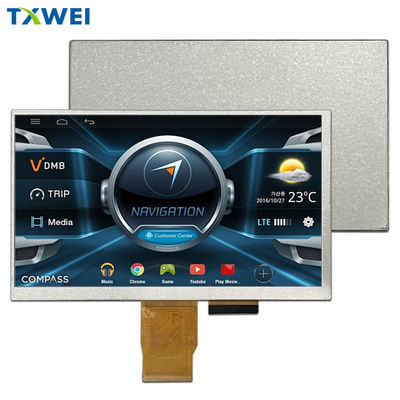

7-inch 450cd/m2 RGB 24 Bit Interface HX8282A11 Car Instrument TFT LCD Display Screen

Products

7-inch 450cd/m2 RGB 24 Bit Interface HX8282A11 Car Instrument TFT LCD Display Screen

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW700076N0

Active Area:

154.21(H) * 85.92(V)

Lumens Degrees:

450cd/m²

LCM Driver IC:

HX8282A11

LCM Interface:

RGB 24 Bit Interface

Size:

Lcm Pin N Count:

50Pin

Operating temperature:

-20+70

Highlight:

Car Instrument TFT LCD Display Screen

450cd/m2 TFT LCD Display Screen

Car Instrument 7 Inch LCD Module

Product Description

TFT 7 Inch QVGA 1024*600 HX8282A11 RGB 24 Bit Interface 50 Pin LCD Screen 8.9-10V

7" inch QVGA TFT RGB LCD Description

Product Quick Details:
1. LCD Size: 7” inch TFT
2. Resolution: 1024*600 dots
3. Viewing Angle: 12 O'Clock
4. Outline Dimension: 164.9*100*3.5 mm
5. Driver IC: HX8282A11
6. Interface Type: RGB
7. Touch Panel: Without Touch Panel (Customizable)
8. Temperature: Top -30°C to +85°C; Tst -30°C to +85°C

Product:	7" QVGA RGB TFT LCD	Resolution:	1024*600 Dots
Touch Screen:	Without Touch Screen ( Customizable )	Viewing Direction:	12 O'clock
Interface:	RGB 24 bits	Pin Number:	50 Pins
LCM Driver IC :	HX8282A11	Surface Luminance:	450 Cd/m²
Operating Temp.:	-30℃ To +85℃	Compliance:	CE & FCC & RoHS Compliant

Application

This product is widely used in fields such as motorcycle instruments, car navigation, electric vehicle instruments, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, human-machine interface operation panels, etc.

Product Advantages
1.Excellent display performance of background color, luminance, viewing angle, and intensity etc. surface luminance can be reach 450 nits.
2.High quality level for industrial Human machine interface operation panel and medical applications.
3.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
4.Price competitive solution with good quality among the same kinds in the LCD industry.
5.Easy to install and easy to maintain.

6.This product boasts several certifications, including CE, ROHS, and FCC, ensuring that it meets the highest standards of quality and safety. With a minimum order quantity and price that can be negotiated, this LCD module is an affordable option for businesses of all sizes.

7" inch QVGA TFT RGB LCD Drawing

7-inch 450cd/m2 RGB 24 Bit Interface HX8282A11 Car Instrument TFT LCD Display Screen 0

7-inch 450cd/m2 RGB 24 Bit Interface HX8282A11 Car Instrument TFT LCD Display Screen 1

TFT DC Characteristics

7-inch 450cd/m2 RGB 24 Bit Interface HX8282A11 Car Instrument TFT LCD Display Screen 2

Note 1: VCOM value should be adjusted by different condition to optimize Flicker Value.

Note 2: VGH and VGL are the operating voltages of TFT gate.

Note 3: Adjust the contrast, make the color bigger and darker, and make the color smaller and lighter.

Module Function Description

7-inch 450cd/m2 RGB 24 Bit Interface HX8282A11 Car Instrument TFT LCD Display Screen 3

Optical Characteristics

7-inch 450cd/m2 RGB 24 Bit Interface HX8282A11 Car Instrument TFT LCD Display Screen 4

*Note (1)Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.Contrast Ratio (CR)=L255/L0
L 255 : Luminance of gray level 255
L 0: Luminance of gray level 0

7" inch QVGA TFT RGB LCD Real Product Image

FACTORY AND FACILITIES

7-inch 450cd/m2 RGB 24 Bit Interface HX8282A11 Car Instrument TFT LCD Display Screen 9

7-inch 450cd/m2 RGB 24 Bit Interface HX8282A11 Car Instrument TFT LCD Display Screen 10
