About this item TXW700078S0-CTP
Overview

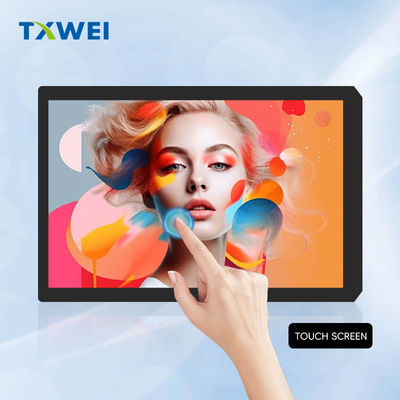

Our 7-inch High Brightness TFT LCD display is designed to deliver superior visual performance in challenging lighting conditions. With an impressive brightness of 1100 nits and a full HD resolution of 800*1280 dots, this display is perfect for applications requiring clarity and vibrancy. Its MIPI (Mobile Industry Processor Interface) interface ensures high-speed data transfer and optimal image quality, making it suitable for various industrial, commercial, and consumer applications.
Application scenarios
This product is widely used in fields such as drone remote controllers, payment terminals, industrial security, instrumentation, medical equipment, handheld PDAs, etc.
The 7-inch High Brightness TFT LCD display combines cutting-edge technology, high performance, and versatility, making it an excellent choice for a wide range of applications. Whether used in outdoor environments or industrial settings, this display guarantees visibility and reliability, enhancing user experience and satisfaction.
Features
| Parameter | Specification | Unit | Remark |
| Outline Size |
108.1*164.2*4.45 |
mm | FOG |
| Active Area |
94.2(H) * 150.72(V) |
mm | Note 1.1 |
| Brightness |
1100 |
cd/m² | - |
| Number of Pixels |
800*3RGB(H)X1280(V) |
pixels | - |
| Pixel Pitch |
0.11775(H) *0.11775(V) |
MM | - |
|
Touch screen structure |
G+G |
- | - |
|
Touch Driver IC |
GT911 |
- | - |
|
Touch Interface |
IIC |
||
| Color Gamut | 70%(Min.), 75% (Typ.) | CF @C Light | |
| Display Mode | Normally Black | - | - |
| Viewing Direction | 85/85/85/85 (Typ.) 80/80/80/80 (Min.) | Deg. | CR>=10 |
|
Lcm pin n count |
39 |
PIN |
- |
| interface |
MIPI Interface |
- | - |
|
LCM Driver IC |
ILI9881C |
Note : H: horizontal length, V: vertical length.
Note : Compatible ICs for this product include ILI9881C, Touch Driver IC GT911 Please contact IC manufacturer and vetify it when you choose any one of them. The information we suppose about IC just for reference.
Mechanical Drawing
Absolute Maximum Rating
| Characteristics | Symbol | Min. | Max. | Unit |
| LCM Operating Temperature | Topr | -20 | +60 | °C |
| LCM Storage Temperature | Tstg | -30 | +70 | °C |
| TP Operating Temperature & Humidity (20% ~ 90%RH) | Topr | -20 | +60 | °C |
| TP SStorage Temperature & Humidity (20% ~ 90%RH) | Tstg | -30 | +70 | °C |
| Humidity | RH | -- | 90 | % |
Back-Light Unit Characeristics
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 28 | -- | 30 | V | -- |
| Forward current | IF | -- | 80 | -- | mA | -- |
| Luminance(With LCD+CTP) | Lv | -- | 950 | -- | cd/m² | -- |
| LED life time | N/A | -- | 20,000 | -- | Hr | -- |
Note: (1) The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.
Module Function Description
| No. | Symbol | LCM Functional | No. | Symbol | LCM Functional |
| 1-2 | GND | Power Ground | 20 | MIPI_D1+ | MIPI-DSI Data differential signal input pins |
| 3 | CTP_RST 1.8V | Touch panel reset | 21 | LEDK | Power supply for backlight cathode input terminal. |
| 4 | LCD-RESET | Reset pin. Setting either pin low initializes the LSI | 22 | GND+ | Power Ground |
| 5 | CTP_INT 1.8V | Touch panel interrupt output | 23 | LEDK | Power supply for backlight cathode input terminal. |
| 6 | TE | Frame head pulse for tearing effect | 24 | MIPI_CLK- | MIPI-DSI CLOCK differential signal input pins |
| 7 | CTP_SDA 1.8V | Touch panel I2C data | 25 | LEDK | Power supply for backlight cathode input terminal. |
| 8 | LCD-ID | ID read PIN for ID circuit. | 26 | MIPI_CLK+ | MIPI-DSI CLOCK differential signal input pins |
| 9 | CTP_SCL 1.8V | Touch panel I2C clock | 27-28 | GND | Power Ground |
| 10 | GND | Power Ground | 29 | PWM | PWM (Pulse Width Modulation) Signal Of LED Driving. |
| 11 | CTP_VCC 3.3V | Touch panel Power supply 2.8~3.3V | 30 | MIPI_D2- | MIPI-DSI Data differential signal input pins |
| 12 | MIPI_D0- | MIPI-DSI Data differential signal input pins | 31 | LCD-VDDIO/1.8V | power supply for the I/O circuit |
| 13 | GND | Power Ground | 32 | MIPI_D2+ | MIPI-DSI Data differential signal input pins |
| 14 | MIPI_D0+ | MIPI-DSI Data differential signal input pins | 33-34 | GND | Power Ground |
| 15 | LEDA | Power supply for backlight anode input terminal. | 35 | VSP | External input voltage(4.8V~6V) |
| 16 | GND | Power Ground | 36 | MIPI_D3- | MIPI-DSI Data differential signal input pins |
| 17 | LEDA | Power supply for backlight anode input terminal. | 37 | VSN | External input voltage(-4.8V~-6V) |
| 18 | MIPI_D1- | MIPI-DSI Data differential signal input pins | 38 | MIPI_D3+ | MIPI-DSI Data differential signal input pin |
| 19 | GND | Power Ground | 39-40 | GND | Power Ground |
