7-inch 450cd/m2 Car Instrument Display Panel 1024*600 MIPI Interface 40pin LCD Display Screen

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW700101N0
Pixel Pitch (W*H):
0.1506*0.1432
Lumens Degrees:
450cd/m²
Lcm Pin N Count:
30Pin
LCM Interface:
MIPI Interface
Size:
7.0
Active Area:
154.21(H) * 85.92(V)
Number Of Pixels:
1024*3RGB(H)X600(V)
Operating temperature:
-30+85
Highlight:

7-inch car instrument display panel

,

MIPI Interface LCD Display Screen

,

450cd/m2 car instrument display panel

Product Description

7-inch LCD screen 30 pin 1024 * 600 TFT display MIPI interface product introduction



TXW700101N0 is a 7-inch 16:9 ratio full-color TFT LCD display screen with a resolution of 1024 * 600, IPS full view high-definition high brightness display effect, wide temperature range of -30+85 working temperature, and high brightness display of 450cd/m².It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.



This product is widely used in fields such as motorcycle instruments, car navigation, electric vehicle instruments, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, human-machine interface operation panels, etc.

Features:

  • Product Name: 7 Inch LCD Module
  • Size: 7.0
  • Storage Temperature: -30+85
  • Active Area: 154.21(H) * 85.92(V)
  • Number of Pixels: 1024*3RGB(H)X600(V)
  • LCM Interface: MIPI Interface



7 Inch TFT LCD Monitor, 7 Inch LCD Touch Screen Monitor, 7 Inch LCD Module Screen



Keywords: 7 Inch TFT Touch Display Module Touch Screen: customizable
Resolution: 800*480 Cover Glass Dimension: ODM/customizable
Interface: MIPI Surface Luminance: 450 Cd/m²
LED Life time: 30,000 Hours Pins: 30pin
LCM Driver IC:

EK79007AD2+EK73217BCGA

 Viewing Direction:

ALL O’CLOCK









7 inch MIPI Interface TFT  Display Module Drawing







7-inch 450cd/m2 Car Instrument Display Panel 1024*600 MIPI Interface 40pin LCD Display Screen 0









7-inch 450cd/m2 Car Instrument Display Panel 1024*600 MIPI Interface 40pin LCD Display Screen 1





TFT features:
Structure: TFT PANNEL+IC +FPC+BL

ALL O'CLOCK Type LCD

1024 dot-segment and 600 dot-common outputs

16.7M Color can be selected by software

White LED back light
4 lane MIPl interface
TP interface: 12C



LCM PIN Description:



7-inch 450cd/m2 Car Instrument Display Panel 1024*600 MIPI Interface 40pin LCD Display Screen 27-inch 450cd/m2 Car Instrument Display Panel 1024*600 MIPI Interface 40pin LCD Display Screen 3





Optical Characteristies



7-inch 450cd/m2 Car Instrument Display Panel 1024*600 MIPI Interface 40pin LCD Display Screen 4



*Note (1)Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.Contrast Ratio (CR)=L255/LO
L 255 : Luminance of gray level 255
L 0: Luminance of gray level 0





TFT DC Characteristics



7-inch 450cd/m2 Car Instrument Display Panel 1024*600 MIPI Interface 40pin LCD Display Screen 5

Note: (1) Vcom must be adjusted to optimize display quality: cross-talk, contrast ratio and etc.

(2)VGH is TFT gate operating voltage

(3) VGL is TFT gate operating voltage

(4)Environmental condition:25+5

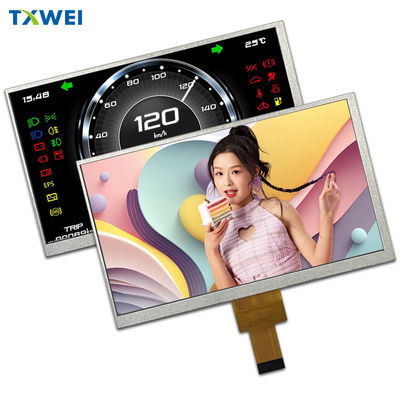

7 inch RGB TFT Display Module Product Image

7-inch 450cd/m2 Car Instrument Display Panel 1024*600 MIPI Interface 40pin LCD Display Screen 6

7-inch 450cd/m2 Car Instrument Display Panel 1024*600 MIPI Interface 40pin LCD Display Screen 7



7-inch 450cd/m2 Car Instrument Display Panel 1024*600 MIPI Interface 40pin LCD Display Screen 8

Tags:

800 x 1280 7 Inch LCD Module,

High Brightness 7 inch lcd display,

Custom 7 Inch LCD Module
