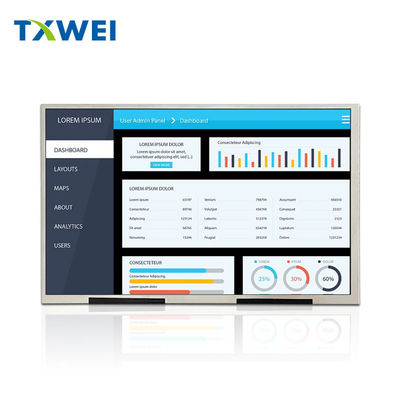

10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel

10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW100048N2
Active Area:
216.96(H) * 135.6(V)
Size:
10.1
Voltage:
8.8-10.8V
Storage temperature:
-20+70
Backlight Current:
120mA
Pixel Pitch (W*H):
0.0565*0.1695
Number Of Pixels:
1280*3RGB(H)X800(V)
Highlight:

1280x800 TFT LCD Display Panel

,

10.1 Inch TFT LCD Display Panel

,

TFT LCD Display Panel OEM

Product Description

10.1 Inch Industrial TFT Display 350 Nits LVDS 1280*800 Pixel Product Introduction

TXW100048N2 is a 10.1-inch 16:10 aspect ratio full-color TFT LCD display with a resolution of 1280 * 800, IPS full view high-definition high brightness display, wide temperature range of -20+70 working temperature, high brightness display of 350cd/m²
This product is widely used in fields such as device control panels, mobile payment products, security access control products, instruments and meters, medical equipment, smart homes, the Internet of Things, and household appliances.
Product: 10.1 Inch Industrial TFT Display
Resolution:

1280*800

Surface Luminance: 350cd/m²(nits)
Interface:

LVDS 8 BIT Interface

Pin Number: 40pins
Viewing Direction: IPS, All Viewing Angle (85/85/85/85)
Outline Dim.:

229.46*149.1*2.6(mm)

Active Area:

216.96(H) * 135.6(V)(mm)

Surface Treatment: Hard Coating(3H)
Haze: 25%
Touch Screen: With CTP Optional
Display Colors: 16.7 M
Operating Temp.: -20℃ To +70℃
Storage Temp.: -30℃ To +80℃

Backlight leds:

39pcs

LED Life Time: 30,000 Hours
Certificate: ISO9001:2015 / ISO1400:2015
Compliance: CE&FCC & RoHS Compliant





Product Drawing

10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 0

10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 1



LCM Pin Description:



Pin No. Symbol Description
1 NC NC
2 VDD Power Voltage for digital circuit.
3 VDD Power Voltage for digital circuit.
4 NC NC
5 NC NC
6 NC NC
7 GND Ground
8 RXIN0- Negative LVDS Differential Data Input
9 RXIN0+ Positive LVDS Differential Data Input
10 GND Ground
11 RXIN1- Negative LVDS Differential Data Input
12 RXIN1+ Positive LVDS Differential Data Input
13 GND Ground
14 RXIN2- Negative LVDS Differential Data Input
15 RXIN2+ Positive LVDS Differential Data Input
16 GND Ground
17 RXCLKIN- Negative LVDS Differential Clock Input
18 RXCLKIN+ Positive LVDS Differential Clock Input
19 GND Ground
20 RXIN3- Negative LVDS Differential Data Input
21 RXIN3+ Positive LVDS Differential Data Input
22 GND Ground
23 NC NC
24 NC NC
25 GND Ground
26 NC NC
27 NC NC
28 NC NC
29 AVDD Power for Analog Circuit
30 GND Ground
31 LEDK Power supply for backlight cathode input terminal.
32 LEDK Power supply for backlight cathode input terminal.
33 NC NC
34 NC NC
35 VGL Gate OFF Voltage
36 NC NC
37 NC NC
38 VGH Gate ON Voltage
39 LEDA Power Supply For LED Backlight Anode Input.
40 LEDA Power Supply For LED Backlight Anode Input.


Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 42 white LEDs. The characteristics of the back-light

are shown in the following tables.

Characteristics Symbol Min. Type Max. Unit Notes
Forward Voltage VF 8.4 -- 10.5 V --
Forward current IF -- 280 -- mA --
Luminance(With LCD) Lv -- 400 -- cd/m2 --
LED life time N/A -- 30,000 -- Hr Note 1



Note:

  • The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.
  • Optical Characteristics

10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 2

Test Conditions:
1.VDD=2.5V, the ambient temperature is 25℃.2. The test systems refer to Note 2.3. The optical specificaitons are measured base on Innolux LCM

Reliability Test Item
No. Test Item Test Condition Notes
1 High Temp. Storage +80°C / 96H

1. Functional test isOK.

Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed.

2. No low

temperature bubbles,end seal loose andfall, frame rainbow.





2 Low Temp. Storage -30°C / 96H
3 High Tempe. Operating +70°C / 96H
4 Low Tempe. Operating -20°C / 96H
5 High Temperature /Humidity storage 50°C x 90%RH /96H
6 Thermal and cold shock Static state, -20℃(30min) ~60℃ (30min),10 cycles







Product Image



10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 3













10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 4







Factory Facilities and Certificates



10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 5





Projected Capacitive (PCAP) Touch Screen

PCAP touch technology provides fast and sensitive response, as well as professional level reliability. Tianxianwei's projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine the PCAP touch screen with a liquid crystal display (LCD), which is an integrated embedded solution that helps simplify the supply chain and assembly.





10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 6

10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 7

Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232





10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 8





10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 9





Why Choose us



1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays?
Tianxianwei can meet your custom LCD requirements.

2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen?
Tianxianwei can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability

Tianxianwei is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, CE,FCC and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.

Search keyword: sunlight readable TFT display 10.1 inch, industrial TFT display 10.1 inch, PCAP TFT LCD 10.1 inch, PCAP TFT LCD 10.1 inch, tft 10.1 ", 10.1 inch tft lcd sunlight readable, 10.1 " tft lcd sunlight readable, 10.1 inch tft lcd, tft lcd 10.1 , 10.1 tft display, 10.1 " tft display, 10.1 inch tft display, tft display 10.1 inch, tft display 10.1 ", 10.1 inch tft lcd display, 10.1 " tft screen, 10.1 inch tft screen, tft screen 10.1 inch, tft screen 10.1 ", 10.1 inch tft lcd screen, 1280*800 TFT, 10.1 inch 1280*800, 10.1 inch LVDS











products
PRODUCTS DETAILS
10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel
MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW100048N2
Active Area:
216.96(H) * 135.6(V)
Size:
10.1
Voltage:
8.8-10.8V
Storage temperature:
-20+70
Backlight Current:
120mA
Pixel Pitch (W*H):
0.0565*0.1695
Number Of Pixels:
1280*3RGB(H)X800(V)
Minimum Order Quantity:
negotiate
Price:
negotiate
Packaging Details:
cardboard
Delivery Time:
16
Payment Terms:
L/C TT D/P
Supply Ability:
10000pcs
Highlight

1280x800 TFT LCD Display Panel

,

10.1 Inch TFT LCD Display Panel

,

TFT LCD Display Panel OEM

Product Description

10.1 Inch Industrial TFT Display 350 Nits LVDS 1280*800 Pixel Product Introduction

TXW100048N2 is a 10.1-inch 16:10 aspect ratio full-color TFT LCD display with a resolution of 1280 * 800, IPS full view high-definition high brightness display, wide temperature range of -20+70 working temperature, high brightness display of 350cd/m²
This product is widely used in fields such as device control panels, mobile payment products, security access control products, instruments and meters, medical equipment, smart homes, the Internet of Things, and household appliances.
Product: 10.1 Inch Industrial TFT Display
Resolution:

1280*800

Surface Luminance: 350cd/m²(nits)
Interface:

LVDS 8 BIT Interface

Pin Number: 40pins
Viewing Direction: IPS, All Viewing Angle (85/85/85/85)
Outline Dim.:

229.46*149.1*2.6(mm)

Active Area:

216.96(H) * 135.6(V)(mm)

Surface Treatment: Hard Coating(3H)
Haze: 25%
Touch Screen: With CTP Optional
Display Colors: 16.7 M
Operating Temp.: -20℃ To +70℃
Storage Temp.: -30℃ To +80℃

Backlight leds:

39pcs

LED Life Time: 30,000 Hours
Certificate: ISO9001:2015 / ISO1400:2015
Compliance: CE&FCC & RoHS Compliant





Product Drawing

10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 0

10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 1



LCM Pin Description:



Pin No. Symbol Description
1 NC NC
2 VDD Power Voltage for digital circuit.
3 VDD Power Voltage for digital circuit.
4 NC NC
5 NC NC
6 NC NC
7 GND Ground
8 RXIN0- Negative LVDS Differential Data Input
9 RXIN0+ Positive LVDS Differential Data Input
10 GND Ground
11 RXIN1- Negative LVDS Differential Data Input
12 RXIN1+ Positive LVDS Differential Data Input
13 GND Ground
14 RXIN2- Negative LVDS Differential Data Input
15 RXIN2+ Positive LVDS Differential Data Input
16 GND Ground
17 RXCLKIN- Negative LVDS Differential Clock Input
18 RXCLKIN+ Positive LVDS Differential Clock Input
19 GND Ground
20 RXIN3- Negative LVDS Differential Data Input
21 RXIN3+ Positive LVDS Differential Data Input
22 GND Ground
23 NC NC
24 NC NC
25 GND Ground
26 NC NC
27 NC NC
28 NC NC
29 AVDD Power for Analog Circuit
30 GND Ground
31 LEDK Power supply for backlight cathode input terminal.
32 LEDK Power supply for backlight cathode input terminal.
33 NC NC
34 NC NC
35 VGL Gate OFF Voltage
36 NC NC
37 NC NC
38 VGH Gate ON Voltage
39 LEDA Power Supply For LED Backlight Anode Input.
40 LEDA Power Supply For LED Backlight Anode Input.


Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 42 white LEDs. The characteristics of the back-light

are shown in the following tables.

Characteristics Symbol Min. Type Max. Unit Notes
Forward Voltage VF 8.4 -- 10.5 V --
Forward current IF -- 280 -- mA --
Luminance(With LCD) Lv -- 400 -- cd/m2 --
LED life time N/A -- 30,000 -- Hr Note 1



Note:

  • The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.
  • Optical Characteristics

10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 2

Test Conditions:
1.VDD=2.5V, the ambient temperature is 25℃.2. The test systems refer to Note 2.3. The optical specificaitons are measured base on Innolux LCM

Reliability Test Item
No. Test Item Test Condition Notes
1 High Temp. Storage +80°C / 96H

1. Functional test isOK.

Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed.

2. No low

temperature bubbles,end seal loose andfall, frame rainbow.





2 Low Temp. Storage -30°C / 96H
3 High Tempe. Operating +70°C / 96H
4 Low Tempe. Operating -20°C / 96H
5 High Temperature /Humidity storage 50°C x 90%RH /96H
6 Thermal and cold shock Static state, -20℃(30min) ~60℃ (30min),10 cycles







Product Image



10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 3













10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 4







Factory Facilities and Certificates



10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 5





Projected Capacitive (PCAP) Touch Screen

PCAP touch technology provides fast and sensitive response, as well as professional level reliability. Tianxianwei's projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine the PCAP touch screen with a liquid crystal display (LCD), which is an integrated embedded solution that helps simplify the supply chain and assembly.





10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 6

10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 7

Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232





10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 8





10.1 Inch Industrial TFT Display 350 Nits LVDS 8 BIT Interface 1280*800 Pixel 9





Why Choose us



1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays?
Tianxianwei can meet your custom LCD requirements.

2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen?
Tianxianwei can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability

Tianxianwei is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, CE,FCC and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
