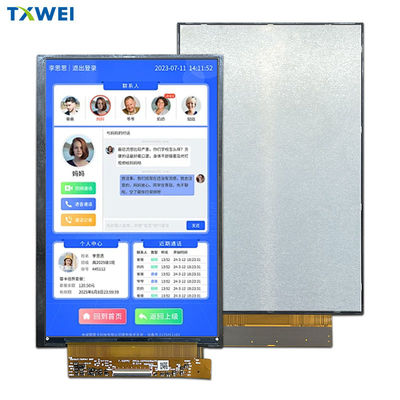

7.02 Inch TFT LCD Display HX8279 1200*1920 Dots 40 Pins MIPI Interface

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW702002B0
Active Area:
94.5(H) * 151.2(V)
Backlight Current:
180-300mA
Mechanical OutlineSize(W*H*T):
105.18×163.34×3.65
Size:
7.0
Lcm Pin N Count:
40Pin
Storage temperature:
-30+80
Operating temperature:
-20+70
Highlight:

Drone Remote Control Display Panel

,

7-inch Display Panel

Product Description

7.02" TFT 1200*1920 dots with RTP product introduction



TXW702002B0 is a 7.02-inch 16:10 aspect ratio full-color TFT LCD display with a resolution of up to 1200 * 1920 and IPS full view high-definition high brightness display effect. This TFT display supports MIPI interface. With the help of anti glare display surfaces, the screen does not reflect light and maintains better image quality.
The contrast ratio of this module is 500:1 (typical value), and the brightness is 1500-2000 nits (typical value). The power supply voltage range of LCM is 21.5-25.6V, and the module operates in the temperature range of -20 to+70 ℃, with storage temperature between -30 to+80 ℃.
This product is widely used in fields such as drone remote control panel display, photography equipment, military display equipment, industrial security, medical equipment, handheld PDAs, etc.



Features

Product Name: 7.02 Inch TFT LCD Display
Model Number: TXW702002B0
Size: 7.0 inches
Number of Pixels: 1200*3RGB(H)X1920(V)
Lumens Degrees: 1500-2000cd/m²
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Mechanical Outline Size (W*H*T): 105.18×163.34×3.65 mm
LCM Interface: MIPI Interface
Backlight Current: 180-300mA
LCM Pin n Count: 40 Pin







7.02" TFT 1200*1920 dots with RTP Product Drawing



7.02 Inch TFT LCD Display HX8279 1200*1920 Dots 40 Pins MIPI Interface 0

7.02 Inch TFT LCD Display HX8279 1200*1920 Dots 40 Pins MIPI Interface 1



Module Function Description



Pin No. Symbol Functional
1 NC No Connection.
2 IOVCC 1.8V Power Supply For I/O.
3 IOVCC 1.8V Power Supply For I/O.
4 GND Power Ground
5 RST Reset Signal input pin.
6 NC No Connection.
7 GND Power Ground
8 MIPI_0N High speed interface data differential signal input/output pins
9 MIPI_0P High speed interface data differential signal input/output pins
10 GND Power Ground
11 MIPI_1N High speed interface data differential signal input/output pins
12 MIPI_1P High speed interface data differential signal input/output pins
13 GND Power Ground
14 CLKN High speed interface clock differential signal input/output pins
15 CLKP High speed interface clock differential signal input/output pins
16 GND Power Ground
17 MIPI_2N High speed interface data differential signal input/output pins
18 MIPI_2P High speed interface data differential signal input/output pins
19 GND Power Ground
20 MIPI_3N High speed interface data differential signal input/output pins
21 MIPI_3P High speed interface data differential signal input/output pins
22 GND Power Ground
23 NC No Connection.
24 NC No Connection.
25 GND Power Ground
26 NC/TE No Connection.
27 PWMO PWM (Pulse Width Modulation) Signal Of LED Driving.
28 NC/BIST No Connection.
29 NC No Connection.
30 GND Power Ground
31 LEDK Power supply for backlight cathode input terminal.
32 LEDK Power supply for backlight cathode input terminal.
33 NC No Connection.
34 VSN External input voltage(-4.5V~ -6V)
35 VSN External input voltage(-4.5V~ -6V)
36 NC No Connection.
37 VSP External input voltage(4.5V~ 6V)
38 VSP External input voltage(4.5V~ 6V)
39 LEDA Power Supply For LED Backlight Anode Input.
40 LEDA Power Supply For LED Backlight Anode Input.





Absolute Maximum Rating

Characteristics Symbol Min. Max. Unit
LCM Operating Temperature TOPR -20 +70 °C
LCM Storage Temperature TSTG -30 +80 °C
Humidity RH

--

 90 %



TFT DC Characteristics

Characteristics Symbol Min. Typ. Max. Unit
Supply Voltage for I/O VDDIO 1.7 1.8 2.0 V
Supply Voltage for VSP VSP 4.5 5.5 6 V
Supply Voltage for VSN VSN -6 -5.5 -4.5 V





Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 48 white LEDs. The characteristics of the back-light

are shown in the following tables.

Characteristics Symbol Min. Type Max. Unit Notes
Forward Voltage VF 21.6 -- 25.6 V --
Forward current IF 180 240 300 mA --
Luminance(With LCD) Lv 1000 1300 1500 cd/m2 --
LED life time N/A -- 20,000 -- Hr Note 1



Note:

  • The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=40mA/LED. The LED life time could be decreased if operating IL is larger than 45mA/LED.



Optical Specification

7.02 Inch TFT LCD Display HX8279 1200*1920 Dots 40 Pins MIPI Interface 2

Reliability Test Item

No. Test Item Test Condition Notes
1 High Temp. Storage +80°C / 96H

1. Functional test isOK.

Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed.

2. No low

temperature bubbles,end seal loose andfall, frame rainbow.




2 Low Temp. Storage -30°C / 96H
3 High Tempe. Operating +70°C / 96H
4 Low Tempe. Operating -20°C / 96H
5 High Temperature /Humidity storage 60°C x 90%RH /96H
6 Thermal and cold shock Static state, -20℃(30min) ~70℃ (30min),10 cycles





7.02" TFT 800x480 dots with RTP Product Image

7.02 Inch TFT LCD Display HX8279 1200*1920 Dots 40 Pins MIPI Interface 3
7.02 Inch TFT LCD Display HX8279 1200*1920 Dots 40 Pins MIPI Interface 4
