IPS TFT LCD small size display 240x320 with resistive touch 3.2-inch LCD display

Product Description:

1. TXW320023S0-RTP is a 3.2-inch full-color TFT resistive touch LCD display screen with a resolution of 240 * 320, EWV wide-angle high-definition resistive touch screen, operating temperature of -20+70, and display brightness of 300cd/m ².
2. This product is widely used in access control door lock display, handheld display, instrument display, medical equipment display, household appliance display, industrial equipment display, etc.
3. Featuring an active area of 48.6*64.8, this 3.2 Inch LCD display screen delivers crisp and clear images with vibrant colors and excellent contrast. The pixel pitch of 0.2025*0.2025 ensures that images are sharp and detailed, making it easy to read text or view images from any angle.
4. With a resolution of 240*320 pixels, this 3.2 Inch LCD Touchscreen provides ample screen real estate for displaying all kinds of information. Whether you're looking to design a custom user interface or display important data, this LCD panel has you covered.
5. When it comes to brightness, this 3.2 Inch LCD Panel really shines. With a brightness rating of 300Cd/m², this display is easy to read even in bright sunlight or other challenging lighting conditions. Whether you're using it indoors or outdoors, this LCD panel is sure to deliver the visibility you need.

Product Quick Details:

1. LCD Size: 3.2” inch TFT
2. Resolution: 240x320 QVGA
3. Viewing Angle: ALL O’CLOCK
4. Outline Dimension: 55.04*77.5*3.76mm
5. LCD Driver IC: ILI9341V
6. LCD Interface Type: MCU 16 BIT
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Resistive Touch Screen(RTP)

Technical Parameters:



Product Features:
1. TXW320023S0-RTP is TFT LCD module is a 3.2 inch diagonal size, 240xRGBx320 QVGA, full color TFT LCD display.
2. This module supports MCU 16 BIT Interface. TXW320023S0-RTP model is having module dimension of 55.04*77.5*3.76 mm and Active area size of 48.6*64.8 mm;
3. TXW320023S0-RTP is integrated with ILI9341V controller on module, and its logic supply voltage ranges from 3.3V.
4. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
5. TXW320023S0-RTP is portrait type LCD module, with 300 cd/m² luminance. If you would like to use it in landscape mode or increase the luminance, please contact with us for more technical support.

Product Advantages:
1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3.High quality level for industrial and medical applications.
4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5.Price competitive solution with good quality among the same kinds in the LCD industry.
6.Easy to install and easy to maintain.

Application
This 3.2” TFT LCD module is widely used in door lock display, handheld display, instrument display, medical equipment display, household appliance display, industrial equipment display, etc.


3.2" inch TFT LCD Display Drawing

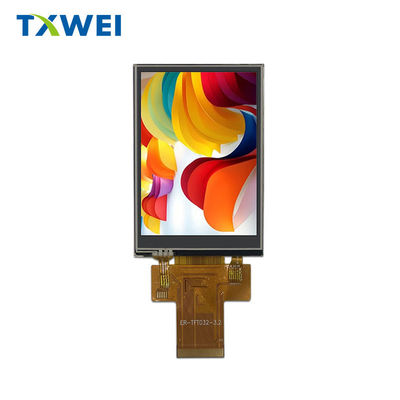

3.2-inch TFT LCD Display Physical Display
