3.5-inch 320 * 240 Outdoor High Brightness Device Display 1000nits RGB Interface

Product Description:

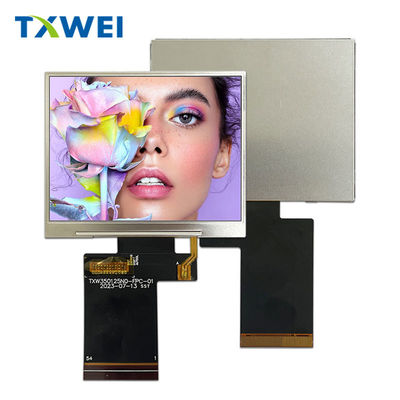

1. TXW350125N0 is a 3.5-inch 4:3 ratio full-color TFT LCD display with a resolution of up to 320 * 240, IPS full view high-definition high brightness car standard, working temperature: -30+85, storage temperature -40+90, display brightness of 1000cd/m².
2. This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.
3. This product is widely used in outdoor high brightness equipment display, engineering vehicle instrument display, lawn mower display, motorcycle instrument display, refrigeration monitoring equipment display, access control and security display, medical equipment display, etc.
4. The Mechanical Outline Size of this 3.5 Inch LCD Screen measures 76.66*63.62*3.25 which makes it compact and easy to integrate into your device. The size is perfect for applications such as wearable devices, portable medical equipment or remote control devices.
5. This 3.5 Inch LCD Screen features a 60mA backlight current, which ensures that the screen is bright enough to provide clear visibility even in low light conditions. The Active area of the screen spans 70.08*52.56 which provides ample viewing space for various applications.
6. Another key feature of this 3.5 Inch LCD Screen is its 18V backlight voltage, which ensures optimal performance and reliability. This voltage is carefully optimized to deliver maximum brightness and contrast, resulting in sharp, vivid images that are easy to read and view.
7. Overall, our 3.5 Inch LCD Screen is a top-quality display panel that delivers impressive performance and reliability. Its compact size, high-quality color rendering, and robust backlighting make it ideal for a wide range of applications, from portable medical equipment to remote control devices. Get your hands on this amazing product today and experience the best in LCD display technology!

Features:

• Product Name: 3.5 Inch LCD Display
• Storage Temperature: -40+90
• Drive Element: TFT Active Matrix
• Model Number: TXW350125N0
• Viewing Direction: ALL O’CLOCK
• Pixel Pitch (W*H): 0.073*0.219

Technical Parameters:

Support and Services:

Our 3.5 inch LCD product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction.

Our dedicated technical support team is available to assist with any troubleshooting or issues that may arise during installation or use of the product.

We also offer ongoing software updates and firmware upgrades to ensure that the product is always up-to-date and functioning at its best.

In addition, we provide repair and maintenance services to address any hardware issues and extend the lifespan of the product.

Our goal is to provide top-notch support and services to our customers, allowing them to get the most out of our 3.5 inch LCD product.

Applications:

• With a minimum order quantity and price that can be negotiated, the TXWEI 3.5 Inch LCD Screen is an affordable and versatile solution for a wide range of industries and projects. The module is packaged in a cardboard box and has a delivery time of 16 days, while payment can be made through L/C, TT, or D/P. With a supply ability of 10,000pcs, the TXWEI 3.5 Inch LCD Module is a reliable choice for large-scale projects.
• The TXWEI 3.5Inch LCD Screen is designed to operate in a wide range of temperatures, with a storage temperature of -40+90 degrees Celsius. The LCM pin n count is 54pin, while the pixel pitch (W*H) is 0.073*0.219. The drive element for the screen is a TFT Active Matrix, which provides a high level of reliability and performance. The backlight current is 60mA, which ensures that the screen is bright and easy to read in a range of lighting conditions.
• The TXWEI 3.5 Inch LCD Module is suitable for a range of different applications and scenarios. It can be used in the automotive industry, for example, as a display for car stereos or GPS systems. It is also ideal for use in medical devices, where a clear and reliable display is essential. The screen can be used in industrial applications, such as for displaying data in manufacturing plants or on assembly lines. It is also suitable for use in consumer electronics, such as digital cameras or portable gaming devices.
• Overall, the TXWEI 3.5 Inch LCD Touchscreen Module is a versatile and reliable LCD screen that is suitable for a wide range of applications and scenarios. With its high-quality construction, certification, and range of features, it is an excellent choice for anyone looking for a reliable and affordable LCD module.
