2-inc LCD Display Screen 240 * 320 With SPI Interface 600nits

2-inc LCD Display Screen 240 * 320 With SPI Interface 600nits

MOQ: 1
Standard Packaging: cardboard
Delivery Period: 16
Supply Capacity: 10000pcs
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW200055S0
Lumens Degrees:
600cd/m²
Backlight Current:
60mA
Storage temperature:
-30+80
LCM Driver IC:
ST7789V
LCM Interface:
SPI 4 BIT Interface
Mechanical OutlineSize(W*H*T):
34.6*47.83*2.1
Size:
2.0
Operating temperature:
-20+70
Highlight:

600nits LCD display screen

,

240 * 320 LCD display screen

Product Description

Product Description:

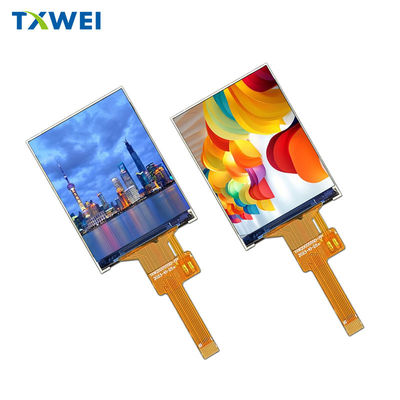

TXW200055S0 is a 2-inch full-color TFT IPS LCD display screen with a resolution of 240 * 320, IPS full view high-definition high brightness display effect, wide temperature range of -20+70 working temperature, and brightness of 600cd/m ².



This product is independently designed, developed and produced by Shenzhen Tianxianwei Technology Co., Ltd., providing professional full process technical support services, first-class production quality control, and professional after-sales service guarantee.



The active area of the TFT LCD Display is 30.6(H) *40.8 (V), which is perfect for displaying important information or images. The screen has a high luminance level of 600cd/m², which makes it easy to view even in bright environments. The operating temperature of the display ranges from -20 to +70 degrees Celsius, making it suitable for use in a variety of environments.



This product is widely used in electric vehicle instruments, handheld PDAs, medical equipment, automotive electronics, home appliances, driving recorders, children's cameras, sports DV, etc.



In summary, the TFT LCD Display is a versatile and reliable product that can be used for a variety of applications. With its pin count of 10PIN, high luminance level, and wide operating temperature range, it is well-suited for use with Arduino boards, HDMI devices, and Elevator TFT LCD Display. The active area of the display is perfect for displaying important information, and its backlight current of 60mA provides a bright and clear view of the content displayed on the screen.

Features:

  • Product Name: TFT LCD Display
  • Size: 2.0 inches
  • Backlight Current: 60mA
  • Mechanical Outline Size(W*H*T): 34.6*47.83*2.1 mm
  • Lumens Degrees: 600cd/m²
  • Backlight Voltage: 2.8-3.3V
  • High Brightness TFT Display
  • Arduino TFT LCD Display
  • Can be used as a Car TFT LCD Monitor

Technical Parameters:

Product Technical Parameters
Model Number TXW200055S0
LCM Driver IC ST7789V
LCM Interface SPI 4 BIT Interface
Backlight Voltage 2.8-3.3V
Backlight Current 60mA
Lcm Pin N Count 10PIN
Size 2.0 inches
Operating Temperature -20°C to +70°C
Lumens Degrees 600cd/m²
Storage Temperature -30°C to +80°C

Support and Services:

Our TFT LCD Display product technical support and services include:

  • Assistance with installation and setup
  • Troubleshooting and diagnosis of issues
  • Repair and maintenance services
  • Technical documentation and resources
  • Software and firmware updates
  • Customization and integration services
  • 24/7 customer support

We are committed to providing exceptional technical support and services to ensure our TFT LCD Display product meets your needs and expectations.

Applications:

  1. This display is compatible with Arduino and can be used for various projects that require a small-sized display. Its SPI 4 BIT Interface makes it easy to connect with other devices. It can display high-quality images and videos, making it suitable for applications like gaming, multimedia, and digital signage. It has a mechanical outline size of 34.6*47.83*2.1 making it easy to integrate with other devices.
  2. The TXW200055S0 TFT LCD Display is also suitable for industrial applications where high brightness and clarity are required. It has a luminance degree of 600cd/m², making it suitable for outdoor applications like digital billboards, scoreboards, and information displays. Its operating temperature range of -20+70 makes it suitable for various environmental conditions.
  3. The display comes with cardboard packaging and has a minimum order quantity of 1. The delivery time is 16 days, and the supply ability is 10000pcs. This makes it suitable for both small and large-scale projects.
  4. In conclusion, TXWEI's TXW200055S0 TFT LCD Display is a versatile product that can be used for various applications. Its compatibility with Arduino and SPI 4 BIT Interface makes it easy to integrate with other devices. It can be used for gaming, multimedia, digital signage, industrial, and outdoor applications like digital billboards. It is a high-quality product with a luminance degree of 600cd/m² and an operating temperature range of -20+70. Its packaging, delivery time, and supply ability make it suitable for both small and large-scale projects.
