2.4-inch 240 * 320 Medical Instrument Display With 450nits And RGB Interface

Product Description:

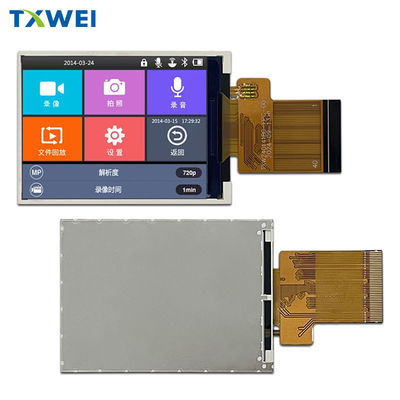

TXW240141B0 is a 2.4-inch full-color TFT LCD display screen with a resolution of 240 * 320, IPS full view high-definition high brightness display, wide temperature range of -20+70 working temperature, and brightness of 450cd/m².

This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.

This product is widely used in music effects, driving recorders, E-bike car instruments, intelligent robots, medical instruments, automotive intelligent interconnection, handheld PDAs, outdoor sunlight visibility and other products.

The Mechanical Outline Size of this display is 42.72*60.26*2.2mm, making it compact and easy to integrate into any device or system. It is a versatile display that can be used in a variety of applications, including as a Car TFT LCD Monitor or for any other display needs.

The display has a high brightness of 450cd/m², providing a clear and vibrant image that is easy to see even in bright lighting conditions. Whether you're using it for work or entertainment, the HDMI TFT LCD Display is sure to meet your needs.

Features:

• Product Name: TFT LCD Display
• Model Number: TXW240141B0
• Operating Temperature: -20+70
• Storage Temperature: -30+80
• Backlight Voltage: 3.2v
• Backlight Current: 40mA
• Ideal for use as a Car TFT LCD Monitor
• Compatible with Arduino TFT LCD Display

Technical Parameters:

Applications:

The product is suitable for use in various scenarios, including:

• Car TFT LCD Monitor: This product can be used as a display screen in a car monitor, providing a clear and vibrant image to the passengers. Its high-brightness TFT display can make sure that the image is visible even in direct sunlight.
• Arduino TFT LCD Display: The TXWEI TXW240141B0 TFT LCD display is compatible with Arduino boards, making it easy to integrate into any project that requires a high-quality display screen. It can be used to display data, images, and videos.

The product features an RGB 18 BIT Interface, with a resolution of 240*320 pixels, making it ideal for displaying high-resolution images and videos. Its operating temperature ranges from -20 to +70 degrees, making it suitable for use in various environments. The product has 40PIN Lcm pin n count and requires 3.2v backligh voltage.

The product comes with a minimum order quantity of 1 and is packed in cardboard. The delivery time is 16 days, and the supply ability is 10000pcs.

Customization:

The active area of the display is 36.72*48.96 and it has a resolution of 240*320 pixels. Our HDMI TFT LCD Display has an operating temperature of -20+70 and a backlight current of 40mA. The Lumens degrees of our product are 450cd/m².

Support and Services:

Our TFT LCD Display product comes with comprehensive technical support and services to ensure our customers have a seamless experience with our product. Our technical support team is available to provide assistance with installation, configuration, and troubleshooting. Additionally, we offer repair and maintenance services to ensure the longevity and optimal performance of our product. Our team of experts is dedicated to providing timely and effective solutions to any issues that may arise.
