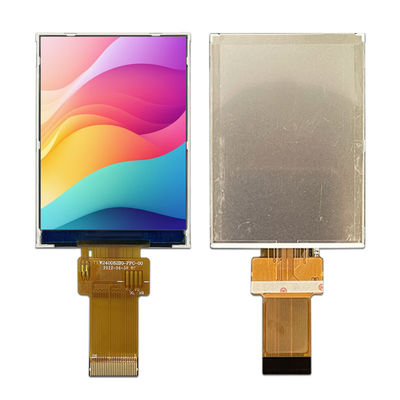

2.4-inch 240 * 320 LCD Display Screen 350nits 26 Pin With MCU Interface

Product Description:

1. TXW240082B0 is a 2.4-inch full-color TFT LCD display screen with a resolution of 240 * 320, IPS full view high-definition high brightness display effect, wide temperature range of -20+70 working temperature, and brightness of 350cd/m².
2. Number of Pixels: With a resolution of 240*320 pixels, this TFT LCD Display delivers sharp and clear images, making it ideal for a variety of applications including gaming, video playback, and image display.
3. Active Area: The active area of this display measures 36.72*48.96mm, providing ample space for displaying graphics, text, and other visual content.
4. LCM Driver IC: The ST7789V LCM Driver IC is used in this TFT LCD Display, ensuring smooth and reliable performance. This driver IC is known for its low power consumption and high refresh rate.
5. Lcm Pin N Count: The TFT LCD Display features 26PIN Lcm Pin N Count, making it easy to integrate into a range of different projects and applications.
6. Storage Temperature: With a storage temperature range of -30+80°C, this display is designed to withstand extreme temperatures, making it suitable for use in a wide range of environments.
7. This product is widely used in driving recorders, dashboard of two wheeled vehicles, intelligent robots, medical instruments, automotive intelligent interconnection, handheld PDAs, household appliances, musical instruments and other products.
8. Overall, the TFT LCD Display is a versatile and high-performing display that is suitable for a wide range of applications. Whether you're building an HDMI TFT LCD Display, an Arduino TFT LCD Display, or a Car TFT LCD Monitor, this display is sure to deliver the performance and reliability you need.

Features:

• Product Name: TFT LCD Display
• Number of pixels: 240*320
• Lumens degrees: 350cd/m²
• Size: 2.4"
• Model Number: TXW240082B0
• Mechanical OutlineSize(W*H*T): 42.72*58.65*2.35mm
• High Brightness TFT Display
• Car TFT LCD Monitor
• High Brightness TFT Display

Technical Parameters:

This TFT LCD Display product with Model Number TXW240082B0 has a size of 2.4 inches and a number of pixels of 240x320.

It has a backlight voltage of 2.8-3.3v, backlight current of 80mA, and lumens degrees of 350cd/m².

The operating temperature range is -20°C to +70°C and the storage temperature range is -30°C to +80°C.

It has 26 Lcm pin n count and a Mechanical Outline Size of 42.72mm x 58.65mm x 2.35mm.

This product can be used for various applications such as

• driving recorders
• dashboard of two wheeled vehicles
• intelligent robots
• medical instruments
• automotive intelligent interconnection
• handheld PDAs
• household appliances
• musical instruments and other products.

Applications:

1. The TXW240082B0 model is a versatile product that can be used in various applications. One of the most common applications is in the field of HDMI TFT LCD Display. This product can be used to display high-quality images and videos with a resolution of 240 x 320 pixels. Its Lumens degrees value is 350cd/m², which ensures that the display is bright enough to be viewed in different lighting conditions.
2. Another popular application for the TXW240082B0 model is in the field of Arduino TFT LCD Display. Its Mechanical Outline Size is 42.72*58.65*2.35mm, making it compact enough to be used in smaller devices. It has a 26PIN Lcm pin n count and can operate at an operating temperature of -20+70 degrees Celsius.
3. The LCM interface of the TXW240082B0 model is MCU 8/SPI4 BIT Interface, which makes it easy to integrate into different systems. Its high brightness and compact size make it a perfect choice for applications where space is limited, and bright displays are required.

Customization:

This HDMI TFT LCD Display is perfect for use as a car TFT LCD monitor or as an Arduino TFT LCD Display. The LCM pin n count is 26PIN and the LCM interface is MCU 8/SPI4 BIT Interface. The display size is 2.4 inches and has a lumens degree of 350cd/m². The backlight current is 80mA, ensuring a clear and bright display.

Support and Services:

Our TFT LCD Display product technical support and services include:

• Assistance with product installation and setup
• Troubleshooting and diagnosis of product issues
• Regular software and firmware updates to ensure optimal performance
• Repair and replacement services for defective products
• Customization options to meet specific user needs
• 24/7 technical support through our online portalPacking and Shipping:
