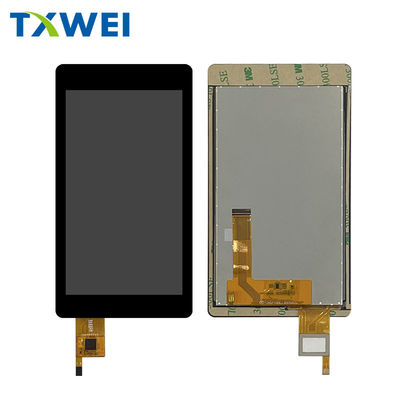

5-inch IPS LCD Display Screen High-definition 720 * 1280 TFT Color Screen With Touch

Product Description:

1. The TFT LCD display boasts a high lumens degree of 350cd/m², providing excellent visual clarity and sharpness. This makes it perfect for displaying intricate graphics, images, and text with high precision. With a backlight current of 40mA, this TFT LCD module delivers optimal brightness and contrast, making it perfect for use in different lighting conditions.
2. This product is widely used in payment devices, monitoring device displays, access control attendance devices, security devices, handheld devices, children's education display panels, etc.
3. The LCM Driver IC used in this TFT LCD module is the JD9365DA, which is highly efficient and reliable. It ensures stable and smooth operation of the TFT LCD display, guaranteeing a seamless user experience. Moreover, this LCM Driver IC is compatible with different systems and devices, making it highly versatile and flexible.
4. This TFT LCD module also features a large operating temperature range of -20+70℃, making it suitable for use in extreme temperatures. Whether it's a hot summer day or a chilly winter night, this TFT LCD module can withstand different temperature conditions without compromising its performance and durability.
5. The LCD type used in this TFT LCD module is normally black, which provides excellent contrast and color saturation. This ensures that the images and text displayed on the TFT LCD display are vivid and clear, making it easy to read and understand.
6. In summary, our TFT LCD Module is a high-quality display that offers exceptional performance, versatility, and durability. With its 7 inch touch TFT LCD display, high lumens degree, efficient LCM Driver IC, large operating temperature range, and normally black LCD type, this TFT LCD module is the perfect solution for your industrial automation, medical equipment, transportation equipment, and other display needs.

Features:

• Product Name: TFT LCD Module
• Model Number: TXW500173B0-CTP
• Operating Temperature: -20+70℃
• LCM Driver IC: JD9365DA
• Drive Element: TFT Active Matrix
• Mechanical Outline Size(W*H*T): 73.55*136.8*2.95
• Features:
  • High-quality TFT LCD panel
  • Clear and bright TFT LCD screen
  • Custom TFT display available upon request
  • Wide operating temperature range
  • Reliable LCM driver IC JD9365DA
  • Thin and lightweight mechanical outline size

Technical Parameters:

This is a technical specification for a TFT LCD module with a model number of TXW500173B0-CTP. The module has a 40-pin LCM pin n count and a size of 5.0 inches. It is a custom TFT display with a normally black LCD type and a TFT Active Matrix drive element. The mechanical outline size is 73.55 x 136.8 x 2.95 mm, with a pixel pitch of 0.08625 x 0.08625 mm. The operating temperature range is -20 to +70℃, and the module has an active area of 62.1 x 110.4 mm. The module has a luminance of 350cd/m².

Applications:

The TXW500173B0-CTP model is a custom TFT display that features an LVDS BIT Interface and an operating temperature range of -20 to +70℃. It has a pixel pitch of 0.08625x0.08625 and an active area of 62.1(H)x110.4(V), making it suitable for a variety of applications.

The TXW500173B0-CTP TFT LCD Panel is a versatile product that can be used in many different scenarios. Some of the most common applications include:

• Industrial machinery and equipment: This product is perfect for use in industrial applications where a high-quality display is required. The rugged design and wide operating temperature range make it ideal for use in harsh environments.
• Medical equipment: The TXW500173B0-CTP TFT LCD Panel is also widely used in medical equipment due to its high-resolution display and accuracy. It can be used in a variety of medical devices, including patient monitors, ultrasound machines, and more.
• Gaming and entertainment: This product is also popular in the gaming and entertainment industry, where a high-quality display is essential for an immersive experience. The wide viewing angle and high contrast ratio make it an ideal choice for gaming consoles, slot machines, and more.

The TXW500173B0-CTP TFT LCD Panel is certified by CE ROHS FCC, ensuring that it meets the highest standards for quality and safety. The minimum order quantity and price can be negotiated, and the packaging details include cardboard for safe transport. The delivery time is 16 days, and payment terms include L/C, TT, and D/P. TXWEI has a supply ability of 10000pcs, ensuring that customers can get the products they need when they need them.

Overall, the TXW500173B0-CTP TFT LCD Panel is a versatile and reliable product that is suitable for a wide range of applications. Whether you're looking for a high-quality display for industrial machinery, medical equipment, or gaming consoles, this product is a great choice.

Customization:

Our product is CE, ROHS, and FCC certified and has a minimum order quantity and price that can be negotiated. The packaging details include cardboard and the delivery time is 16 days. We accept various payment terms such as L/C, TT, and D/P. Our supply ability is 10000pcs.

Support and Services:

Our TFT LCD Module product comes with technical support and services to ensure optimal performance and functionality. Our team of experts is available to provide assistance with installation, troubleshooting, and maintenance of the product. We offer timely software updates and necessary firmware upgrades to keep the product up-to-date with the latest technological advancements. Our technical support team is also available to answer any questions you may have regarding the product features and specifications. Additionally, we provide training and educational resources to help you better understand and utilize the capabilities of the TFT LCD Module product.
