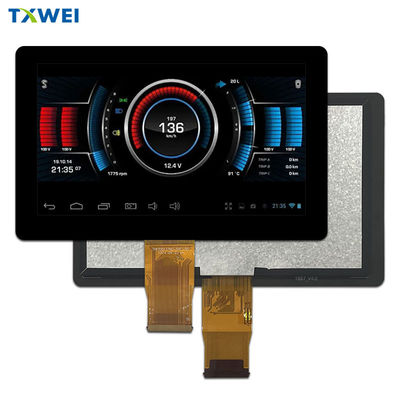

HX8282A11 TFT LCD Module LVDS Interface 7 Inch LCD Display 1024*600

Product Description:

1. TXW700137N0-CT is a 7-inch 16:9 ratio full-color TFT LCD display screen with a resolution of 1024 * 600, IPS full view high-definition high brightness display effect, wide temperature range of -30+85 working temperature, and high brightness display of 1000cd/m ².
2. This product is widely used in fields such as motorcycle instruments, car navigation, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, human-machine interfaces, etc
3. The 7 Inch LCD Module Screen features a pixel pitch of 0.1506*0.1432 (W*H), which ensures high-quality display and clear images. The Backlight of this LCD monitor has a current of 180mA and comes with 32pcs of LED lights. These features make it an excellent choice for use in various applications, including gaming monitors, medical equipment, industrial automation, and automotive displays.
4. Our 7 Inch TFT LCD Monitor comes with a high-quality display that delivers a resolution of 1024*600 pixels, making it perfect for displaying high-quality images and videos. With its sleek design and compact size, it is easy to install and use, and it provides excellent compatibility with various devices.
5. In summary, our 7Inch TFT LCD Monitor is a reliable and efficient solution for all your display needs. With its high-quality display, compact size, and excellent compatibility, it is a perfect choice for various applications. Order yours today and experience the convenience and flexibility of our 7-Inch Thin Film Transistor LCD Panel.

Features:

• Product Name: 7 Inch LCD Module
• Lumens degrees: 1000cd/m²
• LCM interface: LVDS Bit Interface
• Operating temperature: -30+85
• LCM Driver IC: HX8282A11
• Mechanical OutlineSize(W*H*T): 179.34*109.89*7.3

Introducing the 7 Inch LCD Module Screen, a high-quality display with a brightness of 1000cd/m². The LVDS Bit Interface allows for fast data transfer, and the LCM Driver IC HX8282A11 ensures smooth operation. With an operating temperature range of -30+85, this Seven Inch TFT LCD Monitor is suitable for a wide variety of applications. The Mechanical OutlineSize(W*H*T) of 179.34*109.89*7.3 makes it compact and easy to integrate into your project.

Technical Parameters:

Applications:

• One possible use case for this 7-Inch Thin Film Transistor LCD Panel is in the automotive industry. It can be used as a display monitor for in-car entertainment systems, GPS navigation systems, and rearview cameras. The 1000cd/m² lumens degrees ensure that the display is bright and easy to see, even in direct sunlight. The LVDS Bit Interface ensures fast and reliable data transfer between the monitor and the car's computer system.
• Another possible application for this product is in the medical industry. The 7 Inch TFT LCD Monitor can be used as a display monitor for medical equipment such as ultrasound machines, patient monitors, and endoscopes. The high resolution of the display, with an active area of 154.21(H) * 85.92(V), ensures that medical professionals can see clear and detailed images of their patients.
• The 7 Inch TFT LCD Monitor is also suitable for use in industrial settings. It can be used as a display monitor for factory equipment such as assembly line machines, robotic arms, and conveyor belts. The robust design of the monitor, coupled with its 32 Backlight leds, ensure that it can withstand harsh industrial conditions and still provide a clear and bright display.
• This product is certified with CE, ROHS, and FCC, ensuring its quality and safety. The minimum order quantity and price are negotiable, and the packaging details are in a cardboard box. The delivery time is 16 days, and payment terms can be made with L/C, TT, or D/P. The supply ability of this product is 10000pcs.

Support and Services:

The 7 Inch LCD Module product comes with technical support and services to ensure that customers have a seamless experience with the product. Our team of experts is available to assist with any technical issues that may arise, including:

• Installation and setup
• Troubleshooting and diagnosis
• Product maintenance

In addition, we offer a range of services to our customers, including:

• Product customization
• Product integration

Our goal is to provide our customers with the highest level of support and service to ensure that they get the most out of their 7 Inch LCD Module product.
