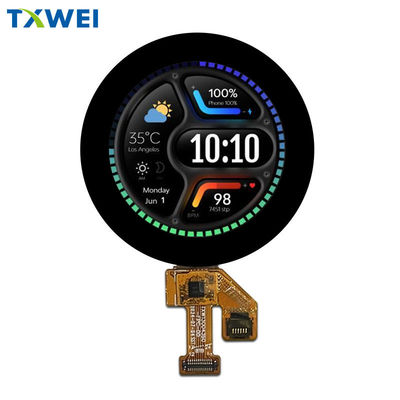

1.3-inch 240x240 Circular LCD Display with SPI Interface Asahi Glass Tempered Glass Cover Material

Product Description:

1. TXW130043S0-TC is a 1.3-inch circular proportional full-color TFT LCD display screen, capacitive touch full lamination display screen, resolution 240 * 240, IPS full view high-definition high brightness display effect, wide temperature -20+70 working temperature, brightness 500cd/m ².
2. This product is independently designed, developed and produced by Shenzhen Tianxianwei Technology Co., Ltd., providing professional full process technical support services, first-class production quality control, and professional after-sales service guarantee.
3. This product is widely used in smart wearables, smart rotary switches, smart water bottles, medical instruments, smart small appliances, and other products.
4. One of the key features of this Round TFT LCD is its LCM interface, which is a SPI 4 Line BIT Interface. This allows for seamless communication between the display and your device, ensuring that you get accurate and reliable data every time. With its RGB Stripe pixel arrangement, you can expect crisp and clear images that are sure to enhance your user experience.
5. The Mechanical OutlineSize of this Round TFT LCD is 44×44×3.09, which provides a compact and sleek design that can fit perfectly into your device. Whether you're working on a smartwatch, a fitness tracker, or any other circular design, this Round TFT LCD is the perfect choice to help bring your vision to life.

Features:

• Product Name: Round TFT LCD
• Storage Temperature: -30+80
• Pixel Pitch (W*H): 0.0975*0.0975
• Drive Element: TFT Active Matrix
• Viewing Direction: ALL O’CLOCK
• IC/LCM Driver IC: GC9A01
• Type: Circular TFT LCD
• Shape: Round

Technical Parameters:

Applications:

• TXWEI's Round TFT Liquid Crystal Display (Model Number: TXW130043S0-TC) is a high-quality display designed for a variety of applications. The Round LCD Display is a perfect solution for applications requiring a circular display screen. The design of the Round TFT Liquid Crystal Display is sleek and modern, making it ideal for use in a wide range of products.
• The Round LCD Display is a versatile product that can be used in a variety of different applications. It is perfect for use in smartwatches, fitness trackers, and other wearable devices. The display is also well-suited for use in medical devices, such as pulse oximeters and blood pressure monitors. With its high luminance of 500cd/m², it is perfect for use in outdoor applications, such as a GPS navigation device or an outdoor smartwatch.
• The Round TFT Liquid Crystal Display is certified by CE, ROHS, and FCC, ensuring that it meets the highest standards for quality and safety. The display is manufactured in Guangdong, China, ensuring that it is made with the highest quality materials and workmanship.
• The Round LCD Display is available in a minimum order quantity that is negotiable, making it perfect for both small and large businesses. The price of the Round TFT Liquid Crystal Display is also negotiable, ensuring that it is affordable for businesses of all sizes. The display is packaged in cardboard, ensuring that it is protected during shipping and handling.
• The Round TFT Liquid Crystal Display has a delivery time of 16 days, ensuring that it is available when you need it. Payment terms for the display include L/C, TT, and D/P, providing flexibility for businesses. With a supply ability of 10,000pcs, TXWEI is able to meet the needs of businesses of all sizes.
• The Round TFT Liquid Crystal Display features a touch driver IC, the CST816T, making it easy to use with touch screen applications. The LCD type is normally black, ensuring that it provides clear, high-quality images. The laminating process is OCA Full Fit, ensuring that the display is durable and long-lasting. The Lcm pin n count is 24pin, making it easy to integrate into a wide range of different products.

Customization:

The Round TFT LCD display is normally black with a storage temperature range of -30+80 degrees Celsius and a backlight current of 40mA. The Pixel Pitch (W*H) is 0.0975*0.0975 and the Mechanical Outline Size (W*H*T) is 44×44×3.09.

Customization services are available for the Round Liquid Crystal Display. Contact us for more information.

Support and Services:

Our Round TFT LCD product comes with comprehensive technical support and services to ensure that our customers have a smooth and hassle-free experience. Our support team is available to answer any technical questions you may have and provide assistance with installation, configuration, and troubleshooting. We also offer repair and replacement services for any defective products. In addition, we provide software development services to help you integrate our product with your system. Contact us for more information on our technical support and services.
