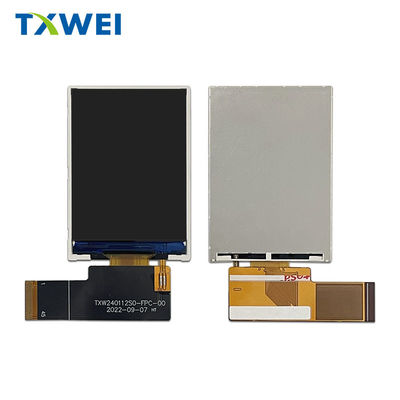

China Factory 2.4" Inch QVGA Lcd TFT Display240x320 Screen
2.4" Inch QVGA ST7789T3-G4 TFT LCD
Tian Xianwei TXW240112S1 is a 2.4”inch TN type TFT LCD Display with resolution of QVGA 240x320 pixels. It is a very cost-effective LCD module among the same kinds.
| Product: | 2.4 Inch TFT Screen | Resolution: | 240x320 |
|---|---|---|---|
| Touch Screen: | Without Touch Screen (Optional) | Cover Glass Dimension: | To Be Customized |
| Viewing Direction: | 12:00 | Driver IC: |
ST7789T3-G4 |
| Interface: |
SPI/RGB/MCU interface |
Connection: | Plugging (customizable) |
| Pin Number: | 45 Pins | Surface Luminance: | 1500 Cd/m²(nits) |
| LED Lifetime: | 30,000 Hours | Compliance: | CE&FCC & RoHS Compliant |
2.4" inch TFT LCD Display Drawing
Module Function Description
| Pin No. | Symbol | Functional |
| 1 | XR(NC) | NC |
| 2 | YD(NC) | NC |
| 3 | XL(NC) | NC |
| 4 | YU(NC) | NC |
| 5~6 | GND | Power Ground |
| 7~8 | VCI | Power supply 2.8V |
| 9 | IOVCC | Power supply 1.65~3.3V |
| 10 | SDO | Serial data output pin. |
| 11~28 | DB17~DB0 | MCU parallel interface data bus. |
| 29 | DIN(SDA) | Serial data input/output pin. |
| 30 | PCLK | Dot clock signal for RGB interface operation. |
| 31 | DE | Data enable signal for RGB interface operation. |
| 32 | HS | Line synchronous signal for RGB interface operation. |
| 33 | VS | Frame synchronous signal for RGB interface operation. |
| 34 | RD | Read strobe signal. |
| 35 | WR(SPI-RS) | Write strobe signal. |
| 36 | RS | Register selection signal. |
| 37 | CS |
Chip selection signal pin. |
| 38 | RESET | Reset signal input terminal. Active at ‘L’. |
| 39~41 | IM0~IM2 | The interface mode select |
| 42 | NC | NC |
| 43 |
LEDA |
Power supply for backlight anode input terminal. |
| 44 | NC | NC |
| 45 | LEDK | Power supply for backlight cathode input terminal. |
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with 6 white LEDs. The characteristics of the back-light are shown in the following tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 16.8 | -- | 19.2 | V | - |
| Forward current | IF | -- | 20 | - | mA | - |
| Luminance(With LCD) | Lv | 1500 | -- | cd/m2 | - | |
| LED life time | N/A | ---- | 30,000 | -- | Hr | Note 1 |
Note:
2.4" inch TFT LCD Display Drawing Real Product Demostration
Factory Facilities and Certificates
