2.8 inch IPS Screen TFT LCD Module Display with ST7789V Driver IC 400cd/m2 Lumens Degrees and 240*320 Number of Pixels

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW280074B0
Number Of Pixels:
240*320
Viewing Direction:
ALL O’CLOCK
Storage temperature:
-30+80℃
Backligh Voltage:
2.8-3.3V
Lumens Degrees:
400cd/m²
Drive Element:
TFT Active Matrix
Size:
2.8 Inch
LCM Interface:
RGB 565 BIT Interface
Highlight:

400cd/m2 TFT LCD Module Display

,

2.8 inch TFT LCD Module Display

,

240*320 TFT LCD Module Display

Product Description















2.8 Inch Medical/Industrial LCD Screen HVGA RGB Interface Product Introduction

The TXW280074B0 LCD touch screen module is a 2.8-inch diagonal HVGA portrait mode 240 * 320 full-color display. This 2.8-inch LCD screen does not come with a touch and can be customized with a touch screen. This 2.8-inch TFT display module supports RGB 565 interface. The module size of TXW280074B0 LCD display is 43.2 * 57.6mm, with an effective area of 50 * 69.2 * 2.4 mm.
The TXW280074B0 LCD display integrates an ST7789V controller on the module, with a logic power supply voltage range of 2.8V to 3.3V. The surface brightness of TXW280074B0 is 400 cd/m ² (nits). If you want to use it as a portrait mode or adjust brightness, please contact us for more technical support. This 2.8-inch medical/industrial grade LCD model has been widely used in music effects devices, handheld PDAs, attendance machines, smart home appliances, 3D printer displays, medical instrument displays, instrument displays, and other products.
Product: 2.8" TFT Touch Screen
Resolution:

240*3RGB(H)X320(V) HVGA
Touch Screen: With Resistive Touch ( PCAP Optional)
Driver IC:

ST7789V
Active area:

43.2*57.6(mm)
Outline Dim.:

50*69.2*2.4(mm)
Cover Glass Dimension: Customizable
Interface:

RGB 565 BIT Interface
Pin Number: 40 Pins (can Be Customized)
Backlight Type: White LED
Viewing Direction:

ALL O’CLOCK
Connection: Plugging (can Be Customized)
Surface Luminance: 400 Cd/m2(nits)
LED Lifetime: 30,000 Hours
Compliance: CE&FCC & RoHS Compliant







Product Drawing



2.8 inch IPS Screen TFT LCD Module Display with ST7789V Driver IC 400cd/m2 Lumens Degrees and 240*320 Number of Pixels 0







2.8 inch IPS Screen TFT LCD Module Display with ST7789V Driver IC 400cd/m2 Lumens Degrees and 240*320 Number of Pixels 1

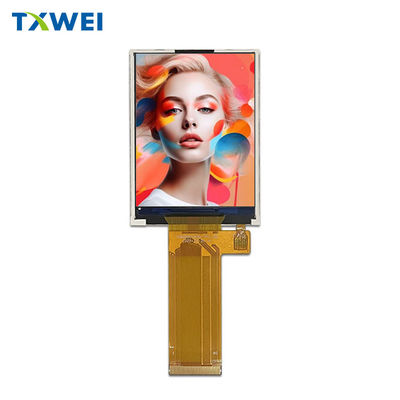

Product Image

2.8 inch IPS Screen TFT LCD Module Display with ST7789V Driver IC 400cd/m2 Lumens Degrees and 240*320 Number of Pixels 2





2.8 inch IPS Screen TFT LCD Module Display with ST7789V Driver IC 400cd/m2 Lumens Degrees and 240*320 Number of Pixels 3

Factory Facilities

2.8 inch IPS Screen TFT LCD Module Display with ST7789V Driver IC 400cd/m2 Lumens Degrees and 240*320 Number of Pixels 4

2.8 inch IPS Screen TFT LCD Module Display with ST7789V Driver IC 400cd/m2 Lumens Degrees and 240*320 Number of Pixels 5





TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line
Tian Xianwei Technology is a global leading Manufacturer of TFT LCD display based China. Tian Xianwei offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96",1.28", 1.77, 2", 2.4", 2.8", 3.2", 3.5", 4.3", 5" 5.6", 5.7", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" 28"and 32" TFT (diagonal size of the active area) and so on. There are more than 200 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.
Tian Xianwei TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. Tian Xianwei TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. Tian Xianwei TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.
