40 Pin 480*640 IPS Medical LCD screen TFT 2.8 Inch With RGB Interface

MOQ: 1
Standard Packaging: cardboard
Delivery Period: 16
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW280075B0
Storage temperature:
-30+80
Viewing Direction:
ALL O’CLOCK
Backlight Current:
20mA
Number Of Pixels:
480*640
Lcm Pin N Count:
40pin
LCM Driver IC:
ST7701S
Pixel Pitch (W*H):
0.090*0.090
LCM Interface:
RGB 16 BIT Interface
Highlight:

40 Pin TFT LCD screen

,

480*640 TFT LCD screen

,

2.8 Inch TFT LCD screen

Product Description





High PPI 2.8" TFT, 2.8 inch RGB TFT LCD 480*640 Dots Product Introduction



Tianxianwei TXW280075B0 is a 2.8-inch full TFT-LCD display with 480 (RGB) X 640 dots (540 horizontal x 1080 vertical pixel array). The power supply voltage (VCC) for driving the LCD panel is 18V and supports RGB 16 BIT interface. It can be used for embedded systems, automation GPS, Medical equipment, industrial equipment, smart homes, and security devices that require high-quality color image TFT displays.

TXW280075B0 is an IPS-LCD type (IPS stands for in-plane switch) TFT with a brightness of 320cd/m ² (typical value). Brightness can be customized. Please contact our sales team for more details. It can operate at temperatures ranging from -20 ℃ to+70 ℃; Its storage temperature range is -30 ℃ to+80 ℃. This product is widely used in police law enforcement equipment display, medical endoscope display, digital camera display, household appliance display and other products

Product: 2.8" Inch IPS TFT LCD Resolution:

480*640Pixels
Viewing Direction: IPS All Viewing Angles Touch Screen: Without, Resistive And PCAP Optional
Cover Lens: Can Be Customized Surface Luminance: 320 Cd/m² ( Customizable)
Interface:

RGB(Customizable)

 Pin Number: 40 Pins
Connection: Connector Type ( Customizable) Driver IC:

ST7701S
Operating Temp.: -20℃ To +70℃ Compliance: CE&FCC & RoHS Compliant

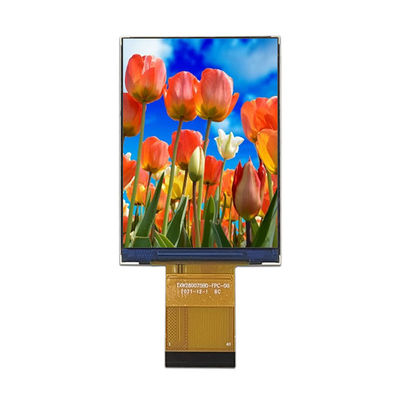

Product Image



40 Pin 480*640 IPS Medical LCD screen TFT 2.8 Inch With RGB Interface 0



40 Pin 480*640 IPS Medical LCD screen TFT 2.8 Inch With RGB Interface 1





40 Pin 480*640 IPS Medical LCD screen TFT 2.8 Inch With RGB Interface 2





TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line



Tian Xianwei Technology is a global leading Manufacturer of TFT LCD display based China. Tian Xianwei offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96",1.28", 1.77, 2", 2.4", 2.8", 3.2", 3.5", 4.3", 5" 5.6", 5.7", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" 28"and 32" TFT (diagonal size of the active area) and so on. There are more than 200 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.





Tian Xianwei TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. Tian Xianwei TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. Tian Xianwei TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.







Search keyword: tft 2.8", 2.8tft lcd, 2.8" tft lcd, 2.8inch tft lcd, tft lcd 2.8, 2.8 tft display, 2.8" tft display, 2.8 inch tft display, tft display 2.8 inch, tft display 2.8", 2.8 inch tft lcd display, 2.8" tft screen,2.8 inch tft screen, tft screen 2.8 inch, tft screen 2.8", 2.8 inch tft lcd screen, 480*640 IPS TFT, 2.8 inch IPS, 2.8 inch 480*640, High PPI LCD
