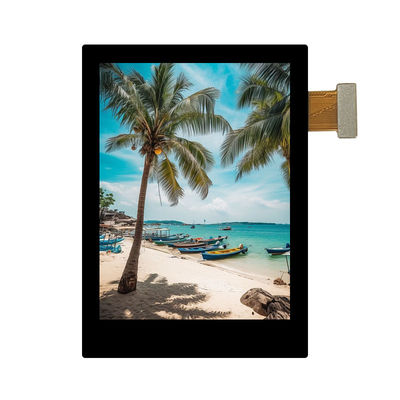

IIC Touch Interface 2.8 Inch TFT LCD Display with 20mA Backlight Current and IPS Capacitive Touch Screen

MOQ: 1
Standard Packaging: cardboard
Delivery Period: 16
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW280086B0-CTP
Viewing Direction:
ALL O’CLOCK
Lcm Pin N Count:
44pin
Backlight Current:
20mA
Number Of Pixels:
480*640
LCM Driver IC:
ST7701S
Active Area:
43.2*57.6
Touch Interface:
IIC
Lumens Degrees:
400cd/m²
Highlight:

2.8 Inch TFT LCD Display

,

IIC Touch TFT LCD Display

Product Description



Touch Screen PCAP TFT Display 2.8" 480*640 RGB 24 BIT Interface 44 Pin


Tianxianwei TXW280086B0-CTP is a 2.8-inch full TFT-LCD display with a resolution of 480 * 640 (480 horizontal by 640 vertical pixel array). This model supports RGB 24 bit interface; The power supply voltage (VCC) for driving the LCD panel is 18V. It can be used for embedded systems, automation GPS, Medical equipment, industrial equipment, and safety devices that require high-quality color image TFT displays.
TXW280086B0-CTP is an IPS-LCD type TFT with a brightness of 400cd/m ² (typical value). The brightness can be customized and it can operate at temperatures ranging from -20 ℃ to+70 ℃; Its storage temperature range is -30 ℃ to+80 ℃.

Product:2.8" Inch IPS TFT Touch ScreenResolution:

480*640Pixels

Viewing Direction:IPS All Viewing AnglesTouch Screen:With PCAP Touch Screen
Interface:

RGB 24 BIT

Pin Number:44 Pins
Connection:PluggingSurface Luminance:400 Cd/m²
Operating Temp.:-20℃ To +70℃Compliance:CE&FCC & RoHS Compliant



2.8 inch IPS TFT PCAP Touch Screen 480*640 Resolution Product Drawing
IIC Touch Interface 2.8 Inch TFT LCD Display with 20mA Backlight Current and IPS Capacitive Touch Screen 0

IIC Touch Interface 2.8 Inch TFT LCD Display with 20mA Backlight Current and IPS Capacitive Touch Screen 1



LCM Pin Descriptions


Pin No.SymbolFunctional
1LEDKPOWER SUPPLY- FOR BACKLIGHT CATHODE
2LEDAPOWER SUPPLY+ FOR BACKLIGHT ANODE
3GNDPower Ground
4IOVCCPower Supply For I/O.
5VCCPower Supply For LCD.
6SDISerial data input pin.
7PCLK

Pixel clock signal in RGB I/F.

8SCLThis pin is used to be serial interface clock
9DEData enable signal in RGB I/F mode 1.
10RESETReset signal input terminal. Active at ‘L’.
11HSYNC

Horizontal sync. Signal in RGB I/F.

12CSA chip select signal
13VSYNCVertical sync. Signal in RGB I/F.
14-21B0-B7RGB interface data bus.
22-29G0-G7RGB interface data bus.
30-37R0-R7RGB interface data bus.
38CTP_VCITouch panel Power supply 2.8~3.3V
39CTP_IOVCCTouch power Supply For I/O.
40CTP_SDATouch panel I2C data
41CTP_SCLTouch panel I2C clock
42CTP_INTTouch panel interrupt output
43CTP_RSTTouch panel reset
44GNDPower Ground





Real Product Demonstration


IIC Touch Interface 2.8 Inch TFT LCD Display with 20mA Backlight Current and IPS Capacitive Touch Screen 2
IIC Touch Interface 2.8 Inch TFT LCD Display with 20mA Backlight Current and IPS Capacitive Touch Screen 3
