| MOQ: | negotiate |
| Price: | negotiate |
| Standard Packaging: | cardboard |
| Delivery Period: | 16 |
| Payment Method: | L/C TT D/P |
| Supply Capacity: | 10000pcs |

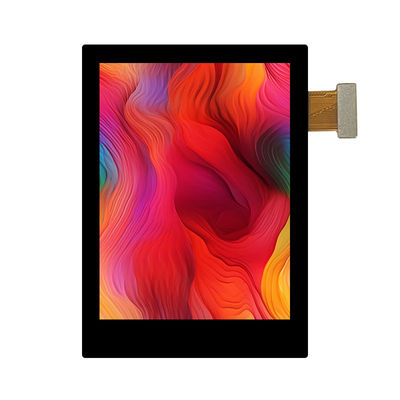

2.8" TFT lcd touch screen 480*640 IPS full viewing angle with CTP and RGB interface
2.8 inch TFT LCD Touch Screen Description
Tianxianwei TXW280086B0-CTP is a diagonal size 2.8”inch shape IPS type TFT LCD Display with resolution 480*640 pixels.
Product Quick Details:
1. LCD Size: 2.8” inch TFT
2. Resolution: 480*640
3. Viewing Angle: Free(80/80/80/80)
4. Outline Dimension: 51.6*71.8*3 mm
5. LCD Driver IC: ST7701S
6. LCD Interface Type: RGB 24 BIT Interface
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Capacitive Touch Screen(CTP)
| Product: | 2.8"inch TFT | Touch Screen: | Capacitive Touch Panel (CTP) |
|---|---|---|---|
| Resolution: |
480*640 |
Viewing Direction: | IPS Full Viewing Angle(80/80/80/80) |
| Driver IC: |
ST7701S |
Pin Number: | 44 Pins |
| Connection: | FPC Type Connection | Surface Luminance: | 400 Cd/m² (nits) |
| Interface: | RGB | LED Lifetime: | 30,000 Hours |
Product Advantages
1. IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2. Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3. High quality level for industrial and medical applications.
4. Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5. Price competitive solution with good quality among the same kinds in the LCD industry.
6. Easy to install and easy to maintain.
2.8 inch TFT lcd touch screen Drawing
Absolute Maximum Rating
| Characteristics | Symbol | Min. | Max. | Unit |
| LCM Operating Temperature | TOPR | -20 | +60 | °C |
| LCM Storage Temperature | TSTG | -30 | +70 | °C |
| TP Operating Temperature & Humidity (20% ~ 90%RH) | TOPR | -20 | +60 | °C |
| TP SStorage Temperature & Humidity (20% ~ 90%RH) | TSTG | -30 | +70 | °C |
| Humidity | RH | -- | 90 | % |
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with 6 white LEDs. The characteristics of the back-light are shown in the following tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 16.8 | -- | 19.2 | V | -- |
| Forward current | IF | -- | 20 | -- | mA | -- |
| Luminance(With LCD+CTP) | Lv | -- | TBD | -- | cd/m2 | -- |
| LED life time | N/A | -- | 30,000 | -- | Hr | Note 1 |
Note:
Real Product Demostration
Search keyword: tft 2.8, tft 2.8", 2.8 tft lcd, 2.8" tft lcd, 2.8" inch tft lcd, tft lcd 2.8, 2.8 tft display, 2.8" tft display, 2.8 inch tft display, tft display 2.8, tft display 2.8", 2.8 inch tft screen, 2.8" tft screen, 2.8 inch tft screen, tft screen 2.8, TFT screen 2.8 inch, TFT screen 2.8", 2.8 inch tft, 2.8" inch TFT lcd, 2.8" inch tft lcd screen, 2.8" tft screen, 2.8” inch tft lcd display, tft lcd display 2.8”
FACTORY AND FACILITIES
Video
Video
Video
Video
|
|
