Customized 2.8" TFT LCD Display Module with SPI/MCU/RGB BIT Interface and 43.2*57.6 Active Area

Products

Customized 2.8" TFT LCD Display Module with SPI/MCU/RGB BIT Interface and 43.2*57.6 Active Area

MOQ:	1
Standard Packaging:	cardboard
Delivery Period:	16
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW280091B0

Active Area:

43.2*57.6

Mechanical OutlineSize(W*H*T):

50*69.2*2.4mm

Lcm Pin N Count:

50pin

Operating temperature:

-20+70

Viewing Direction:

ALL O’CLOCK

LCM Interface:

SPI/MCU/RGB BIT Interface

Number Of Pixels:

240*320

Size:

2.8 INCH

Highlight:

Customized TFT LCD Display Module

SPI TFT LCD Display Module

Product Description

TFT LCD Display Module 2.8" Inch 240x320 RGB MCU SPI Interface With RTP Product Introduction

The TXW280091B0 TFT LCD monitor is a 2.8-inch portrait mode TFT LCD that combines SPI MCU, 8-bit/16 bit/9-bit/18 bit RGB interface. TXW280091B0 TFT LCD display with QVGA resolution of 240x320 pixels. The TFT LCD module is equipped with an ST7789V IC. Its analog power supply voltage (VCC) range is 2.8V to 3.3V, with a typical value of 3.3V. This 2.8-inch TFT LCD display module features an anti glare panel, with a viewing direction of 12 o'clock and a grayscale reversal of 6 o'clock.

The TXW280091B0 TFT module is a portrait mode TFT-LCD with a brightness of 400 nits (typical value). This module can also be used for options without a touch screen, with part number TXW280091B0. The working temperature ranges from -20 ° C to+70 ° C; Its storage temperature range is -30 ° C to+80 ° C. This TFT LCD module can be used in embedded systems, industrial equipment, security and handheld devices that require high-quality and color image display.

Product:	2.8 Inch TFT LCD Display
Resolution:	240*320
Driver IC:	ST7789V
Viewing Direction:	12:00
Pin Number:	50 Pins
Surface Luminance:	400 Cd/m²
LED Lifetime:	30,000 Hours
Touch Screen:	without Touch Panel
Cover Glass Dimension:	Customizable
Interface:	Mcu 8/16/18bit RGB 16/18bit 3/4 LINE SPI
Connection:	Soldering
Compliance:	CE&FCC & RoHS Compliant

TFT LCD Display Module 2.8" Inch 240x320 RGB MCU SPI Interface Product Drawing

Customized 2.8" TFT LCD Display Module with SPI/MCU/RGB BIT Interface and 43.2*57.6 Active Area 0

Customized 2.8" TFT LCD Display Module with SPI/MCU/RGB BIT Interface and 43.2*57.6 Active Area 1

LCM Pin Descriptions

Pin No.	Symbol	Functional
1	GND	Power Ground
2	XR	Touch panel coordinate in the Right
3	YD	Touch panel coordinate in the Down
4	XL	Touch panel coordinate in the Left
5	YU	Touch panel coordinate in the Up
6~7	IOVCC(1.8V)	I/O Voltage (VDDI to DGND): 1.65V ~ 3.3V
8~9	VDD(2.8V)	Power supply 2.5V ~ 3.3V
10	IM2	The MCU interface mode select
11	IM1	The MCU interface mode select
12	IM0	The MCU interface mode select
13	RESET	Reset signal input terminal. Active at ‘L’.
14	CSX	A chip select signal
15	RS/SCL	Data / Command Selection pin.
16	WR/RS	Write strobe signal.
17	RD	Read data at the rising edge.
18	VSYNC	Vertical sync. Signal in RGB I/F.
19	HSYNC	Horizontal sync. Signal in RGB I/F.
20	ENABLE	Data enable signal in RGB I/F mode 1.
21	PCLK	Pixel clock signal in RGB I/F
22	SDA	SPI interface input pin.
23~40	DB0~DB17	RGB interface or MCU parallel interface data bus.
41	SDO	SPI interface output pin.
42	GND	Power Ground
43	LEDA	POWER SUPPLY+ FOR BACKLIGHT ANODE
44~49	LEDK1~LEDK6	POWER SUPPLY- FOR BACKLIGHT CATHODE
50	GND	Power Ground

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 6 white LEDs. The characteristics of the back-light are shown in the following tables.

Characteristics	Symbol	Min.	Type	Max.	Unit	Notes
Forward Voltage	V_F	2.8	-	3.2	V	-
Forward current	I_F	--	120	-	mA	-
Luminance(With LCD)	Lv		TBD	--	cd/m²	-
LED life time	N/A	----	30,000	--	Hr	Note 1

Note:

The “LED life time” is defined as the module brightness decrease to 50% of original brightness at I_L=20mA/LED. The LED life time could be decreased if operating I_L is larger than 25mA/LED.

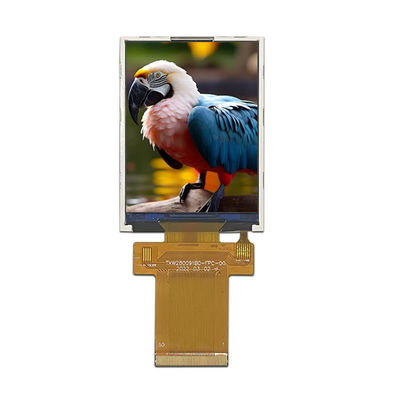

TFT LCD Display Module 2.8" Inch 240x320 RGB MCU SPI Interface Product Images

Customized 2.8" TFT LCD Display Module with SPI/MCU/RGB BIT Interface and 43.2*57.6 Active Area 2

Customized 2.8" TFT LCD Display Module with SPI/MCU/RGB BIT Interface and 43.2*57.6 Active Area 3

Factory Facilities

TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line

Tian Xianwei Technology is a global leading Manufacturer of TFT LCD display based China. Tian Xianwei offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96",1.28", 1.77, 2", 2.4", 2.8", 3.2", 3.5", 4.3", 5" 5.6", 5.7", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" 28"and 32" TFT (diagonal size of the active area) and so on. There are more than 200 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.

Tian Xianwei TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. Tian Xianwei TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. Tian Xianwei TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.

Search keyword: tft 2.8", 2.8 tft lcd, 2.8" tft lcd, 2.8 inch tft lcd, tft lcd 2.8, 2.8 tft display, 2.8" tft display, 2.8 inch tft display, tft display 2.8 inch, tft display 2.8", 2.8 inch tft lcd display, 2.8" tft screen, 2.8 inch tft screen, tft screen 2.8 inch, tft screen 2.8", 2.8 inch tft lcd screen
