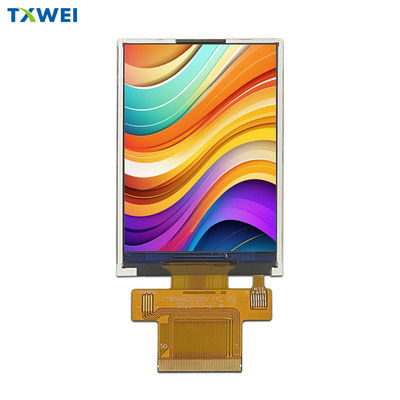

2.8 Inch 40PIN ST7789V 240*320 MCU SPI RGB Interface Tft Lcd Display Module With And 400cd/m2 Lumens Degrees

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW280102B0
Backlight Current:
120mA
Mechanical OutlineSize(W*H*T):
50*69.2*2.3
Lumens Degrees:
400cd/m²
LCM Driver IC:
ST7789V
LCM Interface:
MCU/SPI/RGB BIT Interface
Viewing Direction:
ALL O’CLOCK
Pixel Pitch (W*H):
0.06*0.180
Highlight:

240*320 tft lcd display module

,

2.8 inch tft lcd display module

,

40PIN tft lcd display module

Product Description









2.8" TFT 240*320, TFT LCD 2.8 inch Description

This product is a high PPI resolution display screen with a diagonal size of 2.8 inches and a resolution of 240 * 320. The entire display screen is clearer and more refined. In addition, it adopts IPS full view display technology, making the product suitable for some high-end applications.



The TXW280102B0 TFT LCD module is a 2.8-inch diagonal portrait mode 240 * 320 high-resolution full-color display. The TXW280102B0 LCD module supports MCU/SPI/RGB interfaces. The interface is customizable. The module size of MCU/SPI/RGB models is 50 * 69.2 * 2.3mm, and the active area size is 43.2 * 57.6mm. TXW280102B0 is integrated with ST7789V or equivalent driver IC controller on the module, with a logic power supply voltage range of 2.8V to 3.3V. The surface brightness is 400cd/m ² (Nits). The operating temperature of this model is -20 to 70 degrees Celsius, and the storage temperature is -30 to 80 degrees Celsius.





This model has been widely used in music effects, smart home appliances, 3D printer displays, medical instrument displays, equipment instruments, meters, handheld and other products.





2.8" TFT 240*320, TFT LCD 2.8 inch Drawing



2.8 Inch 40PIN ST7789V 240*320 MCU SPI RGB Interface Tft Lcd Display Module With And 400cd/m2 Lumens Degrees 0





2.8 Inch 40PIN ST7789V 240*320 MCU SPI RGB Interface Tft Lcd Display Module With And 400cd/m2 Lumens Degrees 1



Absolute Maximum Rating



Characteristics

Symbol

Min.

Max.

Unit

LCM Operating Temperature

TOPR

-20

+70

°C

LCM Storage Temperature

TSTG

-30

+80

°C

TP Operating Temperature & Humidity  (20% ~ 90%RH)

TOPR

-20

+70

°C

TP SStorage Temperature & Humidity   (20% ~ 90%RH)

TSTG

-30

+80

°C

Humidity

RH

-

90

%





Back-Light Unit Characeristics





Characteristics

Symbol

Min.

Type

Max.

Unit

Notes

Forward Voltage

VF

2.8

-

3.2

V

-

Forward current

IF

--

120

-

mA

-

Luminance(With LCD+RTP)

Lv



TBD

--

cd/m2

-

LED life time

N/A

----

30,000

--

Hr

Note 1







2.8" TFT 240*320, TFT LCD 2.8 inch Product Image



2.8 Inch 40PIN ST7789V 240*320 MCU SPI RGB Interface Tft Lcd Display Module With And 400cd/m2 Lumens Degrees 2



2.8 Inch 40PIN ST7789V 240*320 MCU SPI RGB Interface Tft Lcd Display Module With And 400cd/m2 Lumens Degrees 3
