2.8" inch TFT LCD QVGA 240x320 ST7789V IC with MCU/SPI/RGB interface TFT LCD display module
Tianxianwei TXW280102B0 is a 2.8-inch TN type TFT LCD display with a resolution of QVGA 240x320 pixels. Among similar products, it is a very cost-effective LCD module.
Product Quick Details:
1. LCD Size: 2.8” inch TFT
2. Resolution: 240x320 QVGA
3. Viewing Angle: 12:00
4. Outline Dimension: 50*69.2*2.3mm
5. LCD Driver IC: ST7789V
6. LCD Interface Type: RGB /MCU/SPI
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Without Touch Screen (Customizable)
| Product: | 2.8"inch TFT LCD | Touch Screen: | Without Touch Screen (Customizable) |
|---|---|---|---|
| Resolution: | 240x320 Dots | Cover Glass Dimension: | Without (Customizable) |
| Viewing Direction: | 12:00 | Interface: |
MCU/SPI/RGB BIT Interface |
| Pin Number: | 40 Pins | Connection: | Plugging (customizable) |
| Surface Luminance: | 400 Cd/m²(nits) | LED Lifetime: | 30,000 Hours |
| Driver IC: | ST7789V | Compliance: | CE&FCC & RoHS Compliant |
2.8" inch TFT LCD Display Drawing
LCM Pin Descriptions
| Pin No. | Symbol | Functional |
| 1 | GND | Power Ground |
| 2 | XR | Touch panel coordinate in the Right |
| 3 | YD | Touch panel coordinate in the Down |
| 4 | XL | Touch panel coordinate in the Left |
| 5 | YU | Touch panel coordinate in the Up |
| 6~7 | IOVCC(1.8V) | I/O Voltage (VDDI to DGND): 1.65V ~ 3.3V |
| 8~9 | VDD(2.8V) | Power supply 2.5V ~ 3.3V |
| 10 | IM2 |
|
| 11 | IM1 | |
| 12 | IM0 | |
| 13 | RESET | Reset signal input terminal. Active at ‘L’. |
| 14 | CSX | A chip select signal |
| 15 | RS/SCL | Register selection signal. |

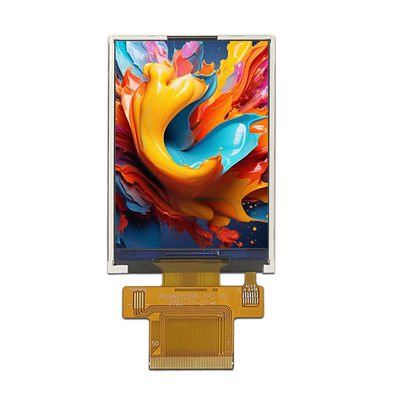

2.8" inch TFT LCD Display Real Product Image
