3.0 Inch IPS All Viewing Angle TFT LCD Display Module 360*640 Resolution 40 Pin MIPI RGB Interface

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW300050S0
Backligh Voltage:
18V
LCM Driver IC:
ST7701S/GC9503V
Viewing Direction:
ALL O’CLOCK
Backlight Current:
20mA
Operating temperature:
-20+70℃
Mechanical OutlineSize(W*H*T):
42.64*74.52*2.15
Drive Element:
TFT Active Matrix
Highlight:

3.0 Inch TFT LCD Display Module

,

40 Pin TFT LCD Display Module

,

360*640 TFT LCD Display Module

Product Description





China Factory 3.0" Inch QVGA Lcd TFT Display ST7701S/GC9503V 360*640 Screen



3.0" Inch QVGA T7701S/GC9503V TFT LCD

Tianxianwei TXW300050S0 is a 3-inch TN type TFT LCD display with a resolution of QVGA 360 * 640 pixels. Among similar products, it is a very cost-effective LCD module.

Product: 3.0 Inch TFT Screen Resolution:

360*640
Touch Screen: Without Touch Screen (Optional) Cover Glass Dimension: To Be Customized
Viewing Direction: 12:00 Driver IC:

RGB 16/MPI

Backlight current:

36.72*65.28

 Connection: Plugging (customizable)
Pin Number: 40 Pins Surface Luminance: 350 Cd/m2(nits)
LED Lifetime: 30,000 Hours Compliance: CE&FCC & RoHS Compliant

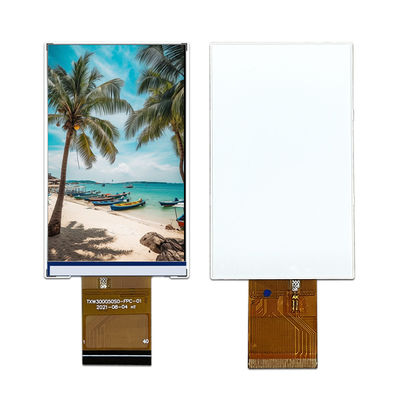

3.0" inch TFT LCD Display Drawing



3.0 Inch IPS All Viewing Angle TFT LCD Display Module 360*640 Resolution 40 Pin MIPI RGB Interface 0

3.0 Inch IPS All Viewing Angle TFT LCD Display Module 360*640 Resolution 40 Pin MIPI RGB Interface 1











Absolute Maximum Rating



Characteristics Symbol Min. Max. Unit
LCM Operating Temperature TOPR -10 +60 °C
LCM Storage Temperature TSTG -20 +70 °C
Humidity RH -- 90

%







Module Function Description



Pin No. Symbol LCM Functional
1 LEDA Power supply for backlight anode input terminal.
2 LEDK Power supply for backlight cathode input terminal.
3 VCC 3.3V Power Supply For LCD.
4 GND Power Ground
5 D0N Negative polarity of low voltage differential data 0 signal
6 D0P Positive polarity of low voltage differential data 0 signal
7 GND Power Ground
8 CLKN Negative polarity of low voltage differential clock signal
9 CLKP Positive polarity of low voltage differential clock signal
10 GND Power Ground
11 D1N Negative polarity of low voltage differential data 1 signal
12 D1P Positive polarity of low voltage differential data 1 signal
13 GND Power Ground
14 VSYNC Vertical (Frame) synchronizing input signal for RGB interface operation.
15 HSYNC Horizontal (Line) synchronizing input signal for RGB interface operation.
16 DOTCLK Dot clock signal for RGB interface operation.
17 DE Data enable signal for RGB interface operation.
18 R0 Red data
19 R1 Red data
20 R2 Red data
21 R3 Red data
22 R4 Red data
23 G0 Green data
24 G1 Green data
25 G2 Green data
26 G3 Green data
27 G4 Green data
28 G5 Green data
29 B0 Blue data
30 B1 Blue data
31 B2 Blue data
32 B3 Blue data
33 B4 Blue data
34 RESET Reset signal input terminal. Active at ‘L’.
35 CS Chip selection signal pin.
36 SCL Serial clock signal.
37 SDA Serial data input/output pin.
38 GND Power Ground
39 VCC 3.3V Power Supply For LCD.
40 VCC 3.3V Power Supply For LCD.







3.0" inch TFT LCD Display Drawing Real Product Demostration



3.0 Inch IPS All Viewing Angle TFT LCD Display Module 360*640 Resolution 40 Pin MIPI RGB Interface 2
