MIPI 3.5 inch TFT LCD, 3.5" 480*800 HVGA LCD Display Description

Tianxianwei TXW350116B0 is a TFT LCD module with a diagonal size of 3.5 inches and a resolution of HVGA 480 * 800 pixels.

Product Quick Details:
1. LCD Size: 3.5” TFT
2. Resolution: 480*800
3. Viewing Angle: 12 O’clock
4. Outline Dimension: 51.32*86.61*3.5 mm
5. Driver IC: ST7701SN
6. Interface Type: MIPI 2 LANE
7. Touch Panel: with or without Resistive Touch Panel optional
8. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C

Product features:

TXW350116B0 is a 3.5-inch diagonal size, 480 * 3RGB (H) X800 (V) full-color TFT LCD display.

This module supports MIPI 2 LANE interface. The module size of TXW350116B0 model is 51.32 * 86.61 * 3.5mm, with an effective area of 45.36 * 75.6mm;

TXW350116B0 and ST7701SN controller are integrated on the module, with a logic power supply voltage range of 19.6V to 22.4V.

Can operate within a temperature range of -20 ℃ to+70 ℃; Its storage temperature range is -30 ℃ to+80 ℃.

TXW350116B0 is a vertical mode LCD module with a brightness of 350cd/m ². If you want to use it as landscape mode or increase brightness, please contact us for more technical support.

This 3.5-inch TFT LCD module is suitable for intelligent robot eyes, handheld PDA devices, access control and security displays, intelligent switch displays, medical equipment displays, household appliance displays, industrial equipment displays, etc.

Product:	3.5" Inch TFT LCD Screen	Touch Screen:	With Or Without Resistive Touch Panel
Resolution:	480*800Dots	Viewing Direction:	12:00
Interface:	MIPI 2 LANE	Pin Number:	24 Pins
Connection:	Plugging (customizable)	Surface Luminance:	350cd/m² (nits)
LED Lifetime:	30,000 Hours	Compliance:	CE&FCC & RoHS Compliant

3.5 inch TFT LCD, 3.5" 480*800 HVGA LCD Display Drawing

24 Pins 3.5" TFT LCD Display 480*800 HVGA With ST7701SN Driver IC MIPI Interface 0

24 Pins 3.5" TFT LCD Display 480*800 HVGA With ST7701SN Driver IC MIPI Interface 1

Module Function Description

Pin No.	Symbol	Description
1	VDD(2.8V)	Analog power supply (VCI):2.5V to 3.3V
2	IOVCC(1.8V)	Analog power supply (VCI):1.65V to 3.3V
3	NC	No Connection.
4	RESET(1.8V)	Reset signal input terminal. Active at ‘L’.
5	TE	Tearing effect output pin is used to synchronize MCU frame writing,
6	NC	No Connection.
7	LEDK	Power supply for backlight cathode input terminal.
8	LEDA	Power supply for backlight anode input terminal.
9	GND	Power Ground
10	D0N	High speed interface data differential signal input/output pins
11	D0P	High speed interface data differential signal input/output pins
12	GND	Power Ground
13	CLKN	High speed interface clock differential signal input pins
14	CLKP	High speed interface clock differential signal input pins
15	GND	Power Ground
16	D1N	High speed interface data differential signal input/output pins
17	D1P	High speed interface data differential signal input/output pins
18	GND	Power Ground
19	NC	No Connection.
20	NC	No Connection.
21	GND	Power Ground
22	NC	No Connection.
23	NC	No Connection.
24	GND	Power Ground

Optical Characteristics

24 Pins 3.5" TFT LCD Display 480*800 HVGA With ST7701SN Driver IC MIPI Interface 2

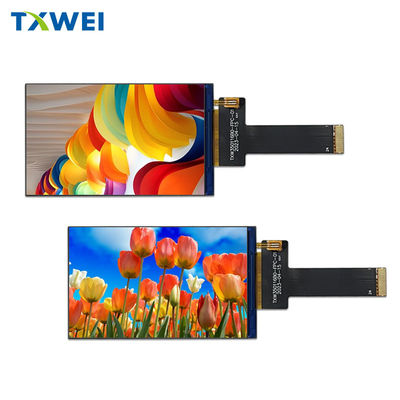

3.5 inch TFT LCD, 3.5" 480*800 HVGA LCD Display Real Product Image
