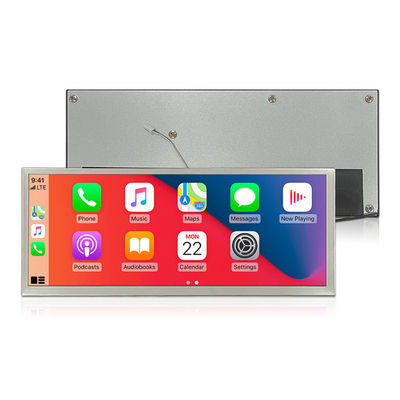

Bar Type 12.3 Inch Ips Screen 1920x720 Lvds Interface 1200nits TFT LCD Display Module Panel

Products

Bar Type 12.3 Inch Ips Screen 1920x720 Lvds Interface 1200nits TFT LCD Display Module Panel

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW123002B0

Number Of Pixels:

1920*720

LCM Interface:

LVDS Interface

Lumens Degrees:

1200cd/m²

Active Area:

292.03*109.51(mm)

Storage temperature:

-30+85

Size:

12.3Inch

Lcm Pin N Count:

40pin

Highlight:

12.3 inch Bar Type TFT

Bar Type TFT LCD Display Module

1200nits Bar Type TFT

Product Description

About this item 12.3 inch TFT LCD TXW123002B0

12.3-inch bar shaped automotive capacitive touch screen TFT LCD display, with a resolution of 1920x720 and LVDS interface, is a display module designed specifically for automotive infotainment systems and high-end in car display applications. The following is a detailed introduction of the product:

Display Technology:
-TFT LCD technology provides high definition and color saturation, ensuring clear image display and true color.
Resolution:
-The resolution of 1920x720, which is 720p high-definition resolution, provides clear visual effects for drivers.
Screen size:
-The 12.3-inch screen size is suitable as the main display screen for in car infotainment systems, providing sufficient display space.
Touchscreen Technology:
-Capacitive touch screen technology supports multi touch and provides a sensitive and precise operating experience.
Interface type:
-LVDS (Low Voltage Differential Signaling) interface supports high-speed data transmission and is suitable for transmitting high-definition video signals.
Application Scenarios:
-Suitable for in car display applications such as dashboard, navigation system, rear seat entertainment system, etc.
Durability:
-Industrial grade design, capable of stable operation over a wide temperature range and adapting to various harsh environments.
Installation method:
-Bar design, suitable for installation on the center console or dashboard of vehicles, saves space while providing a large screen experience.
Brightness:
-High brightness design 1200 nits ensures clear display effects under various lighting conditions.
Anti interference performance:
-Good electromagnetic compatibility, able to maintain stable display performance in complex electromagnetic environments.
Technical Support:
-Provide detailed technical support and customized services to meet specific customer needs.

GeneraI information

Item	specification	unit
OutIine Dimension	3101286.8	mm
DispIay area	292.03*109.51	mm
Number of pixeI	1920 RGB (H) x 720(V)	pixeIs
Interface	LVDS	mm
pixeI arrangement	RGB VerticaI stripe
Pin number	40
DispIay mode	NormaIIy BIack
Viewing direction	IPS	%
Brightness	1200nits
Operating temperature	-30+80	℃
storage temperature	-30+85	℃

Mechanical Outline Drawing

Bar Type 12.3 Inch Ips Screen 1920x720 Lvds Interface 1200nits TFT LCD Display Module Panel 0

Bar Type 12.3 Inch Ips Screen 1920x720 Lvds Interface 1200nits TFT LCD Display Module Panel 1

Absolute Maximum Rating

Characteristics	Symbol	Min.	Max.	Unit
LCM Operating Temperature	T_OPR	-30	+80	°C
LCM Storage Temperature	T_STG	-30	+85	°C
Humidity	RH	-	90	%

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 63 white LEDs. The characteristics of the back-light are shown in the following tables.

Characteristics	Symbol	Min.	Type	Max.	Unit	Notes
Forward Voltage	V_F	26.1	--	29.7	V	-
Forward current	I_F	280	350	420	mA	-
Luminance(With LCD)	Lv	800	1000	1200	cd/m²	-
LED life time	N/A	----	30,000	--	Hr	Note 1

Note:

The “LED life time” is defined as the module brightness decrease to 50% of original brightness at I_L=20mA/LED. The LED life time could be decreased if operating I_L is larger than 25mA/LED.

Product Image

Facilities and Certificates:
